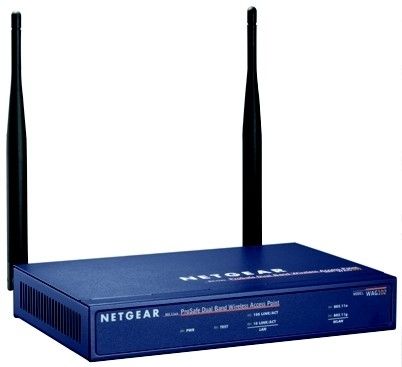

NETGEAR ProSafe Dual-Band 802.11a/g Wireless Access Point 108 Mbit/s Power over Ethernet (PoE)
Brand: NETGEAR · SKU: WAG102NA · MPN: WAG102NA · Category: Networking
NETGEAR ProSafe Dual-Band 802.11a/g Wireless Access Point, 2.4 GHz, 5 GHz, 108 Mbit/s
Specifications
| 5 GHz | Yes |
|---|---|
| Weight | 620 g |
| 2.4 GHz | Yes |
| I/O ports | 1x Ethernet 10/100 1x Power |
| Modulation | DSSS |
| Certification | CE EN 60950-1 (2001), EN 301 489-17 V1.2.1 (2002), EN 301 489-1 V1.4.1 (2002), EN 300 328-1 (2001-12), EN 300 328-2 (2001-12), R&TTE Directive, C-Tick: AS/NZ 3548 Class B |
| Frequency band | 2.4, 5 GHz |
| Number of users | 256 user(s) |
| Cabling technology | 10/100Base-T(X) |
| Dimensions (WxDxH) | 190.5 x 122 x 32 mm |
| Networking features | Wireless LAN, Fast Ethernet |
| Management protocols | SNMP MIB I, MIB II, 802.11 MIB |
| Receiver sensitivity | - 802.11b 2 Mbps -94 dBm 5.5 Mbps -92 dBm 11 Mbps -90 dBm - 802.11g 6 Mbps - 91 dBm 9 Mbps - 91 dBm 12 Mbps - 90 dBm 18 Mbps - 87 dBm 24 Mbps - 85 dBm 36 Mbps - 80 dBm 48 Mbps - 75 dBm 54 Mbps - 70 dBm - 802.11a 6 Mbps - 92 dBm 9 Mbps - 91 dBm 12 Mbps - 90 dBm 18 Mbps - 86 dBm 24 Mbps - 84 dBm 36 Mbps - 79 dBm 48 Mbps - 72 dBm |
| Transmit power range | + 19 dBm |
| MAC address filtering | Yes |
| Antenna connector type | RP-SMA |
| Antenna gain level (max) | 5 dBi |
| Power over Ethernet (PoE) | Yes |
| Maximum data transfer rate | 108 Mbit/s |
| Compliance industry standards | IEEE 802.11a, IEEE 802.11g, IEEE 802.11b, IEEE 802.3af |
| Warranty | 3-Year Warranty |
| Weight | 620 g |
Product Description
NETGEAR's WAG102 Dual Band Wireless Access Point provides a cost effective so-lution for small businesses, delivering secure, reliable, high performance wireless con-nectivity. It supports both 802.11g and 802.11a wireless standards for extensive wire-less coverage; ideal for any organisation facing increasing mobile computing needs. Wireless Connectivity The WAG102 Dual Access Point provides industry-standard access to network-attached corporate resources, email and the Internet. It supports both 5 GHz and 2.4 GHz 54 Mbps radio transmission with up to 108 Mbps in both 802.11g and 802.11a in turbo mode. This business-class Dual Band Wireless AP also supports Wireless Distribution System (WDS) for bridging and repeater modes and can also be config-ured as a bridge and access point simultaneously. Wireless Networking is Secure The WAG102 Dual Band Wireless Access Point comes with the latest security proto-cols, including the highest available wireless security standard, WPA2 Enterprise. 128/152-bit WEP encryption and advanced AES 256-bit encryption ensures the privacy of all wireless communication. 802.1x RADIUS server authentication controls wireless network access and centralises user authorisation across the wireless LAN. The WAG102 also supports MAC authentication with a 256-user Access Control List (ACL) to limit network access to specified users and VPN pass-through for private communi-cations between head office and branches or remote home workers. This names just a few wireless security features available with the WAG102 Dual Band Access Point. Management & Power over Ethernet (PoE) Integrated 802.3af-based Power over Ethernet support means that there is no need to locate the WAG102 close to an electrical power output or trail cables across the floor: Power can be transmitted over the Ethernet network instead. The WAG102 also supports SNMP (Simple Network Management Protocol) and associated network management software (including NETGEAR' ProSafe™ NMS100) to integrate your office wireless LAN with your wired infrastructure. Easy to Set-up & Use The WAG102 Dual Band Wireless Access Point is simple to set-up and use. It is ple-num rated, appropriate for placement above drop-down ceilings and under raised floors. This access point is also equipped with the convenient Smart Wizard™ browser-based interface for quick installation. Key features: - Supports both 802.11g & 802.11a wireless frequencies. - Delivers up to 108 Mbps in turbo mode. - Support for up to 128 simultaneous wireless clients. - Highest level of wireless encryption (WPA2). - Simple Network Management Protocol (SNMP). - 2 detachable 5 dBi antennas (2.4 GHz and 5 GHz). - Power over Ethernet (PoE) for flexible deployment anywhere in the office. - Plenum rated: Approved to position in drop-ceilings & under raised floors.
Key Features
NETGEAR ProSafe Dual-Band 802.11a/g Wireless Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 108 Mbit/s. Power over Ethernet (PoE)
Frequently Asked Questions
Is this product genuine OEM?
Yes, this NETGEAR ProSafe Dual-Band 802.11a/g Wireless Access Point 108 Mbit/s Power over Ethernet (PoE) (WAG102NA) is 100% genuine NETGEAR hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This NETGEAR ProSafe Dual-Band 802.11a/g Wireless Access Point 108 Mbit/s Power over Ethernet (PoE) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the NETGEAR ProSafe Dual-Band 802.11a/g Wireless Access Point 108 Mbit/s Power over Ethernet (PoE) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the WAG102NA.
