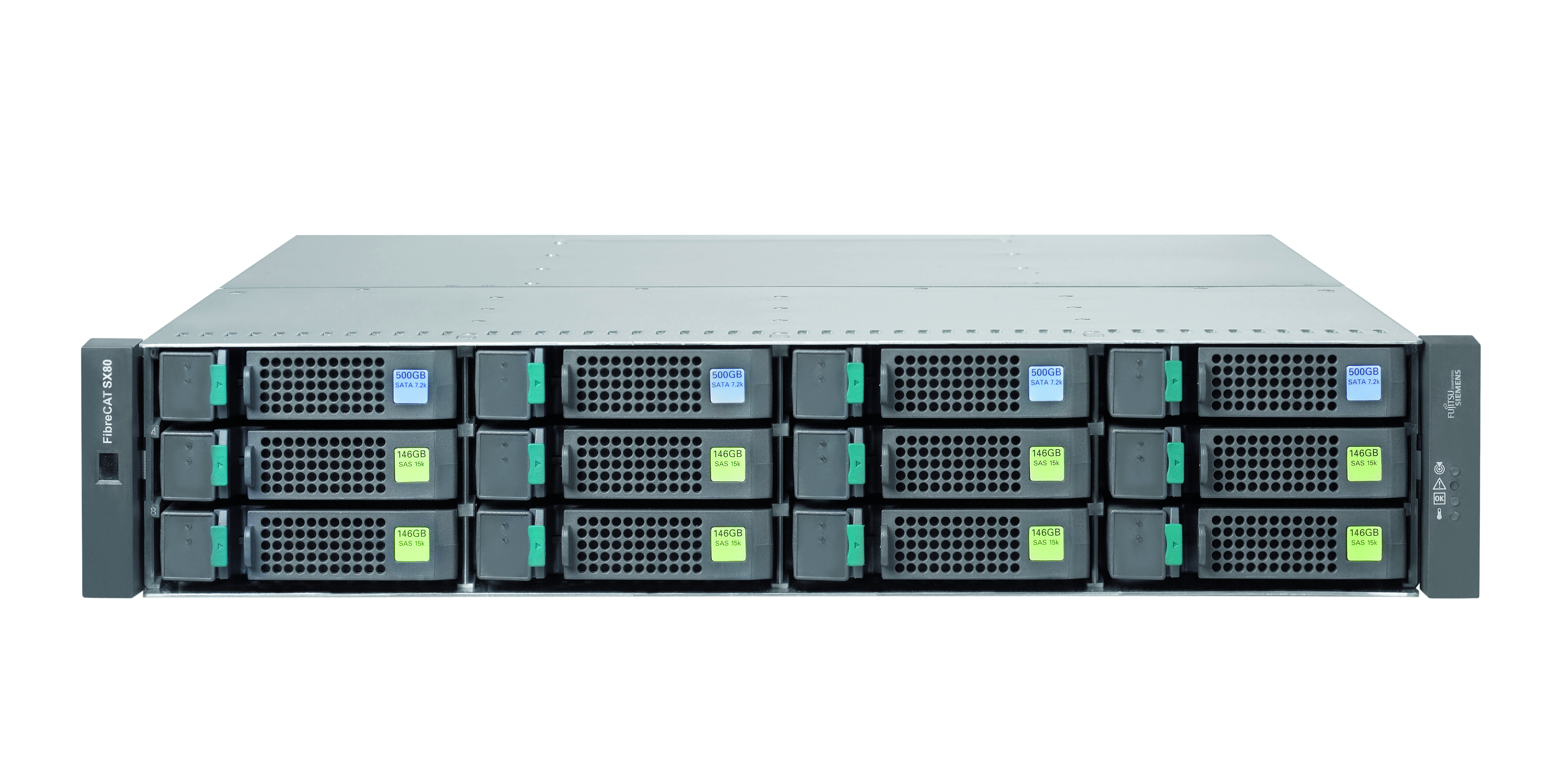

Fujitsu FibreCAT SX80 Rack (2U) 1.2 TB
Brand: Fujitsu · SKU: VFY:SX800XF130IN · MPN: VFY:SX800XF130IN · Category: Components
Fujitsu FibreCAT SX80, Rack (2U), 1.2 TB. Fujitsu FibreCAT SX80 Rack (2U) 1.2 TB (part number VFY:SX800XF130IN) is an enterprise components product available from Server Tech Central. Key specifications include weight 30 kg, i/o ports 1x RS232, raid levels 0, 1, 3, 5, 6, 10, 50, chassis type Rack (2U), dimensions (wxdxh) 57.15 x 44.60 x 8.75 mm, power requirements 115 - 240V@50 - 60Hz, hot-swap drive bays Yes, management protocols SNMP. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Weight | 30 kg |
|---|---|
| I/O ports | 1x RS232 |
| RAID levels | 0, 1, 3, 5, 6, 10, 50 |
| Chassis type | Rack (2U) |
| Certification | cUL, CE, CSA-C22.2, EN 60950-2000, IEC 60950, GS, GOST, GS, CSA (US/C), CB, FCC Part 15 Class B, ICES-003, EN 300-386, EN 55022 Class B, VCCI Class B, AS/NZS 3548 Class B, BMSI Class B, EN 61000-3, EN 61000-3-3, EN 300-386, EN 55024, RoHS, WEEE |
| Dimensions (WxDxH) | 57.15 x 44.60 x 8.75 mm |
| Power requirements | 115 - 240V@50 - 60Hz |
| Hot-swap drive bays | Yes |
| Management protocols | SNMP |
| Storage drive capacity | 300 GB |
| Storage drive interface | Serial Attached SCSI (SAS) |
| Storage temperature (T-T) | -40 - 70 °C |
| Ethernet LAN (RJ-45) ports | 1 |
| Operating temperature (T-T) | 5 - 40 °C |
| Compatible operating systems | Windows 2003R2 (VSS/VDS), Red Hat AS 4.0/5.0, SuSE SLES 9/10, VMware ESX 3.0/3.0.1/3.0.2, SPARC Solaris 9/10 |
| Storage drive average seek time | 4 ms |
| Power supply unit (PSU) capacity | 600 W |
| Total installed storage capacity | 1.2 TB |
| Operating relative humidity (H-H) | 10 - 90% |
| Maximum supported storage capacity | 56 TB |
| Number of storage drives installed | 4 |
| Number of storage drives supported | 56 |
| Warranty | 3-Year Warranty |
| Weight | 30 kg |
Product Description
Enterprise class storage system The FibreCAT SX80 is the perfect system for the data center. It offers up to 42TB of storage capacity with 1-5 enclosures with up to 12 disks each (SATA-II or SAS). The FibreCAT SX80 offers enterprise class reliability as well as snapshot functionality. All this comes at a very affordable price. All critical components (RAID controllers, fans, power supplies, disks) are redundant and can be swapped during operations. FibreCap technology protects the RAID controller cache in case of power failure. The FibreCAT SX80 is a fast storage system. This comes from brand new 4 Gigabit per second Fibre Channel technology, the latest 15k rpm SAS disks, as well as from FibreCache, which uses a high performance interconnect to synchronize RAID controller caches directly. Key features -Redundant and hot swappable RAID controllers, fans and power supplies. -FibreCap capacitor technology. -A vast number of RAID levels. -FibreCache for synchronized RAID controller caches. -4 Gigabit/s Fibre Channel technology. -SATA II and 15K rpm SAS disk drives. -Preloaded management software with intuitive web interface. -Integrated with Microsoft Virtual Disk Services (VDS). -For heterogeneous environments and for PRIMERGY, PRIMEPOWER and PRIMEQUEST. -Perfect for many scenarios. -Build-in snapshots as a standard. -Integration with Windows Volume Copy Shadow Services (VSS).
Key Features
Fujitsu FibreCAT SX80. Chassis type: Rack (2U). Total installed storage capacity: 1.2 TB
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Fujitsu FibreCAT SX80 Rack (2U) 1.2 TB (VFY:SX800XF130IN) is 100% genuine Fujitsu hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Fujitsu FibreCAT SX80 Rack (2U) 1.2 TB includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Fujitsu FibreCAT SX80 Rack (2U) 1.2 TB compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the VFY:SX800XF130IN.
