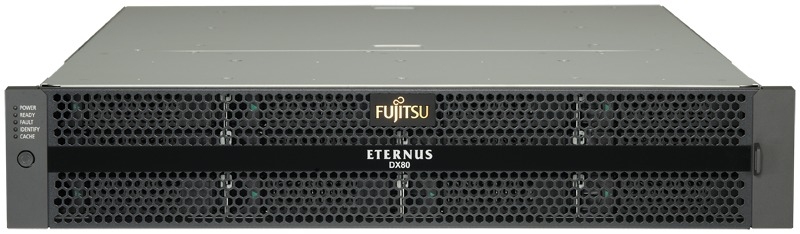

Fujitsu ETERNUS DX Eternus DX80 Rack (2U) 2.250 TB
Brand: Fujitsu · SKU: VFY:DX800XF160IN · MPN: VFY:DX800XF160IN · Category: Components
Fujitsu ETERNUS DX Eternus DX80, Rack (2U), 2.250 TB. Fujitsu ETERNUS DX Eternus DX80 Rack (2U) 2.250 TB (part number VFY:DX800XF160IN) is an enterprise components product available from Server Tech Central. Key specifications include weight 35 kg, hdd speed 7200 RPM, raid levels 0, 1, 1+0, 5, 6, chassis type Rack (2U), cache internal 1024 MB, dimensions (wxdxh) 483 x 650 x 88 mm, power requirements 100-120/200-240V, 50/60Hz, networking features Gigabit Ethernet. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Weight | 35 kg |
|---|---|
| HDD speed | 7200 RPM |
| RAID levels | 0, 1, 1+0, 5, 6 |
| Chassis type | Rack (2U) |
| Certification | UL60950-1, CSA60950-1, EN60950-1, IEC60950-1, GOST, FCC p. 15 A, ICES-003 A, EN55022 A, VCCI A, AS/NZS CISPR22 A, CNS13438(C6357) A, C-Tick, BSMI, EN 55024, CE, RoHS, WEEE |
| Cache internal | 1024 MB |
| Dimensions (WxDxH) | 483 x 650 x 88 mm |
| Power requirements | 100-120/200-240V, 50/60Hz |
| Networking features | Gigabit Ethernet |
| Processor frequency | 1.2 GHz |
| Storage drive capacity | 750 GB |
| Acoustic pressure emissions | 42 dB |
| Operating temperature (T-T) | 5 - 40 °C |
| Power consumption (typical) | 3750 W |
| Total installed storage capacity | 2.250 TB |
| Operating relative humidity (H-H) | 20 - 80% |
| Number of storage drives installed | 3 |
| Number of storage drives supported | 2 |
| Warranty | 3-Year Warranty |
| Weight | 35 kg |
Product Description
The Data Safe With three different base models, ETERNUS DX80 entry level disk storage systems can either connect to hosts via Fibre Channel (with 8 Gbit/s performance option for DX80) , iSCSI or SAS. They are easy to install, configure, operate and maintain, integrating well with host operating systems, servers, network infrastructures and backup solutions. Different drive types can be mixed and matched, secured by the relevant monitored RAID levels (0, 1, 5, 1+0, 5+0 and 6) and features to ensure data integrity. Administrators can dynamically move data, spin disks down to save energy or encrypt disks to prevent unauthorized access. In the event of power outages, the content of the cache is secured to flash memory. A backup copy is always at hand via snapshots and clones. The energy saving storage device can be scaled from 600 GB to 120 TB and is equipped with all state-of-the-art capacities of high-performance SAS and large capacity Nearline SAS disk drives as well as Solid State Drives. The standard system is delivered with 8 snapshots and can be extended to 1,024 snapshots. The ETERNUS DX80 is equiped with either four 4 or 8 Gbit/s Fibre Channel, 1 Gbit/s iSCSI or 3 Gbit/s SAS host ports on two controllers with overall 4 GB cache. The Fibre Channel or iSCSI model can connect up to 128 servers in SAN mode. Reliability: -Cache Protector. -Redundant Copy. -Data Block Guard. -Redundant components. Flexibility: -RAID Migration. -SAS and Nearline SAS disks. -Eco-mode. Innovation: -4 or 8 Gbit/s Fibre Channel, iSCSI or SAS technology. -15,000 rpm SAS, 7,200 rpm Nearline SAS & SSD. -8 to 1,024 snapshots. Ease of use: -Web interface. Versatility: -Multiple usage scenarios. Benefits -Returns the array to high performance mode within minutes following restore. -Reduces recovery times and minimizes the risk of permanent data loss. -Ensures data integrity on the disk and in the cache. -Highest 99.99% availability. -Various service levels depending on the access frequency and importance. -Fulfills all main performance and capacity requirements. -Reduces energy consumption and heat dissipation. -For highest performance. -For improved data protection. -Easy to install and use. -Supports a wide range of applications, operating systems and servers.
Key Features
Fujitsu ETERNUS DX Eternus DX80. Chassis type: Rack (2U). Processor frequency: 1.2 GHz. Total installed storage capacity: 2.250 TB
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Fujitsu ETERNUS DX Eternus DX80 Rack (2U) 2.250 TB (VFY:DX800XF160IN) is 100% genuine Fujitsu hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Fujitsu ETERNUS DX Eternus DX80 Rack (2U) 2.250 TB includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Fujitsu ETERNUS DX Eternus DX80 Rack (2U) 2.250 TB compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the VFY:DX800XF160IN.
