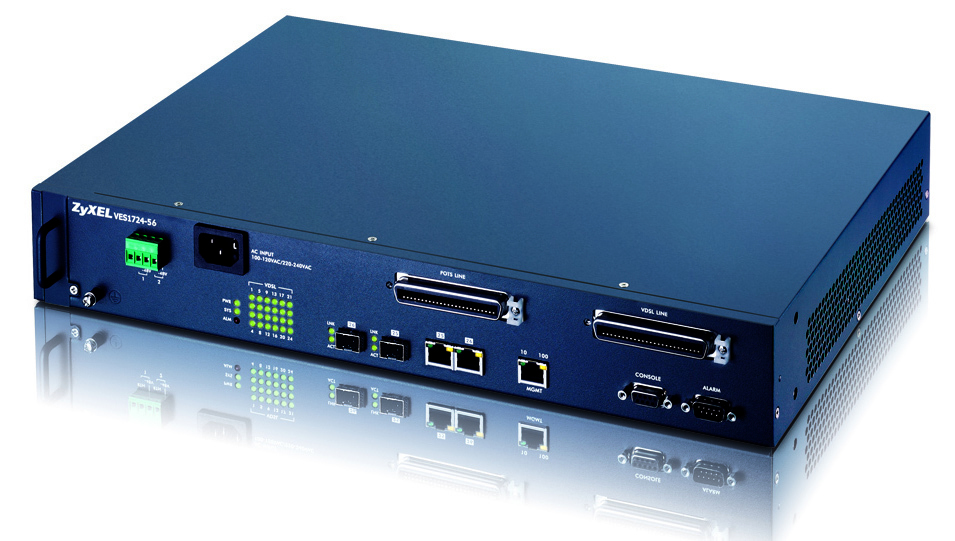

Zyxel VES1724-56 Managed Gigabit Ethernet (10/100/1000) 1U Black
Brand: Zyxel · SKU: VES1724-56-EU01V1F · MPN: VES1724-56-EU01V1F · Category: Components
Zyxel VES1724-56, Managed, Gigabit Ethernet (10/100/1000), Rack mounting, 1U. Zyxel VES1724-56 Managed Gigabit Ethernet (10/100/1000) 1U Black (part number VES1724-56-EU01V1F) is an enterprise components product available from Server Tech Central. Key specifications include depth 250 mm, width 440 mm, height 44.4 mm, safety EN60950-1, CSA60950-1,, weight 4.7 kg, stackable No, 10g support No, form factor 1U. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 250 mm |
|---|---|
| Width | 440 mm |
| Height | 44.4 mm |
| Safety | EN60950-1, CSA60950-1, |
| Weight | 4.7 kg |
| Stackable | No |
| 10G support | No |
| Form factor | 1U |
| MIB support | MIB II, RFC1493, 2674, 1757 MIB, private MIB |
| Switch type | Managed |
| Console port | RJ-45 |
| Certification | FCC Part 15 Class A, EN55022 Class A, ETSI300-386, RoHS, K.20, ETSI300-019 |
| IGMP snooping | Yes |
| Input voltage | -36 - 75 V |
| Package depth | 395 mm |
| Package width | 550 mm |
| Rack mounting | Yes |
| Auto MDI/MDI-X | Yes |
| LED indicators | Yes |
| Number of fans | 3 fan(s) |
| Package height | 175 mm |
| Package weight | 5.3 kg |
| Product colour | Black |
| Power connector | DC-in jack |
| Warranty | 3-Year Warranty |
| Weight | 4.7 kg |
| Dimensions | 440 mm x 250 mm x 44.4 mm |
Product Description
Compact and Full-featured VDSL2 Technology Compliant with ITU-T G.993.2, G994.1 and G.997.1 The VES1724 conforms to G.993.2, G994.1 and G.997.1 to ensure the interoperability with standard-compliant VDSL CPE. Ultra high-speed transmission with 30a profile support The VES1724 supports 30a profile with 100 Mbps in both upstream and downstream traffics. With two Gigabit combo ports to connect upper layer aggregation networks, the VES1724 can support low-concentration interconnection from the subscriber ports to the network interface ports. Triple Play ready The VES1724 supports IGMP snooping to prevent unnecessary forwarding of multicast traffic to all subscribers and thus optimizes bandwidth utilization for multicast applications such as broadcast video. The VES1724 also supports the multicast VLAN feature that distributes the source to all the VLANs requesting the video stream. With a built-in splitter over POTS, the VES1724 allows the operators to provide Triple Play services over the same copper wire. Complete QoS for service differentiation The VES1724 supports not only 802.1X port-based access control for subscriber authentication, but also defines a limited number of MAC addresses that can access the network from a particular port. With rate limiting on the subscriber ports allowing services to take advantage of 64 Kbps increments, service providers will be in a better position to offer tiered services.
Key Features
Zyxel VES1724-56. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4, Console port: RJ-45. MAC address table: 256 entries. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3ad. Power connector: DC-in jack. Rack mounting, Form factor: 1U
