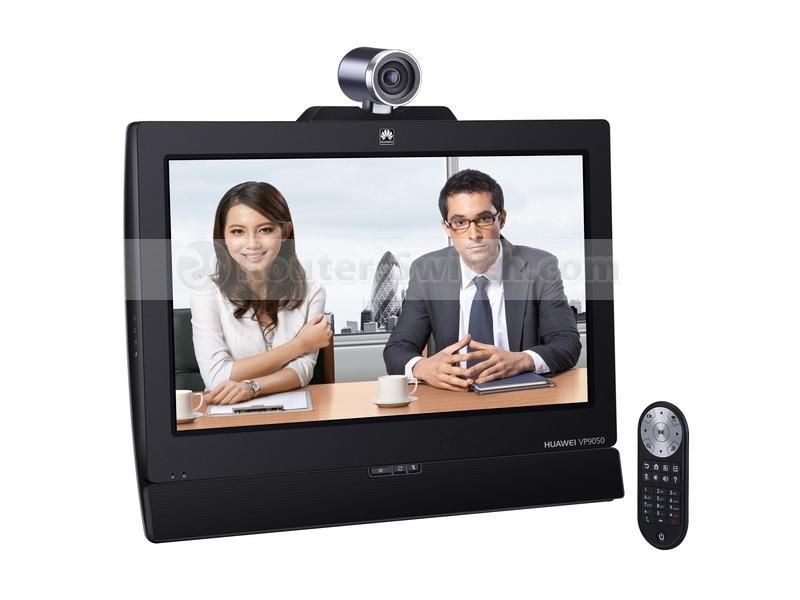

VC8MA5PEN, Huawei VC8MA5EN VP9050 Videoconferencing Terminal, 1080P/miniMCU/touch screen

Brand: Huawei · SKU: VC8MA5PEN · MPN: VC8MA5PEN · Category: Components

VC8MA5PEN, Huawei VC8MA5EN VP9050 Videoconferencing Terminal, 1080P/miniMCU/touch screen
$6,477.72
In Stock • 10 units

Huawei VC8MA5PEN VP9050,Videoconferencing Terminal(1080P,miniMCU,touch screen,cables-South Africa)

View Components Products

Specifications

ModelVC8MA5PEN
CameraEmbedded high-quality CMOS camera; video capture resolution: 1080p; automatic exposure (AE); automatic white balance (AWB); manual picture parameter control; rotatable; private protection switch.
Weight14.5 kg
Display21.5in 16:9 LCD; resolution: 1080p; luminance > 200 cd/m²; response time < 5 ms; viewing angle: horizontal 70°, vertical 65°; contrast ratio: 700; luminance and contrast control; rotatable; supports external source input.
NetworkCommunication standards: ITU-T H.323, IETF SIP; network standards: TCP/IP, FTP, DHCP, SNMP, Telnet, HTTP, HTTPS, PPPoE, RTP, RTCP; bandwidth over IP: 64 kbps to 4Mbps; total IP bandwidth 8Mbps (supports up to 4 HD video endpoints and 3 voice terminals in a conference).
SecurityH.235 signaling and media stream encryption; AES media stream encryption; conference access password; conference control password; administrator password; H.323 ID and number binding; IP address and number binding.
ElectricalWorking voltage: 100–240 V AC; working frequency: 50–60 Hz; power consumption: 100W.
Embedded MCUSupports up to 4 HD 720p video endpoints and 3 voice terminals to join a conference; supports continuous presence (CP), voice activation, camera control, chairman token, two-level cascading, and mixed H.323 and SIP.
Sound System2 x embedded microphones, supports external microphones; 2 x embedded stereo loudspeakers.
Audio InterfacesAudio input: 1 x 3.5mm line-in jack, 1 x 3.5mm mic jack; audio output: 1 x 3.5mm earphone jack, 1 x 3.5mm line-out jack.
Video InterfacesVideo input: 1 x DVI / YPbPr / VGA; video output: 1 x DVI / YPbPr / VGA; 1 x USB port.
Network Interfaces1 x IP port, 10/100 Base-T, 2 x RJ45 connectors; 1 x wireless port (WCDMA, CDMA2000 EV-DO) via USB connectors.
People Video Resolution1080p (optional), 720p, 4CIF/4SIF; 1080p 30 fps (optional), 720p 50/60 fps (optional), 720p 30 fps; 512 kbps for 720p 30 fps; 768 kbps for 720p 50/60 fps; 1Mbps for 1080p 30 fps; VideoIntensifier; ViewProcessing.
Content Video ResolutionSXGA (1280 x 1024), XGA (1024 x 768), SVGA (800 x 600), VGA (640 x 480).
Physical CharacteristicsCodec dimensions (L x W x H): 542mm x 114mm x 490mm; package dimensions (L x W x H): 685mm x 269mm x 685mm; device weight: 8.214.5 kg.
Audio Standards & ProtocolsAAC-LD stereo, G.722, G.711, G.728; HWA-LD stereo (Huawei Audio Broadband Low Delay Stereo); acoustic echo cancellation (AEC); acoustic noise suppression (ANS) 12 dB; automatic gain control (AGC) ±6 dB; VoiceClear; AudioEnhancer; audio-lip synchronization.
Environmental SpecificationOperating temperature: 0–40°C; operating humidity: 10–80%; non-operating temperature: -40–85°C; non-operating humidity (non-condensing): 0–95%; peripheral noise < 46 dBA SPL; lowest illuminance: 15 lux; recommended illuminance: > 300 lux.
Video Standards & ProtocolsH.264, H.263, H.263+, H.261; ITU-T H.239; VME (Video Motion Enhancement).
Other ITU-Supported StandardsH.221, H.225, H.230, H.231, H.233, H.234, H.235, H.241, H.242, H.243, H.245, H.281, H.283, H.350, H.460, T.140.
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this VC8MA5PEN, Huawei VC8MA5EN VP9050 Videoconferencing Terminal, 1080P/miniMCU/touch screen (VC8MA5PEN) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This VC8MA5PEN, Huawei VC8MA5EN VP9050 Videoconferencing Terminal, 1080P/miniMCU/touch screen includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the VC8MA5PEN, Huawei VC8MA5EN VP9050 Videoconferencing Terminal, 1080P/miniMCU/touch screen compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the VC8MA5PEN.
