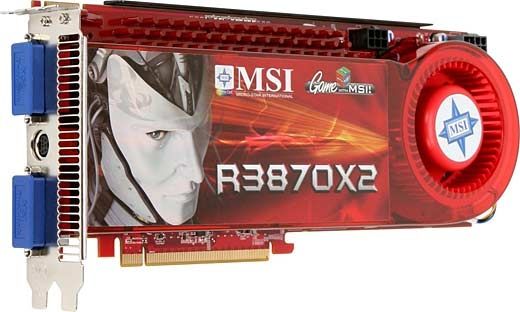

MSI R3870X2-T2D1G-OC 1 GB GDDR3

Specifications

Product Description

666 million transistors on 55nm fabrication process PCI Express x16 bus interface 256-bit GDDR3 memory interface OpenGL 2.0 support Bus Memory Controller -Fully distributed design with 512-bit internal ring bus for memory reads and writes. Microsoft DirectX 10.1 support - Shader Model 4.1. - 32-bit floating point texture filtering. - Indexed cube map arrays. - Independent blend modes per render target. - Pixel coverage sample masking. - Read/write multi-sample surfaces with shaders. - Gather4 texture fetching. Unified Superscalar Shader Architecture - 320 stream processing units. - 128-bit floating point precision for all operations. - Command processor for reduced CPU overhead. - Shader instruction and constant caches. - Up to 80 texture fetches per clock cycle. - Up to 128 textures per pixel. - Fully associative multi-level texture cache design. - DXTC and 3Dc+ texture compression. - High resolution texture support (up to 8192 x 8192). - Fully associative texture Z/stencil cache designs. - Double-sided hierarchical Z/stencil buffer. - Early Z test, Re-Z, Z Range optimization, and Fast Z Clear. - Lossless Z & stencil compression (up to 128:1). - Lossless color compression (up to 8:1). - 8 render targets (MRTs) with anti-aliasing support. - Physics processing support. Dynamic Geometry Acceleration - High performance vertex cache. - Programmable tessellation unit. - Accelerated geometry shader path for geometry amplification. - Memory read/write cache for improved stream output performance. Anti-aliasing features - Multi-sample anti-aliasing (2, 4, or 8 samples per pixel). - Up to 24x Custom Filter Anti-Aliasing (CFAA) for improved quality. - Adaptive super-sampling and multi-sampling.. - Temporal anti-aliasing. - Gamma correct. - Super AA (ATI CrossFire configurations only). - All anti-aliasing features compatible with HDR rendering. Texture filtering features - 2x/4x/8x/16x high quality adaptive anisotropic filtering modes (up to 128 taps per pixel). - 128-bit floating point HDR texture filtering. - Bicubic filtering. - sRGB filtering (gamma/degamma). - Percentage Closer Filtering (PCF). - Depth & stencil texture (DST) format support. - Shared exponent HDR (RGBE 9:9:9:5) texture format support. CrossFire Multi-GPU Technology - Scale up rendering performance and image quality with 2 or more GPUs. - Integrated compositing engine. ATI PowerPlay - Advanced power management technology for optimal performance and power savings. - Performance-on-Demand. - Central thermal management - on-chip sensor monitors GPU temperature and triggers thermal actions as required. ATI Avivo HD Video and Display Platform - Dedicated unified video decoder (UVD) for H.264/AVC and VC-1 video formats. - Hardware MPEG-1, MPEG-2, and DivX video decode acceleration. - ATI Avivo Video Post Processor. - HDMI output support. - Two integrated DisplayPort output supports. - Two integrated 400 MHz 30-bit RAMDACs. - Two integrated dual-link DVI display outputs. - Two independent display controllers. - Integrated AMD Xilleon HDTV encoder. - MPEG-2, MPEG-4, DivX, WMV9, VC-1, and H.264/AVC encoding and transcoding. - Seamless integration of pixel shaders with video in real time. - VGA mode support on all display outputs. HDCP - High-bandwidth Digital Content Protection HDCP is a content protection specification to protect digital entertainment content across the DVI/HDMI interface. The HDCP provides a robust, cost-effective and transparent method for transmitting and receiving digital entertainment similar to DVI/HDMI-compliant digital displays. HDCP encrypts the data transmitted between the DVI/HDMI connector on the graphics adapter and the display. To provide this support, both the graphics adapter and the display need to have an HDCP transmitter and receiver respectively.

Key Features

MSI R3870X2-T2D1G-OC. Processor frequency: 850 MHz. Discrete graphics card memory: 1 GB, Graphics card memory type: GDDR3, Memory bus: 256 bit, Memory clock speed: 1800 MHz. Maximum resolution: 2560 x 1600 pixels. DirectX version: 10.1, OpenGL version: 2.0, Dual Link DVI
