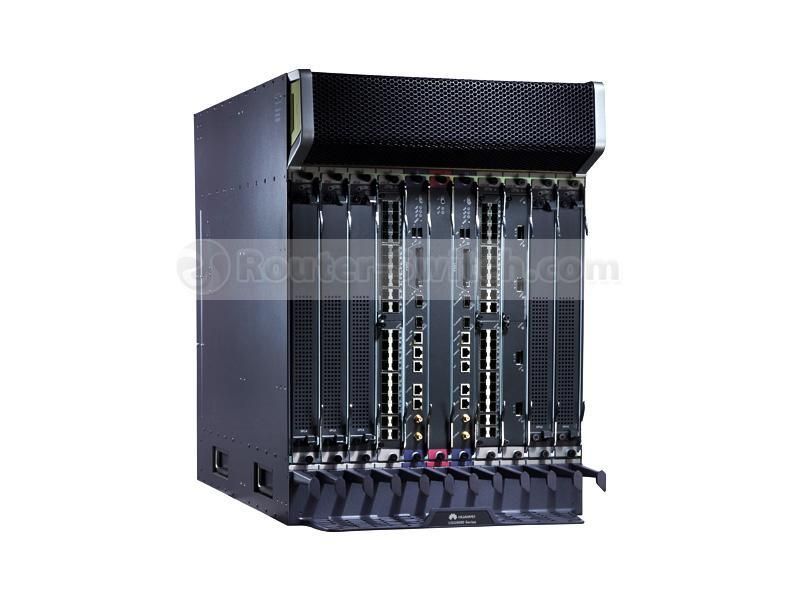

USG9560-BASE-DC-V3, Huawei USG9560 Firewall, X8 DC Chassis/2xSRU/1xSFU
Brand: Huawei · SKU: USG9560-BASE-DC-V3 · MPN: USG9560-BASE-DC-V3 · Category: Networking
USG9560 DC Basic Configuration(include X8 DC Chassis,2*SRU,1*SFU)
Specifications
| SPU | Firewall and application security SPUs |
|---|---|
| Model | USG9560-BASE-DC-V3 |
| Weight | 120 kg |
| AC Power Supply | 90 V AC to 264 V AC; 175 V AC to 264 V AC (recommended) |
| DC Power Supply | -38 V to -72 V; Rated -48 V |
| Expansion Slots | 8 slots |
| IPS Performance | 209 Gbit/s |
| Interface Types | GE, 10 GE, 40 GE, and 100 GE interfaces |
| Ambient Humidity | Long-term: 5% RH to 85% RH, non-condensing; Short-term: 5% RH to 95% RH, non-condensing; Storage: 0% RH to 95% RH, non-condensing |
| Power Consumption | 3,960W |
| Number of MPU Slots | 2 |
| Antivirus Performance | 187 Gbit/s |
| Operating Temperature | Long-term: 0°C to 45°C; Short-term: -5°C to 55°C; Storage: -40°C to 70°C |
| Dimensions (H x W x D) | 175mm x 442mm x 650mm DC; 220mm x 442mm x 650mm DC |
| Redundant Power Supply | Standard configuration |
| Firewall Throughput (maximum) | 720 Gbit/s |
| Firewall Throughput (IMIX Traffic) | 720 Gbit/s |
| IPSec VPN Performance (1,420 Bytes) | 336 Gbit/s |
| Maximum Number of Concurrent Sessions | 720 million |
| Maximum Number of Concurrent IPSec Tunnels | 768,000 |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this USG9560-BASE-DC-V3, Huawei USG9560 Firewall, X8 DC Chassis/2xSRU/1xSFU (USG9560-BASE-DC-V3) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This USG9560-BASE-DC-V3, Huawei USG9560 Firewall, X8 DC Chassis/2xSRU/1xSFU includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the USG9560-BASE-DC-V3, Huawei USG9560 Firewall, X8 DC Chassis/2xSRU/1xSFU compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the USG9560-BASE-DC-V3.
