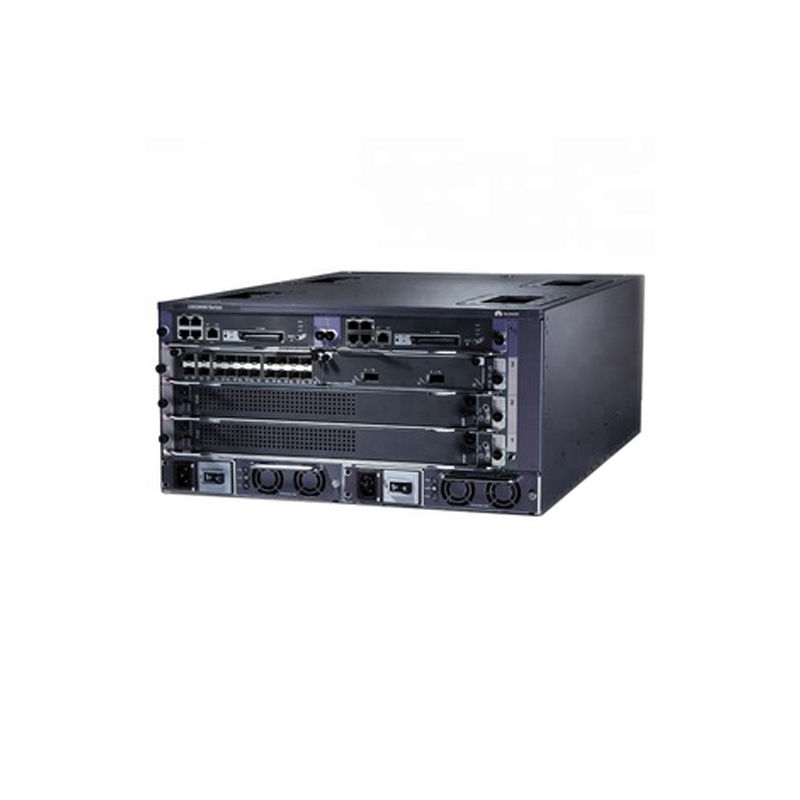

USG9520-BASE-AC-51, Huawei USG9500 Firewall, AC Standard Config/2xMPU/X3 AC Chassis
SKU: USG9520-BASE-AC-51 · MPN: USG9520-BASE-AC-51 · Category: Networking
Huawei USG9520 AC Standard Configuration (include X3 AC Chassis, 2*MPU)
Specifications
| MTBF | 29.78 years |
|---|---|
| MTTR | 0.5 hours |
| AC Power | 90 V AC to 264 V AC; 175 V AC to 264 V AC (recommended) |
| DC Power | -72 V to -38 V; -48 V (rated) |
| Console Ports | 2 |
| URL Filtering | URLs: Can access a database of over 120 million URLs in the cloud |
| Expansion Slot | 3 |
| Power Supplies | 1+1 backup |
| VLANs (maximum) | 4,094 |
| Ambient humidity | Long term: 5% RH to 85% RH, non-condensing Short term: 5% RH to 95% RH, non-condensing |
| Management Ports | 2 |
| Power Consumption | Typical: 1185W Most: 1414W |
| Working temperature | Extended operation: 0 ° C to 45 ° C Storage: -40 ° C to +70 ° C |
| Centralized Management | Centralized configuration, logging, monitoring, and reporting is performed by Huawei eSight and eLog |
| Dimensions (H x W x D) | 220 x 442 x 650 (5U) |
| Security Policies (Maximum) | 100,000 |
| Weight (Full Configuration) | Empty: 25 kg Full configuration: 40.7 kg |
| Maximum Number of Interfaces | 12*10GE (RJ45) |
| Virtual Interfaces (maximum) | 1,024 |
| Firewall Latency (64-byte, UDP) | 80 µs |
| High Availability Configurations | Active/Active, Active/Standby |
| Virtual Firewalls (Default/Maximum) | 10/4,095 |
| Third-Party and Open-Source Ecosystem | Open APIs for integration with third-party products through RESTCONF and NETCONF interfaces Other third-party management software based on SNMP, SSH, and syslog Collaboration with third-party tools, such as FireMon Collaboration with Anti-APT solution |
| Firewall Throughput (Packets Per Second) | 49Mpps |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this USG9520-BASE-AC-51, Huawei USG9500 Firewall, AC Standard Config/2xMPU/X3 AC Chassis (USG9520-BASE-AC-51) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This USG9520-BASE-AC-51, Huawei USG9500 Firewall, AC Standard Config/2xMPU/X3 AC Chassis includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the USG9520-BASE-AC-51, Huawei USG9500 Firewall, AC Standard Config/2xMPU/X3 AC Chassis compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the USG9520-BASE-AC-51.
