Brand: Ubiquiti · SKU: USG-PRO-4 · MPN: USG-PRO-4 · Category: Networking

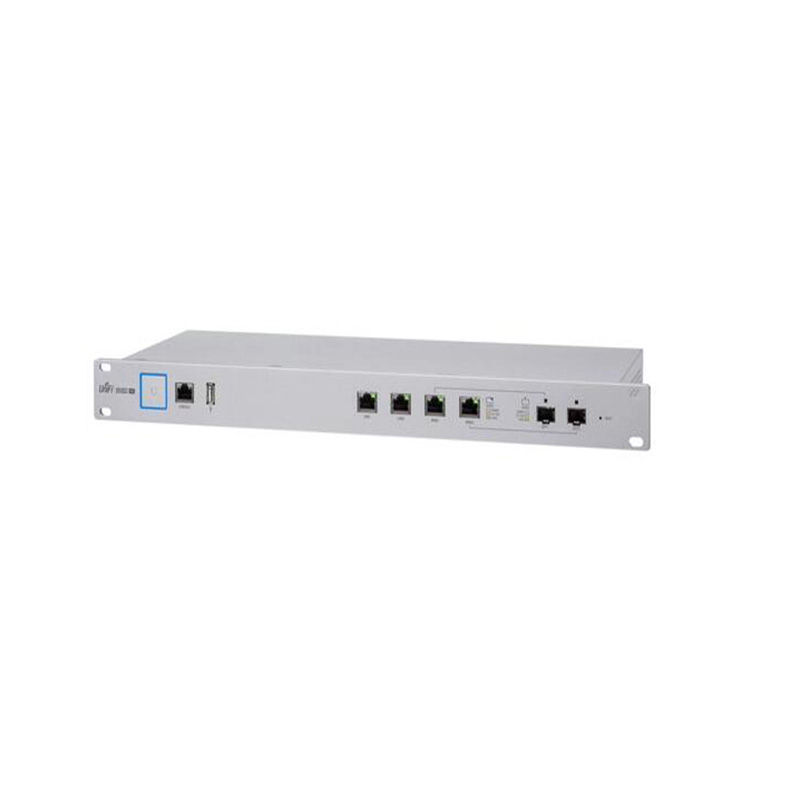

The Ubiquiti UniFi Security Gateway Pro (USG-PRO-4) is an enterprise gateway router designed to extend the UniFi Enterprise System to encompass routing and security. It features a rack-mountable form factor with fiber connectivity options, a dual-core 1 GHz processor with hardware acceleration for packet processing, and integrates with UniFi Controller Software for management. It offers advanced firewall policies, VLAN support, and site-to-site VPN capabilities. The device includes two 10/100/1000 RJ45 LAN ports and two 1 Gbps RJ45/SFP Combination WAN ports. Performance without security features like IPS/IDS is near line rate (4 Gbps for larger packets), but throughput drops significantly (around 500 Mbps) when intensive security features are enabled.
| Processor | Dual-Core 1 GHz, MIPS64 with Hardware Acceleration for Packet Processing |
|---|---|
| Power Input | 110 - 240VAC |
| Power Supply | Internal AC/DC Power Adapter, 60W (24V, 2.5A) |
| System Memory | 2 GB DDR3 RAM |
| Certifications | CE, FCC, IC |
| Rack Mountable | Yes |
| Networking Interfaces | 1 x RJ45 Serial Console Port, 2 x 10/100/1000 RJ45 LAN Ports, 2 x 1 Gbps RJ45/SFP Combination WAN Ports |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Max. Power Consumption | 40W |
| On-Board Flash Storage | 4 GB |
| Layer 3 Forwarding Performance (64 Bytes) | 2,400,000 pps |
| Layer 3 Forwarding Performance (512+ Bytes) | 4 Gbps (Line Rate) |
| Warranty | Limited warranty described at www.ubnt.com/support/warranty. |
| Weight | 2.3 kg (5.07 lb) |
| Dimensions | 484 x 44 x 164 mm (19.06 x 1.73 x 6.46") |
The UniFi Security Gateway Pro (USG-PRO-4) is a rack-mountable gateway that combines reliable security features with high-performance routing technology. It is managed via the intuitive UniFi Controller software and supports advanced features like firewall policies, VLANs, and site-to-site VPNs. It utilizes a powerful dual-core processor and includes SFP ports for fiber uplink/backhaul capabilities.
Yes, this Ubiquiti UniFi Security Gateway Pro (USG-PRO-4) (USG-PRO-4) is 100% genuine Ubiquiti hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Ubiquiti UniFi Security Gateway Pro (USG-PRO-4) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the USG-PRO-4.
