Brand: SICK · SKU: UC12-1223E · MPN: UC12-1223E · Category: Components

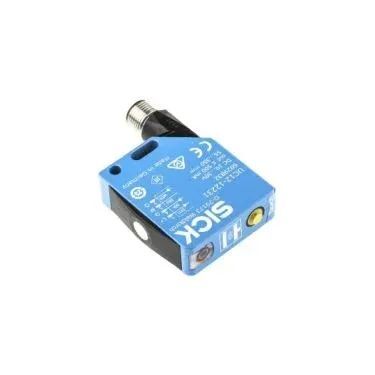

The SICK UC12-1223E is an ultrasonic sensor with a rectangular design and a metal (zinc diecast) housing. It features a supply voltage of DC 10 V ... 30 V with a power consumption of ≤ 1.2 W (without load). It has an M12, 4-pin male connector and an initialization time of < 300 ms. The operating range is 55 mm ... 250 mm, with a limiting range of 350 mm, designed for natural objects. It offers high accuracy (± 1 % reference to current measured value) and repeatability (± 0.15 % in relation to the current measured value, minimum value ≥ resolution). The sensor has a response time of 30 ms, a switching frequency of 25 Hz, and an ultrasonic frequency of typically 500 kHz. Additional functions include setting the switching mode (Distance to object (DtO) / Window (Wnd) / Object between sensor and background (ObSB)), teach-in of the digital output, teach-in button(s) (can be deactivated), and reset to factory default. It supports IO-Link V1.1 for process data, parameterization, diagnosis, an
| IO-Link | Yes, V1.1 |
|---|---|
| Accuracy | ± 1 % |
| Resolution | ≥ 0.1 mm |
| Repeatability | ± 0.15 % |
| Response Time | 30 ms |
| Limiting Range | 350 mm |
| Supply Voltage | DC 10 V ... 30 V |
| Connection Type | Male connector, M12, 4-pin |
| Operating Range | 55 mm ... 250 mm |
| Enclosure Rating | IP65 / IP67 |
| Power Consumption | ≤ 1.2 W (without load) |
| Switching Frequency | 25 Hz |
| Warranty | Standard manufacturer warranty (Check SICK documentation) |
| Weight | 75 g |
| Dimensions | 15 mm x 48.8 mm x 43.5 mm (W x H x D) |
The SICK UC12-1223E is an industrial ultrasonic sensor designed for precise distance measurement up to 250 mm with a housing made of metal (zinc diecast). It features IO-Link for advanced configuration and monitoring.
