Brand: Ubiquiti · SKU: UAP-AC-M · MPN: UAP-AC-M · Category: Networking

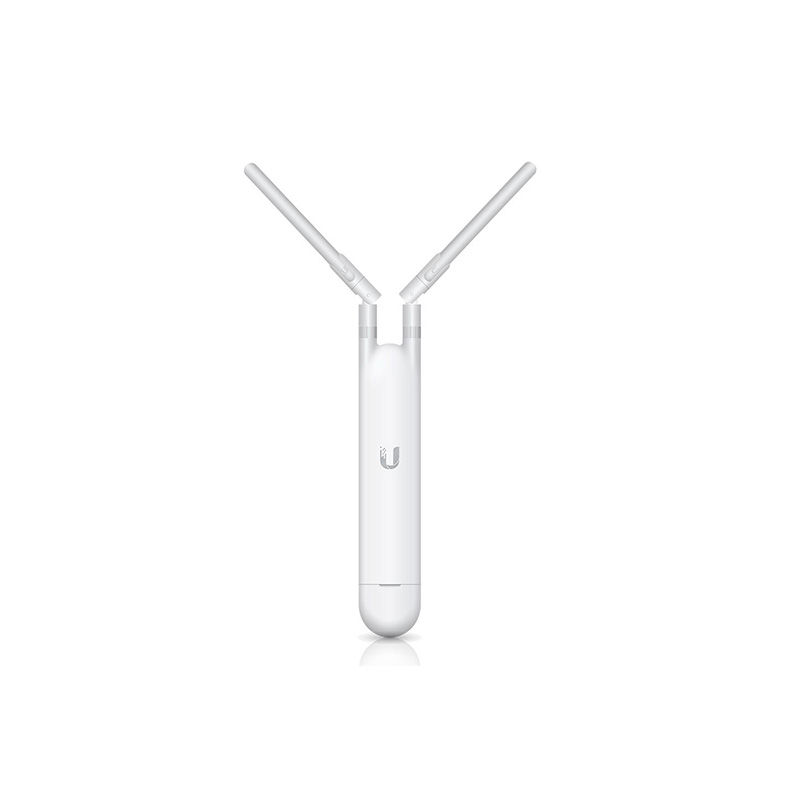

The UAP-AC-M is a high-performance, outdoor, 2x2 MIMO, 802.11AC dual-band access point, capable of speeds of up to 1167 Mbps. It features two RP-SMA connectors, which can be used with the included dual-band omni-directional antennas, or with an optional connectorized dual-band antenna for customized pattern shaping. It is part of the UniFi Enterprise Wi-Fi System and supports wireless meshing. The device is weather-resistant and supports multiple mounting options (wall, pole, fast-mount). It is managed via the UniFi Controller software. Key Features include: Simultaneous dual-band 2x2 MIMO technology, mesh networking capability, weather-resistant enclosure for outdoor use, and versatile mounting options (wall, pole, fast-mount of optional high-gain antenna).
| MIMO | 2x2 (DL MU-MIMO) |
|---|---|
| Antennas | (2) External Dual-Band Omni Antennas (RP-SMA connectors for optional antennas) |
| Mounting | Wall/Pole/Fast-Mount (Kits Included) |
| Antenna Gain | 2.4 GHz: 3 dBi, 5 GHz: 4 dBi |
| Max TX Power | 20 dBm (both 2.4 GHz and 5 GHz) |
| Power Method | 24V Passive PoE (Pairs 4, 5+; 7, 8 Return); 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return) |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included, except in 5-packs) |
| WiFi Standard | 802.11 a/b/g/n/ac (WiFi 5) |
| Certifications | CE, FCC, IC |
| 5 GHz Throughput | 867 Mbps |
| Total Throughput | 1167 Mbps |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| 2.4 GHz Throughput | 300 Mbps |
| Concurrent Clients | 200+ |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Max Power Consumption | 8.5W |
| Operating Temperature | -30 to 70° C (-22 to 158° F) |
| Warranty | Information Not Found |
| Weight | 152 g (5.36 oz) with Antennas |
| Dimensions | 353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35") |
The Ubiquiti UniFi AC Mesh Access Point (UAP-AC-M) is a high-performance, dual-band access point designed for flexible indoor or outdoor deployment. It supports 802.11ac Wi-Fi 5 with 2x2 MIMO technology, offering aggregate throughput up to 1167 Mbps. Its weather-resistant design and support for Ubiquiti's mesh technology allow for network extension over large or difficult outdoor areas. It can be powered via 802.3af Alternative A or 24V Passive PoE and includes all necessary hardware for wall or pole mounting.
Yes, this Ubiquiti UniFi AC Mesh Access Point (UAP-AC-M) (UAP-AC-M) is 100% genuine Ubiquiti hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Ubiquiti UniFi AC Mesh Access Point (UAP-AC-M) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the UAP-AC-M.
