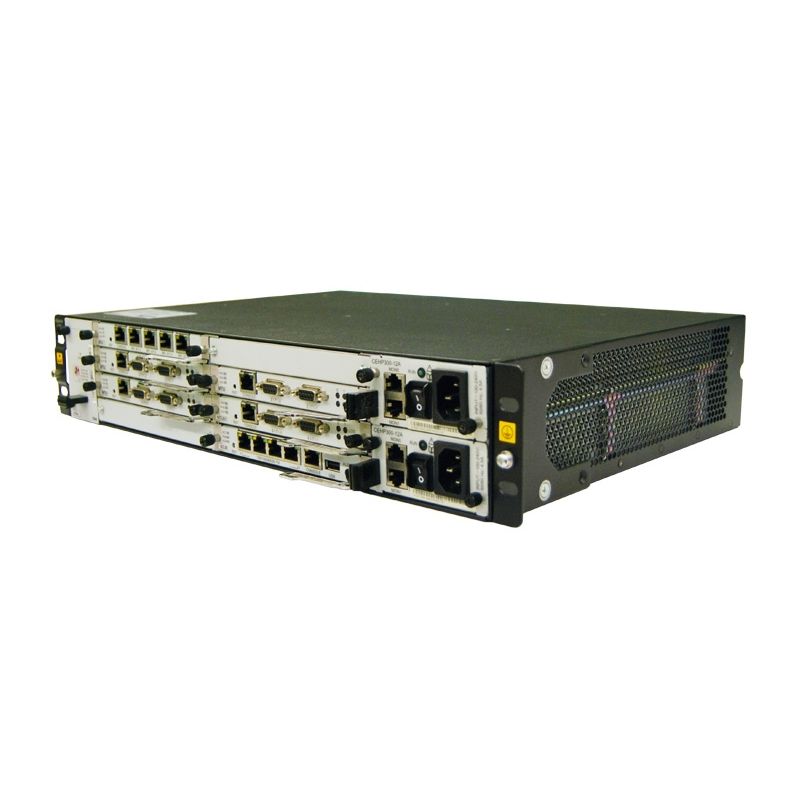

U16Z03ACFM, Huawei eSpace U1900 Unified Gateway, U1960 AC Integrated Frame
Brand: Huawei · SKU: U16Z03ACFM · MPN: U16Z03ACFM · Category: Networking
U16Z03ACFM eSpace U1900 Series Unified Gateways eSpace U1960 AC Integrated Frame
Specifications
| Model | U16Z03ACFM |
|---|---|
| Weight | 10.09 kg |
| Power supply | AC: 100 V to 240 V, 50/60 Hz; DC: –38.4 V to –60 V (typical –48 V); 1+1 power backup |
| Codec support | G.711A/μ, G.729a/b/ab, iLBC, G.722, G.722.1, G.722.2 |
| Manageability | Centralized and remote equipment management, signaling tracing, resource management, alarm management, quick deployment |
| Port capacity | Up to 72 FXO ports or 14 E1/T1 ports |
| Terminal type | Analog phones, IP phones, video phones, soft clients |
| Trunk protocol | SS7, R2, PRI, QSIG, SIP |
| Maintainability | Remote maintenance, automatic configuration, log collection, Daylight Saving Time (DST) support |
| Relative humidity | 5% to 95% (non-condensing) |
| System reliability | 99.995% |
| Storage temperature | –40°C to +70°C |
| Dustproof requirement | Airborne dust less than 180 mg/m³ (dustproof measures required on site) |
| Maximum number of users | 1,000 (maximum of 192 FXS ports for analog users or 1,000 SIP users) |
| Dimensions (H × W × D) | Standard 19-inch 2U subrack, 86.1mm × 442mm × 310mm |
| Maximum power consumption | 220W (full configuration) |
| Built-in voice mail (optional) | 30 concurrent channels, built-in 16GB SD storage card |
| Number of meeting participants | Up to 360 participants allocated to 120 meeting halls (each hall up to 60 participants) |
| Long-term operating temperature | 0°C to +45°C |
| Short-term operating temperature | –5°C to +55°C |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this U16Z03ACFM, Huawei eSpace U1900 Unified Gateway, U1960 AC Integrated Frame (U16Z03ACFM) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This U16Z03ACFM, Huawei eSpace U1900 Unified Gateway, U1960 AC Integrated Frame includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the U16Z03ACFM, Huawei eSpace U1900 Unified Gateway, U1960 AC Integrated Frame compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the U16Z03ACFM.
