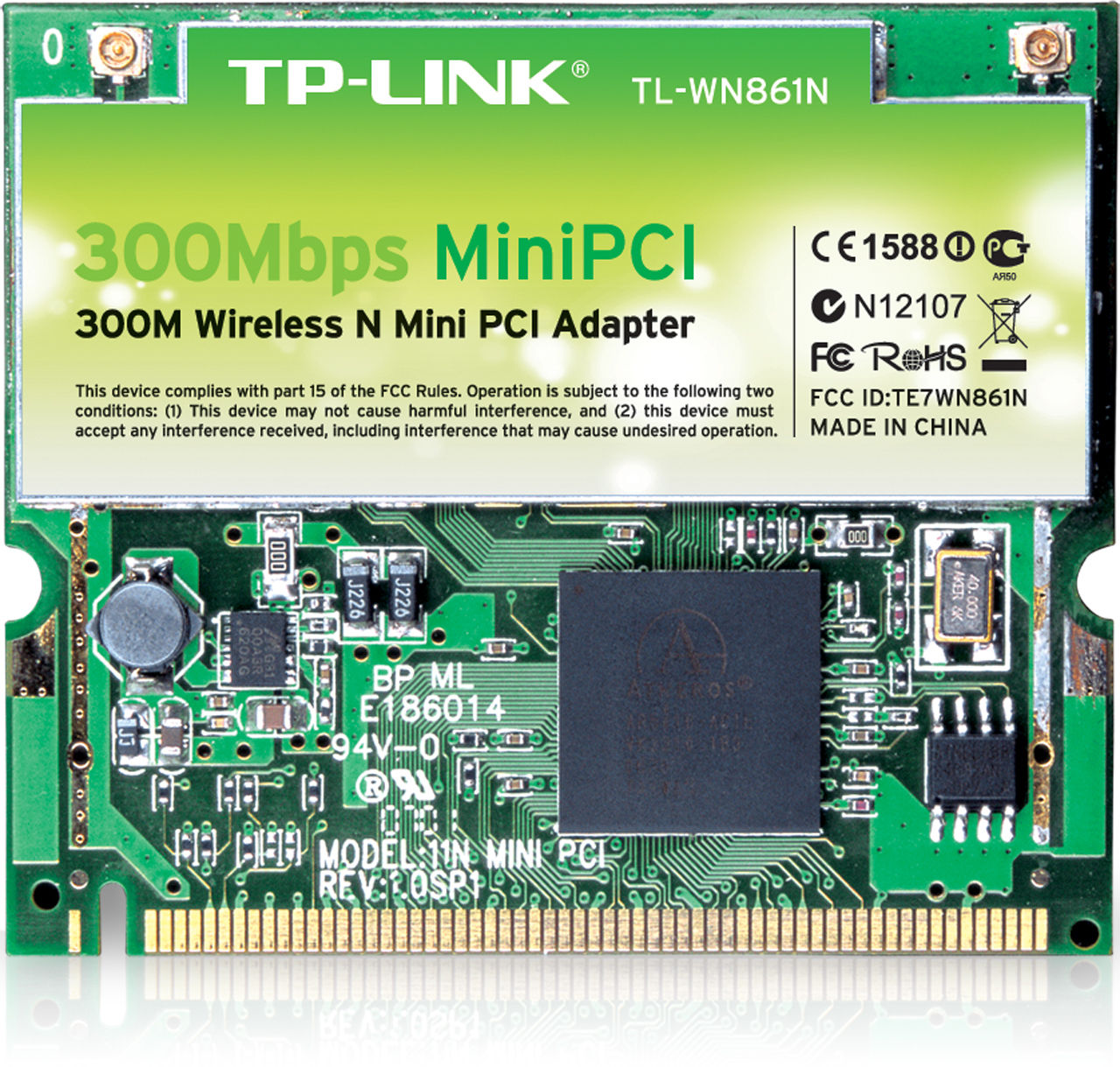

TP-Link TL-WN861N network card Internal WLAN 300 Mbit/s
Brand: TP-Link · SKU: TL-WN861N · MPN: TL-WN861N · Category: Components
TP-Link TL-WN861N, Internal, Wireless, Mini PCI, WLAN, 300 Mbit/s
Specifications
| Depth | 51 mm |
|---|---|
| Wi-Fi | Yes |
| Width | 59.7 mm |
| Height | 3.3 mm |
| Internal | Yes |
| Interface | WLAN |
| Modulation | 16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM |
| Wi-Fi band | Single-band (2.4 GHz) |
| Certification | FCC |
| Host interface | Mini PCI |
| Frequency range | 2.4 - 2.4835 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Receiver sensitivity | 270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER |
| Connectivity technology | Wireless |
| Storage temperature (T-T) | -40 - 70 °C |
| Maximum data transfer rate | 300 Mbit/s |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Dimensions (W x D x H) (imperial) | 1516.4 x 1295.4 x 83.8 mm (59.7 x 51 x 3.3") |
| Operating relative humidity (H-H) | 10 - 90% |
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Warranty | 3-Year Warranty |
| Dimensions | 59.7 mm x 51 mm x 3.3 mm |
Product Description
The TL-WN861N Wireless N Mini PCI Adapter complies with IEEE 802.11n, IEEE 802.11g, and IEEE 802.11b standards. Wireless transmission rates can reach up to 300Mbps. The Mini PCI card adopts 2*2 MIMO technology providing even better wireless performance, transmission rates, stability and coverage. At the same time, CCA technology automatically avoids channel conflicts using its channel selection feature. This product supports 64/128/152-bit WEP encryptions, as well as WPA/WPA2 and WPA-PSK/WPA2-PSK encryptions and mechanisms in addition to the adapter´s QSS (Quick Secure Setup) feature, allowing users to quickly and easily configure wireless security. This product can also simultaneously operate bandwidth intensive applications such as voice and video. Applications using a lot of bandwidth that are sensitive to interruptions such as voice and video applications are given priority in order to assure quality. It also works well with other 11g and 11n protocol wireless products.
Key Features
TP-Link TL-WN861N. Internal. Connectivity technology: Wireless, Host interface: Mini PCI, Interface: WLAN. Maximum data transfer rate: 300 Mbit/s, Wi-Fi band: Single-band (2.4 GHz)
Frequently Asked Questions
Is this product genuine OEM?
Yes, this TP-Link TL-WN861N network card Internal WLAN 300 Mbit/s (TL-WN861N) is 100% genuine TP-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This TP-Link TL-WN861N network card Internal WLAN 300 Mbit/s includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the TP-Link TL-WN861N network card Internal WLAN 300 Mbit/s compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the TL-WN861N.
