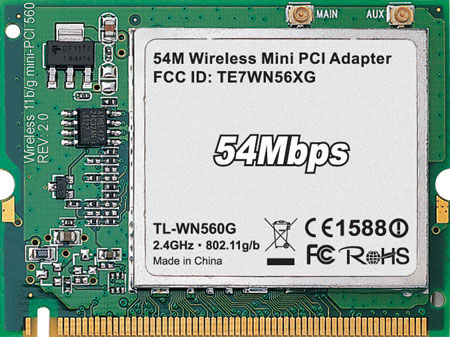

TP-Link 54Mbps eXtended Range™ Wireless Mini PCI Adapter Internal 54 Mbit/s
Brand: TP-Link · SKU: TL-WN560G · MPN: TL-WN560G · Category: Components
TP-Link 54Mbps eXtended Range™ Wireless Mini PCI Adapter, Internal, Wireless, PCI, 54 Mbit/s, Green
Specifications
| Depth | 45 mm |
|---|---|
| Wi-Fi | Yes |
| Width | 60 mm |
| Height | 3.3 mm |
| Internal | Yes |
| Wi-Fi band | Single-band (2.4 GHz) |
| Indoor range | 200m |
| Certification | CE, FCC |
| Component for | PC/Laptop |
| Outdoor range | 830m |
| Host interface | PCI |
| Product colour | Green |
| Dimensions (WxDxH) | 60 x 45 x 3.3 mm |
| Wireless connection | Yes |
| Connectivity technology | Wireless |
| Storage temperature (T-T) | -40 - 70 °C |
| Maximum data transfer rate | 54 Mbit/s |
| Operating temperature (T-T) | 32 - 104 °F |
| Compatible operating systems | Win 98SE/ME/2000/XP/Vista |
| Compliance industry standards | IEEE 802.11g, IEEE 802.11b |
| Supported data transfer rates | 54/48/36/24/18/12/9/6 Mbps |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Warranty | 3-Year Warranty |
| Dimensions | 60 mm x 45 mm x 3.3 mm |
Product Description
The TL-WN560G 54Mbps Wireless Network Mini PCI Adapter is fully compatible with IEEE 802.11b and IEEE 802.11g standards. Its auto-sensing capability allows high packet transfer rate up to 54Mbps for maximum throughput, or dynamic range shifting to lower speeds due to distance or operating limitations in an environment with a lot of electromagnetic interference. It can also interoperate with all the 11Mbps wireless (802.11b) products. Your wireless communications are protected by WPA/WPA2 encryption for high security. - Adopts 2x to 3x eXtended Range™ WLAN transmission technology - Supports 64/128/152-bit WEP, complies with 128 bit WPA standard(TKIP/AES), supports MIC, IV Expansion, Shared Key Authentication, IEEE 802.1X - Supports 54/48/36/24/18/12/9/6/11/5.5/3/2/1Mbps wireless LAN data transfer rates - Supports Ad-Hoc and Infrastructure modes - Supports roaming between access points when configured in Infrastructure mode - Ease to configure and provides monitoring information - Supports Windows 98SE, ME, 2000, XP, Vista
Key Features
TP-Link 54Mbps eXtended Range™ Wireless Mini PCI Adapter. Internal. Connectivity technology: Wireless, Host interface: PCI. Maximum data transfer rate: 54 Mbit/s, Wi-Fi band: Single-band (2.4 GHz). Product colour: Green
Frequently Asked Questions
Is this product genuine OEM?
Yes, this TP-Link 54Mbps eXtended Range™ Wireless Mini PCI Adapter Internal 54 Mbit/s (TL-WN560G) is 100% genuine TP-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This TP-Link 54Mbps eXtended Range™ Wireless Mini PCI Adapter Internal 54 Mbit/s includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the TP-Link 54Mbps eXtended Range™ Wireless Mini PCI Adapter Internal 54 Mbit/s compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the TL-WN560G.
