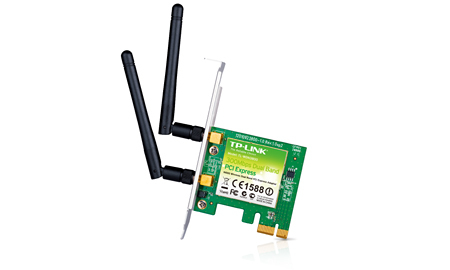

TP-Link TL-WDN3800 network card Internal WLAN 300 Mbit/s
Brand: TP-Link · SKU: TL-WDN3800 · MPN: TL-WDN3800 · Category: Components
TP-Link TL-WDN3800, Internal, Wireless, PCI Express, WLAN, 300 Mbit/s, Green
Specifications
| Gain | 2 dBi |
|---|---|
| Wi-Fi | Yes |
| Antenna | Yes |
| Internal | Yes |
| Interface | WLAN |
| Modulation | 16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Ethernet LAN | No |
| Certification | CE, FCC |
| Host interface | PCI Express |
| Product colour | Green |
| Frequency range | 2.4 - 5.825 GHz |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
| Quick start guide | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Security algorithms | 128-bit WEP, 64-bit WEP, 802.1x RADIUS, WEP, WPA-PSK, WPA2-PSK |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Receiver sensitivity | 270M_2.4GHz: -70dBm@10% PER 195M_2.4GHz: -71dBm@10% PER 130M_2.4GHz: -74dBm@10% PER 54M_2.4GHz: -79dBm@10% PER 11M_2.4GHz: -87dBm@8% PER 6M_2.4GHz: -94dBm@10% PER 1M_2.4GHz: -99dBm@8% PER 270M_5GHz: -67dBm@10% PER 195M_5GHz: -70dBm@10% PER 130M_5GHz: -73dBm@10% PER 54M_5GHz: -79dBm@10% PER 6M_5GHz: -92dBm@10% PER |
| Detachable antenna(s) | Yes |
| Antenna connector type | RP-SMA |
| Compliance certificates | RoHS |
| Connectivity technology | Wireless |
| Storage temperature (T-T) | -40 - 70 °C |
| Maximum data transfer rate | 300 Mbit/s |
| Warranty | 3-Year Warranty |
Product Description
Highlights: - Dual Band support - 2.4GHz or 5GHz channels bring an optimized HD video streaming, file sharing and online experience - Wireless speeds of up to 300Mbps - Two antennas increase wireless performance and stability What This Product Does TP-LINK’s N600 Wireless Dual Band PCI Express Adapter, TL-WDN3800 allows you to connect a desktop computer to a wireless network and access a high-speed wireless network connection. Complying with IEEE 802.11 a/b/g/n, the device can use the 2.4GHz or 5GHz channels and provide wireless speeds of up to 300Mbps which is ideal for users seeking a highly robust, bandwidth intensive wireless networking experience, particularly with HD video streaming and online gaming. Dual Band Dual Band is the latest wireless technology allowing the adapter to connect with a 2.4GHz or 5GHz network. This allows you to check e-mail and browse the Internet using the 2.4GHz band or stream HD movies and other media on the 5GHz band. The advantage of working on the 5GHz band is that, unlike the crowded 2.4GHz band shared with microwaves, cordless phones and other wireless networks, it has much less interference and can provide a more stable wireless signal, which is ideal for online gaming and HD video streaming. Wireless N Speed up to 300Mbps Both the adapter’s 2.4GHz and 5GHz bands support wireless speed of up to 300Mbps, which is ideal for interruption sensitive applications like HD video streaming. WPA / WPA2 Encryptions - Advanced Security WPA/WPA2 encryption standards ensure your wireless connection is safe from intruders. Easy Operation TL-WDN3800 comes with a CD utility that helps you complete the software installation and wireless network settings, including security configurations and wireless connection, which makes setting up your network so easy that even for novice users should be up and running in minutes.
Key Features
TP-Link TL-WDN3800. Internal. Connectivity technology: Wireless, Host interface: PCI Express, Interface: WLAN. Maximum data transfer rate: 300 Mbit/s, Top Wi-Fi standard: Wi-Fi 4 (802.11n), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Product colour: Green
Frequently Asked Questions
Is this product genuine OEM?
Yes, this TP-Link TL-WDN3800 network card Internal WLAN 300 Mbit/s (TL-WDN3800) is 100% genuine TP-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This TP-Link TL-WDN3800 network card Internal WLAN 300 Mbit/s includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the TP-Link TL-WDN3800 network card Internal WLAN 300 Mbit/s compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the TL-WDN3800.
