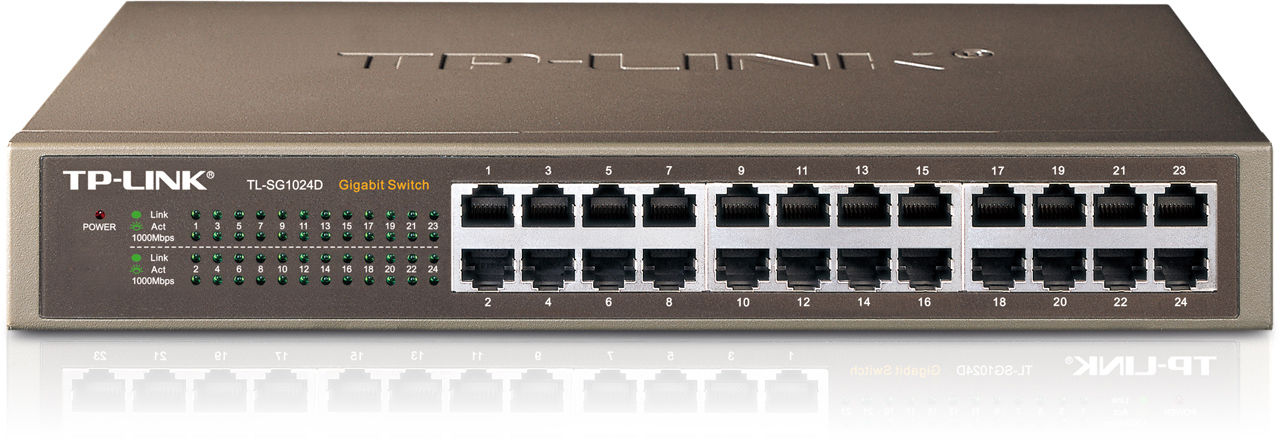

TP-Link TL-SG1024 Unmanaged
Brand: TP-Link · SKU: TL-SG1024 · MPN: TL-SG1024 · Category: Components
TP-Link TL-SG1024, Unmanaged, Full duplex, Rack mounting. TP-Link TL-SG1024 Unmanaged (part number TL-SG1024) is an enterprise components product available from Server Tech Central. Key specifications include power led Yes, full duplex Yes, switch type Unmanaged, input voltage 12 V, rack mounting Yes, auto mdi/mdi-x Yes, led indicators Status, power connector DC-in jack. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Power LED | Yes |
|---|---|
| Full duplex | Yes |
| Switch type | Unmanaged |
| Input voltage | 12 V |
| Rack mounting | Yes |
| Auto MDI/MDI-X | Yes |
| LED indicators | Status |
| Power connector | DC-in jack |
| Dimensions (WxDxH) | 294 x 180 x 44 mm |
| Power requirements | 100 - 240V / 50-60Hz |
| Switching capacity | 48 Gbit/s |
| Networking features | Gigabit Ethernet |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Connectivity technology | Wired |
| Power over Ethernet (PoE) | No |
| Storage temperature (T-T) | -40 - 70 °C |
| Maximum data transfer rate | 2 Gbit/s |
| Operating temperature (T-T) | 0 - 40 °C |
| Compatible operating systems | FCC, CE, RoHS |
| Supported data transfer rates | 10/100/1000 Mbps |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Warranty | 3-Year Warranty |
Product Description
What This Product Does The TL-SG1024D 24-Port Gigabit switch provides an easy way to make the transition to Gigabit Ethernet. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save up to 20% of the power consumption, making it an eco-friendly solution for your business network. Gigabit Switch Featured with 24 10/100/1000Mbps ports, TL-SG1024D greatly expands your network capacity, enabling instant large files transferring. So，power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly. Go Green With Your Ethernet You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1024D 24-Port Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. Power down Idle Ports When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1024D can automatically detect the link status of each port and reduce the power consumption of ports that are idle. Power Budget According to Cable Length Ideally, shorter cables would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The TL-SG1024D analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution. Easy to Use The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100 Mbps or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Key Features
TP-Link TL-SG1024. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Rack mounting
Frequently Asked Questions
Is this product genuine OEM?
Yes, this TP-Link TL-SG1024 Unmanaged (TL-SG1024) is 100% genuine TP-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This TP-Link TL-SG1024 Unmanaged includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the TP-Link TL-SG1024 Unmanaged compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the TL-SG1024.
