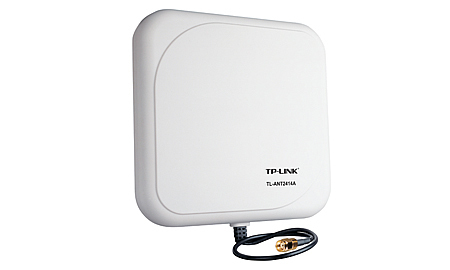

TP-Link 2.4GHz 14dBi Directional Antenna network antenna
Brand: TP-Link · SKU: TL-ANT2414A · MPN: TL-ANT2414A · Category: Components
TP-Link 2.4GHz 14dBi Directional Antenna, 14 dBi, 2.4 - 2.5 GHz, IEEE 802.11b, IEEE 802.11g, 50 Ω, 60°, 76°
Specifications
| Depth | 240 mm |
|---|---|
| Width | 240 mm |
| Height | 40 mm |
| Impedance | 50 Ω |
| Cable type | CFD-200 |
| Cable length | 1 m |
| Polarization | Vertical polarization |
| Certification | CE, FCC, RoHS |
| Frequency band | 2.4 - 2.5 GHz |
| Vertical beam width | 76° |
| Networking standards | IEEE 802.11b, IEEE 802.11g |
| Horizontal beam width | 60° |
| Antenna gain level (max) | 14 dBi |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Voltage Standing Wave Ratio (VSWR) | 1.92: 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 240 mm x 240 mm x 40 mm |
Product Description
Features: - 14dBi directional operation boosts your signal to a further distance in a specific direction. - Features 100cm CFD-200 low loss cable for flexible deployment. - RP-SMA Male connector, works with most of access points / wireless routers. - Provides easy installation mounting kits.
Key Features
TP-Link 2.4GHz 14dBi Directional Antenna. Antenna gain level (max): 14 dBi, Frequency band: 2.4 - 2.5 GHz, Networking standards: IEEE 802.11b, IEEE 802.11g. Polarization: Vertical polarization, Voltage Standing Wave Ratio (VSWR): 1.92: 1, Cable length: 1 m. Certification: CE, FCC, RoHS. Width: 240 mm, Depth: 240 mm, Height: 40 mm
