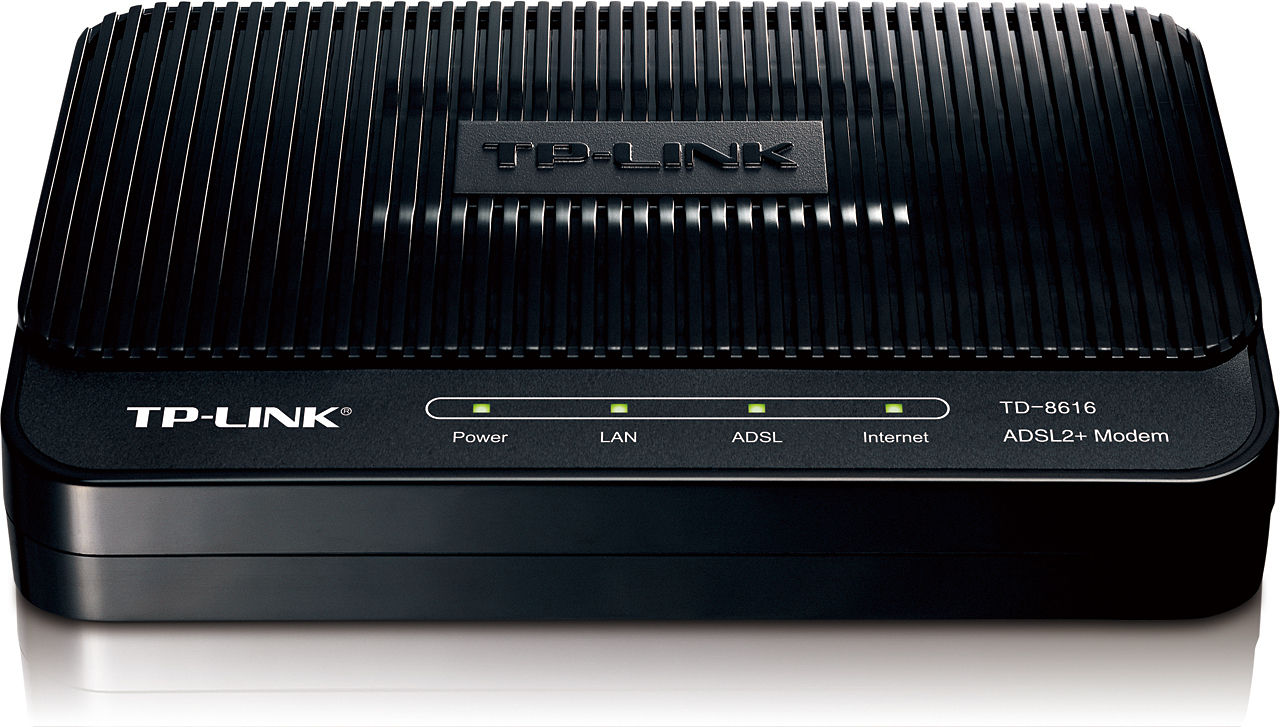

TP-Link TD-8616 modem
Brand: TP-Link · SKU: TD-8616 · MPN: TD-8616 · Category: Components
TP-Link TD-8616, 3.5 Mbit/s, 24 Mbit/s, Fast Ethernet, Activity, DSL, LAN, RoHS, Federal Communications Commission (FCC), FCC, RoHS
Specifications
| Depth | 108 mm |
|---|---|
| Width | 165 mm |
| Height | 28 mm |
| Certification | FCC, RoHS |
| LED indicators | Activity, DSL, LAN |
| Technical features | ANSI T1.413 Issue 2 ITU-T G.992.1 (G.dmt) ITU-T G.992.2 (G.lite) ITU-T G.992.3 (G.dmt.bis) ITU-T G.994.1 (G.hs) ITU-T G.992.5 |
| Upstream data rate | 3.5 Mbit/s |
| Modem (RJ-11) ports | 1 |
| Networking features | Fast Ethernet |
| Downstream data rate | 24 Mbit/s |
| Compliance certificates | RoHS, Federal Communications Commission (FCC) |
| Storage temperature (T-T) | -40 - 70 °C |
| Ethernet LAN (RJ-45) ports | 1 |
| Operating temperature (T-T) | 0 - 40 °C |
| Compliance industry standards | IEEE 802.3, 802.3u |
| Operating relative humidity (H-H) | 10 - 90% |
| Non-operating relative humidity (non-condensing) | 5 - 90% |
| Warranty | 3-Year Warranty |
| Dimensions | 165 mm x 108 mm x 28 mm |
Product Description
The TP-Link ADSL2/2+ Ethernet Modem (TD-8616) enables you to access a high-speed DSL Internet connection. It supports the latest ADSL2/2+ standards to provide higher performance (up to 24Mbps downstream) and longer reach from your Internet Service Provider´s (ISP) Digital Subscriber Line Access Multiplexer (DSLAM). You can also create a wired network to share your high-speed Internet connection by adding a multi-port router. The TD-8616 includes a simple configarution tool and a Web-based Graphic User Interface (GUI) that enables you to easily modify settings to connect to a DSL Internet service. The conveniently located LED indicators let you quickly check the moden´s status and activity. The TP-LINK TD-8616 is TR-067 compliant, ensuring that this device will work your Internet Service Provider´s infrastructure. Featuring high ADSL performance, easy-to-use, the TP-Link TD-8616 is a good choice to access to the internet.
Key Features
TP-Link TD-8616. Upstream data rate: 3.5 Mbit/s, Downstream data rate: 24 Mbit/s, Networking features: Fast Ethernet. LED indicators: Activity, DSL, LAN. Compliance certificates: RoHS, Federal Communications Commission (FCC), Certification: FCC, RoHS, Compliance industry standards: IEEE 802.3, 802.3u. Depth: 108 mm, Height: 28 mm, Width: 165 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this TP-Link TD-8616 modem (TD-8616) is 100% genuine TP-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This TP-Link TD-8616 modem includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the TP-Link TD-8616 modem compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the TD-8616.
