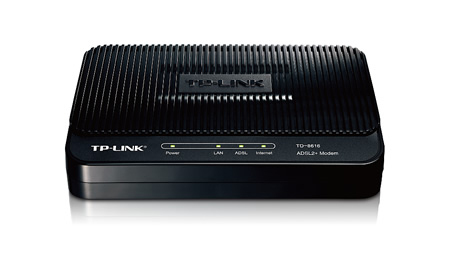

TP-Link ADSL2+ modem
Brand: TP-Link · SKU: TD-8610 · MPN: TD-8610 · Category: Components
TP-Link ADSL2+ Modem, ADSL, 10/100 Mbit/s, 1 Mbit/s, 24 Mbit/s, ANSI T1.413 Issue 2 ITU-T G.992.1 ITU-T G.994.1 ITU-T G.992.3 ITU-T G.992.5, 0 - 40 °C
Specifications
| Depth | 108 mm |
|---|---|
| Width | 165 mm |
| Height | 28 mm |
| Internal | No |
| Modem type | ADSL |
| Upstream data rate | 1 Mbit/s |
| Modem (RJ-11) ports | 1 |
| Supported protocols | ANSI T1.413 Issue 2 ITU-T G.992.1 ITU-T G.994.1 ITU-T G.992.3 ITU-T G.992.5 |
| Downstream data rate | 24 Mbit/s |
| Storage temperature (T-T) | -40 - 70 °C |
| Ethernet LAN (RJ-45) ports | 1 |
| Operating temperature (T-T) | 0 - 40 °C |
| Supported data transfer rates | 10/100 Mbit/s |
| Operating relative humidity (H-H) | 10 - 90% |
| Non-operating relative humidity (non-condensing) | 5 - 90% |
| Warranty | 3-Year Warranty |
| Dimensions | 165 mm x 108 mm x 28 mm |
Product Description
TD-8610 uses integrated ADSL2+ transceiver and a 256-MHz MIPS32 CPU.The AFE supports full-rate ADSL connectivity conforming to the ITU and ANSI specifications; MIPS32 CPU with MMU and 16-KB I-cache/8-KB D-cache is integrated into the device. In addition to the basic DMT physical layer functions, the ADSL PHY supports dual latency ADSL Framing (fast and interleaved) and the I.432 ATM Physical Layer.TD-8610 is a complete plug-and-play solution. With standard Ethernet interface, it can be directly connected to any 10M/100M Ethernet devices,supporting Auto MDI/MDIX. TD-8610 not only use html (web mode through Ethernet port) to configure the MODEM but also use external utility software, too. With TP-LINK´s excellent design of circuit and high quality production, we guarantee ADSL MODEM a high performance, very good stability and easy to use.
Key Features
TP-Link ADSL2+ Modem. Modem type: ADSL. Supported data transfer rates: 10/100 Mbit/s, Upstream data rate: 1 Mbit/s, Downstream data rate: 24 Mbit/s. Depth: 108 mm, Height: 28 mm, Width: 165 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this TP-Link ADSL2+ modem (TD-8610) is 100% genuine TP-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This TP-Link ADSL2+ modem includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the TP-Link ADSL2+ modem compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the TD-8610.
