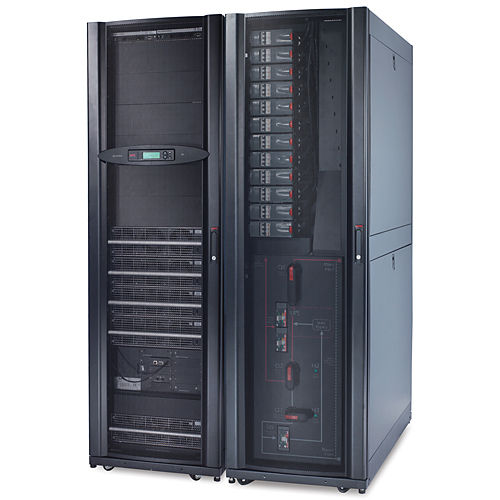

APC Symmetra PX 64kW Scalable to 96kW 400V with Modular Power Distribution
Brand: APC · SKU: SY64K96H-PD · MPN: SY64K96H-PD · Category: Components
APC Symmetra PX 64kW Scalable to 96kW 400V with Modular Power Distribution, 64 kVA, 64000 W, 0.02%, 0.05%, 63 dB, Sealed Lead Acid (VRLA)
Specifications
| Depth | 1070 mm |
|---|---|
| Width | 1200 mm |
| Height | 1991 mm |
| Weight | 1454 kg |
| Interface | SmartSlot |
| Noise level | 63 dB |
| Battery type | VRLA |
| Output power | 64000 W |
| Certification | EN 50091-1,EN/IEC 62040-3,EN/IEC 62040-1-1,FCC 15 A,VFI-SS-111 |
| Product colour | Black |
| Audible alarm(s) | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
| Operating altitude | 0 - 999.9 m |
| Output connections | 1x 3PH + N + G |
| Battery recharge time | 3.50 h |
| Input connection type | 3PH + N + G |
| Nominal input voltage | 400 V |
| Output power capacity | 64 kVA |
| Non-operating altitude | 0 - 15000 m |
| Emergency Power Off (EPO) | Yes |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Warranty | 3-Year Warranty |
| Weight | 1454 kg |
| Dimensions | 1200 mm x 1070 mm x 1991 mm |
Product Description
Audible alarms Provide notification of changing flywheel conditions InfraStruXure Central compatible Enables centralized management via APC InfraStruXure® Central. Modular design Increases adaptability with an open architecture configurable to any IT environment. Modular design Modular construction - can be deployed as a non-standby and migrate to a standby (UPS) system. LCD display Alpha-Numeric Display which displays system parameters and alarms. SmartSlot Customize UPS capabilities with management cards. Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced Generator compatible Ensures clean, uninterrupted power to protected equipment when generator power is used. Configurable for N+1 internal redundancy Provides high availabilty through redundancy by allowing configuration with one more Power Module than is necessary to support the connected load. Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced. Battery modules connected in parallel Delivers higher availability through redundant batteries. Automatic internal bypass Supplies utility power to the connected loads in the event of a UPS overload condition or fault. Audible alarms Provides notification of changing utility power and UPS conditions. User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR) Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature.
Key Features
APC Symmetra PX 64kW Scalable to 96kW 400V with Modular Power Distribution. Output power capacity: 64 kVA, Output power: 64000 W, Output voltage Total Harmonic Distortion (THD): 0.02%. Battery technology: Sealed Lead Acid (VRLA), Battery recharge time: 3.50 h. Product colour: Black. Certification: EN 50091-1,EN/IEC 62040-3,EN/IEC 62040-1-1,FCC 15 A,VFI-SS-111. Width: 1200 mm, Depth: 1070 mm, Height: 1991 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this APC Symmetra PX 64kW Scalable to 96kW 400V with Modular Power Distribution (SY64K96H-PD) is 100% genuine APC hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This APC Symmetra PX 64kW Scalable to 96kW 400V with Modular Power Distribution includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the APC Symmetra PX 64kW Scalable to 96kW 400V with Modular Power Distribution compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the SY64K96H-PD.
