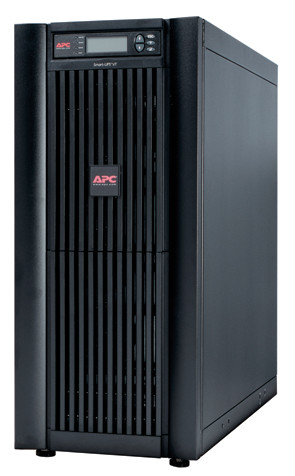

APC Smart-UPS VT 20kVA 400V uninterruptible power supply (UPS) 16000 W
Brand: APC · SKU: SUVTP20KHS · MPN: SUVTP20KHS · Category: Components
APC Smart-UPS VT 20kVA 400V, 20 kVA, 16000 W, Black, 134 kg, 173 kg, VRLA. APC Smart-UPS VT 20kVA 400V uninterruptible power supply (UPS) 16000 W (part number SUVTP20KHS) is an enterprise power supplies product available from Server Tech Central. Key specifications include weight 134 kg, battery type VRLA, output power 16000 W, package weight 173 kg, product colour Black, dimensions (wxdxh) 352 x 812 x 823 mm, input connection type Hard Wire 5-wire (3PH + N + G), nominal input voltage 400 V. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Weight | 134 kg |
|---|---|
| Battery type | VRLA |
| Output power | 16000 W |
| Package weight | 173 kg |
| Product colour | Black |
| Dimensions (WxDxH) | 352 x 812 x 823 mm |
| Output connections | 1 x Hard Wire 4-wire (3PH + G) 1 x Hard Wire 5-wire (3PH + N + G) 1 x Screw Terminals |
| Input connection type | Hard Wire 5-wire (3PH + N + G) |
| Nominal input voltage | 400 V |
| Output power capacity | 20 kVA |
| Emergency Power Off (EPO) | Yes |
| Package dimensions (WxDxH) | 720 x 1110 x 1290 mm |
| Warranty | 3-Year Warranty |
| Weight | 134 kg |
Product Description
APC Smart-UPS VT, 16 kW / 20 kVA,Input 400V 3PH / Output 230V, 400V 3PH. Includes: CD with software, Installation guide, Network Management Card, Power modules ship installed, User Manual. - Dual mains input Increases availability by allowing the UPS to be connected to two separate power sources. - Scalable runtime Allows additional run time to be quickly added as needed. - Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced - Generator compatible Ensures clean, uninterrupted power to protected equipment when generator power is used. - Automatic internal bypass Supplies utility power to the connected loads in the event of a UPS overload condition or fault. - Battery modules connected in parallel Delivers higher availability through redundant batteries. Serviceability - User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR) - Battery replacement without tools Allows quick, easy battery replacement. - Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced. - Shippable with modules installed Enables pre-installation UPS staging and testing and faster installation. - Modular design Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules. Manageability - Network manageable Provides remote management of the UPS over the network. - InfraStruXure Manager Compatible Enables centralized management via the APC InfraStruXure Manager. - LCD display Alpha-Numeric Display which displays system parameters and alarms. - Audible alarms Provides notification of changing utility power and UPS conditions. - Programmable frequency Ensures compatibility with different input frequencies. - LED status indicators Quickly understand unit and power status with visual indicators. - SmartSlot Customize UPS capabilities with management cards. Total Cost of Ownership - Input power factor correction Minimizes installation costs by enabling the use of smaller generators and cabling. - Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature. - Manual maintenance bypass Reduces installation costs by eliminating the need for an external mechanical bypass. - Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging. Protection - Frequency and voltage regulation Gives higher application availability by correcting poor frequency and voltage conditions without using the battery. - Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals. - Cold-start capable Provides temporary battery power when the utility power is out.
Key Features
APC Smart-UPS VT 20kVA 400V. Output power capacity: 20 kVA, Output power: 16000 W. Product colour: Black. Weight: 134 kg. Package weight: 173 kg. Battery type: VRLA, Output connections: 1 x Hard Wire 4-wire (3PH + G) 1 x Hard Wire 5-wire (3PH + N + G) 1 x Screw Terminals, Input connection type: Hard Wire 5-wire (3PH + N + G)
Frequently Asked Questions
Is this product genuine OEM?
Yes, this APC Smart-UPS VT 20kVA 400V uninterruptible power supply (UPS) 16000 W (SUVTP20KHS) is 100% genuine APC hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This APC Smart-UPS VT 20kVA 400V uninterruptible power supply (UPS) 16000 W includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the APC Smart-UPS VT 20kVA 400V uninterruptible power supply (UPS) 16000 W compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the SUVTP20KHS.
