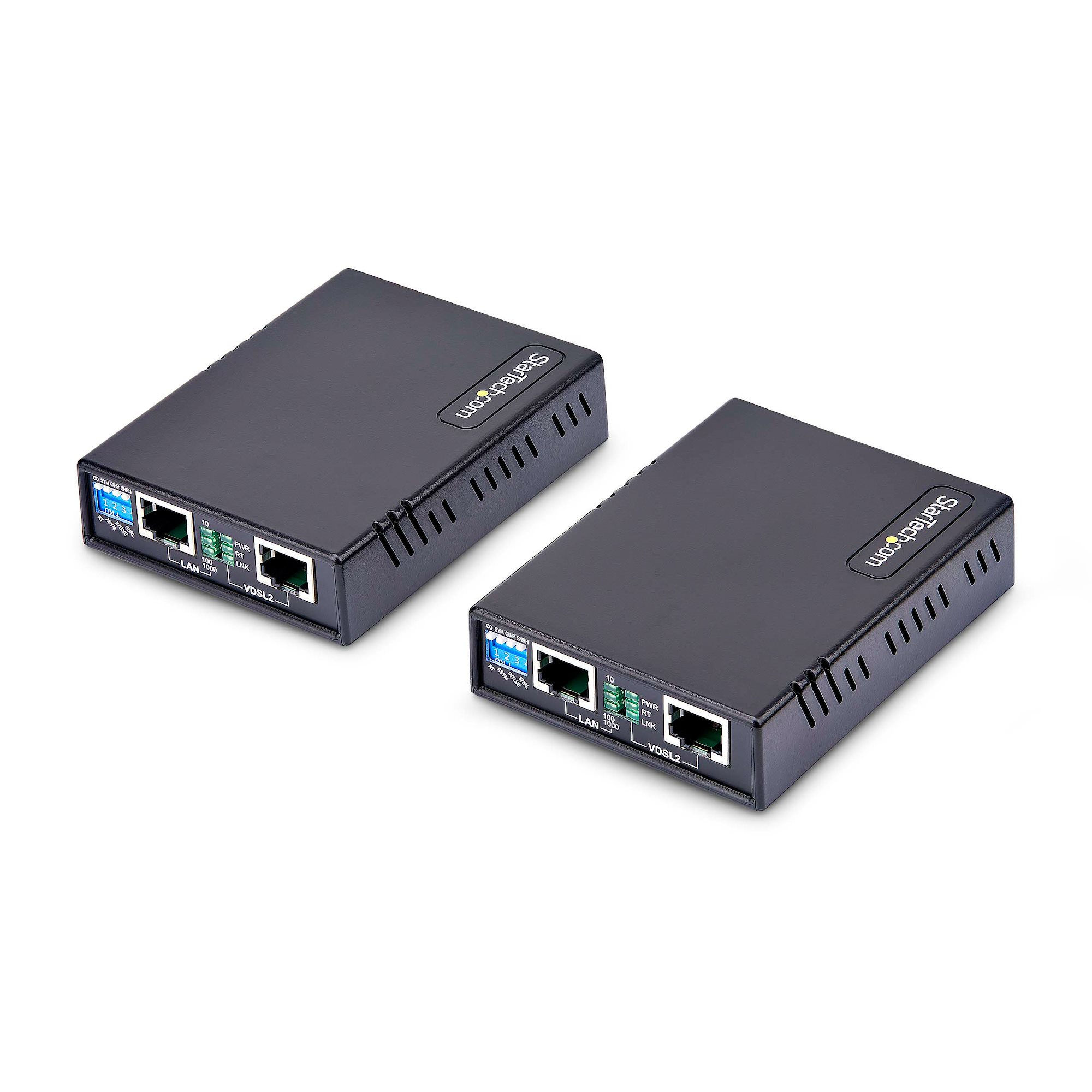

StarTech.com VDSL2 Ethernet Extender Kit over Single Pair Wire, Up to 0.6mi (1km) Long Range LAN Repeater over Phone Line/CAT5e/CAT6, Up to 300Mbps, Replacement for 110VDSLEXT
Brand: StarTech.com · SKU: STA-VDSL-LAN-EXTENDER-1G · MPN: VDSL2 Ethernet Extender Kit over Single Pair Wire, Up to 0.6mi (1km) Long Range LAN Repeater over Phone Line/CAT5e/CAT6, Up to 300Mbps, Replacement for 110VDSLEXT · Category: Networking Accessories
StarTech.com VDSL2 Ethernet Extender Kit over Single Pair Wire, Up to 0.6mi (1km) Long Range LAN Repeater over Phone Line/CAT5e/CAT6, Up to 300Mbps, Replacement for 110VDSLEXT, Network repeater, 1000 m, 300 Mbit/s, Cat5e, Cat6, RTL8685FB-CG, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3z
Specifications
| Type | Network repeater |
|---|---|
| Depth | 97 mm |
| Width | 74 mm |
| Height | 23 mm |
| Weight | 116 g |
| Chipset | RTL8685FB-CG |
| DC-in jack | Yes |
| VLAN tagging | Yes |
| Input current | 0.5 A |
| Package depth | 180 mm |
| Package width | 150 mm |
| Rack mounting | No |
| LED indicators | LAN, Power |
| Package height | 130 mm |
| Package weight | 700 g |
| Product colour | Black |
| Power plug type | Type M |
| AC input voltage | 100 - 240 V |
| Quantity per pack | 2 pc(s) |
| Quick start guide | Yes |
| RJ-45 input ports | 2 |
| Data transfer rate | 300 Mbit/s |
| RJ-45 output ports | 2 |
| AC adapter included | Yes |
| Warranty | 3-Year Warranty |
| Weight | 116 g |
| Dimensions | 74 mm x 97 mm x 23 mm |
Product Description
Extend a network up to 0.6 miles (1km) over single pair wire/phone line wire UTP Extend a network over VDSL2, using Cat5e (or better) UTP Cabling or Single-Pair (or better) Telephone Wire at distances up to 0.6mi (1km). Extend Network Connectivity Extend a network over VDSL2 using UTP, CAT5e/6 or RJ11 cabling over distances up to 0.6mi (1km). Speeds of up to 300 Mbps (aggregated) are available at shorter distances. Supports VDSL2 35b/30a/17a and features ITU-T G.993.5 G.Vectoring and G.INP technologies. Thoughtful Design The installation can be customized by using DIP switches. Choose between Master or Remote mode, Symmetric or Asymmetric mode, G.INP or Interleave mode, and fine-tune SNR with High and Low options for optimal performance. The Gigabit Ethernet Extender has LEDs that provide a visual indication of network status, including LAN speed, link status, power, and remote/master mode, allowing IT administrators to monitor and assess network connectivity. Versatile Applications The Long-Range LAN Extender can be mounted on a wall, using the included hardware, or installed on a shelf or other surface. The kit includes two power adapters, one for each VDSL Extender. The extender works with third-party VDSL2 IP DSLAMs in CPE (RT) mode and extends the network for applications such as remote office or branch locations or IP-based video solutions. The 802.1Q VLAN tag transparency preserves VLAN-tagged traffic across the extension. The StarTech.com Advantage
Key Features
StarTech.com VDSL2 Ethernet Extender Kit over Single Pair Wire, Up to 0.6mi (1km) Long Range LAN Repeater over Phone Line/CAT5e/CAT6, Up to 300Mbps, Replacement for 110VDSLEXT. Type: Network repeater, Maximum transfer distance: 1000 m, Data transfer rate: 300 Mbit/s. Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3z. Product colour: Black, LED indicators: LAN, Power, Quantity per pack: 2 pc(s). AC input voltage: 100 - 240 V, Input current: 0.5 A, Power consumption (typical): 3.8 W. Width: 74 mm, Depth: 97 mm, Height: 23 mm
Technical Deployment Advisory
Target Personnel
Network Security Admins
Infrastructure Fit
Leaf-Spine Data Center Fabrics
"Network Security Admins should consider the STA-VDSL-LAN-EXTENDER-1G for Leaf-Spine Data Center Fabrics where consistent throughput and robust connectivity are mandatory."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com VDSL2 Ethernet Extender Kit over Single Pair Wire, Up to 0.6mi (1km) Long Range LAN Repeater over Phone Line/CAT5e/CAT6, Up to 300Mbps, Replacement for 110VDSLEXT (STA-VDSL-LAN-EXTENDER-1G) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com VDSL2 Ethernet Extender Kit over Single Pair Wire, Up to 0.6mi (1km) Long Range LAN Repeater over Phone Line/CAT5e/CAT6, Up to 300Mbps, Replacement for 110VDSLEXT includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com VDSL2 Ethernet Extender Kit over Single Pair Wire, Up to 0.6mi (1km) Long Range LAN Repeater over Phone Line/CAT5e/CAT6, Up to 300Mbps, Replacement for 110VDSLEXT compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-VDSL-LAN-EXTENDER-1G.
