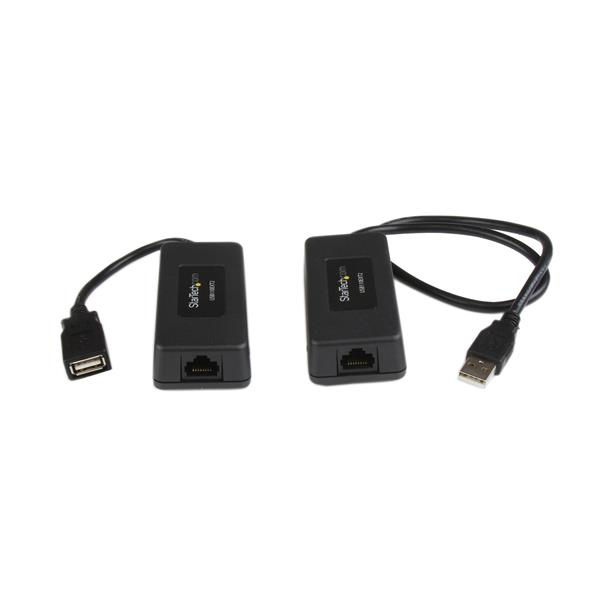

StarTech.com 1 Port USB over Cat5 / Cat6 Ethernet Extender - up to 131ft (40m)
Brand: StarTech.com · SKU: STA-USB110EXT2 · MPN: 1 Port USB over Cat5 / Cat6 Ethernet Extender - up to 131ft (40m) · Category: Networking Accessories
StarTech.com 1 Port USB over Cat5 / Cat6 Ethernet Extender - up to 131ft (40m), Network transmitter & receiver, 40 m, 12 Mbit/s, Cat5, Cat6, Black, CE, FCC, REACH
Specifications
| Type | Network transmitter & receiver |
|---|---|
| Depth | 85 mm |
| Width | 40 mm |
| Height | 25 mm |
| Manual | Yes |
| Weight | 110 g |
| Certification | CE, FCC, REACH |
| Package depth | 128 mm |
| Package width | 128 mm |
| Package height | 60 mm |
| Package weight | 170 g |
| Product colour | Black |
| Data transfer rate | 12 Mbit/s |
| Cable types supported | Cat5, Cat6 |
| USB 2.0 ports quantity | 1 |
| Compliance certificates | RoHS |
| Maximum transfer distance | 40 m |
| Storage temperature (T-T) | -20 - 70 °C |
| Ethernet LAN (RJ-45) ports | 2 |
| Harmonized System (HS) code | 85176990 |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Warranty | 3-Year Warranty |
| Weight | 110 g |
| Dimensions | 40 mm x 85 mm x 25 mm |
Product Description
Extend a USB 1.1 device up to 40m (131ft) away from a computer, over a Cat5/Cat6 cable The USB110EXT2 USB 1.1 Extender enables you to extend a USB 1.1 connection over distances of up to 40-meters (131-feet) using standard Cat5 or Cat6 UTP cabling, bypassing the normal limitation of 5m (15ft) for USB 1.1 devices and allows for the host computer system to be safely stored in a remote location. The USB Extender features a compact design with no external power requirements, making it the ideal solution for remote USB cameras, keyboards, mice or other input devices for environments where install space or access to electrical outlets is limited. Able to deliver up to 300mA of power (when supplied with 500mA from the host computer), the extender is fully compliant with the USB 1.1 specification, with support for up to 12Mbps of data bandwidth. Backed by a StarTech.com 3-year warranty and free lifetime technical support. The StarTech.com Advantage - USB 1.1 extender supports any full-speed (12 Mbps) or low-speed (1.5 Mbps) USB peripheral at up to 131 feet (40 meters) - a cost-effective solution for extending USB devices that don't require the higher bandwidth offered by USB 2.0+ - Provides more power at the remote end (up to 300mA), without external power, than most other similar USB Ethernet extenders, for more versatile device connection options - USB over Cat5/Cat6 eliminates the need to cascade expensive, inflexible and space consuming USB hubs or repeaters for extending the range of a USB device
Key Features
StarTech.com 1 Port USB over Cat5 / Cat6 Ethernet Extender - up to 131ft (40m). Type: Network transmitter & receiver, Maximum transfer distance: 40 m, Data transfer rate: 12 Mbit/s. Product colour: Black, Certification: CE, FCC, REACH. Width: 40 mm, Depth: 85 mm, Height: 25 mm. Package width: 128 mm, Package depth: 128 mm, Package height: 60 mm. Compliance certificates: RoHS
Technical Deployment Advisory
Target Personnel
Spine-Leaf Architects
Infrastructure Fit
Core Aggregation Layer
"The STA-USB110EXT2 is built for the professional requirements of Core Aggregation Layer. It supports management features essential for Spine-Leaf Architects overseeing enterprise fabrics."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 1 Port USB over Cat5 / Cat6 Ethernet Extender - up to 131ft (40m) (STA-USB110EXT2) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 1 Port USB over Cat5 / Cat6 Ethernet Extender - up to 131ft (40m) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 1 Port USB over Cat5 / Cat6 Ethernet Extender - up to 131ft (40m) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-USB110EXT2.
