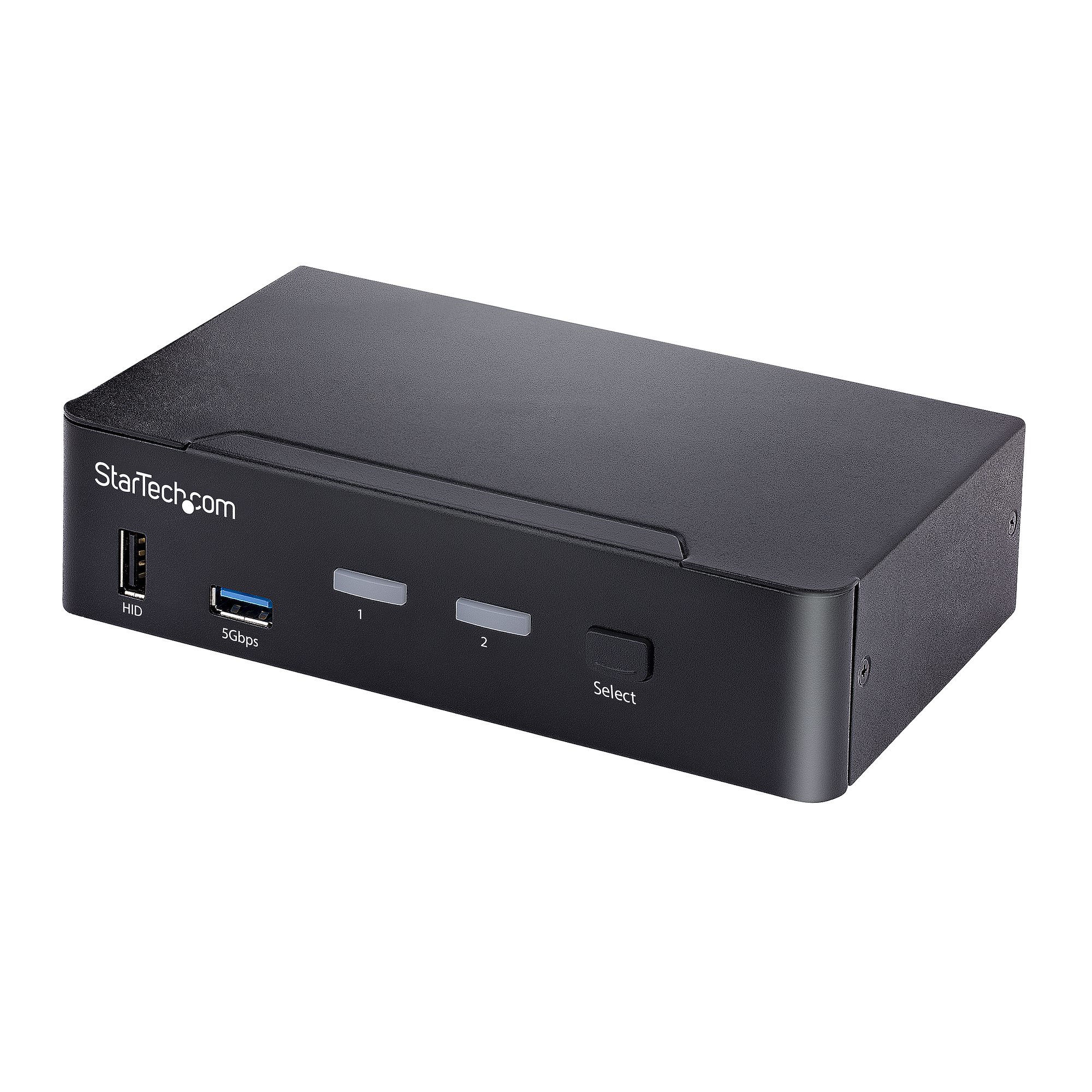

StarTech.com SV231DPUCA KVM switch Black
Brand: StarTech.com · SKU: STA-SV231DPUCA · MPN: SV231DPUCA · Category: Data Center
StarTech.com SV231DPUCA, 5120 x 1440 pixels, 4K Ultra HD, Black
Specifications
| HDCP | Yes |
|---|---|
| Depth | 160 mm |
| Width | 140 mm |
| Height | 40 mm |
| Weight | 600 g |
| Chipset | Parade - PS8461, Etron - EJ899I |
| HD type | 4K Ultra HD |
| USB hub | Yes |
| Hot keys | Yes |
| IP control | No |
| Push button | Yes |
| Rubber feet | Yes |
| Power source | AC |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort |
| Input current | 1.2 A |
| Input voltage | 100 - 240 V |
| Package depth | 238 mm |
| Package width | 184 mm |
| Rack mounting | No |
| Scan interval | 3,8,15,30 s |
| Audio channels | 2.0 |
| LED indicators | Yes |
| Output current | 3 A |
| Output voltage | 12 V |
| Warranty | 3-Year Warranty |
| Weight | 600 g |
| Dimensions | 140 mm x 160 mm x 40 mm |
Product Description
DisplayPort 1.2 KVM | 6x USB Hub Ports | Digital & Analog Audio | TAA Compliant This 2-port KVM switch combines 4K 60Hz capabilities with control of two USB-C DP Alt-mode, Thunderbolt 3, or Thunderbolt 4 computers. 4K 60Hz Resolution This 2-Port USB-C KVM switches between two USB-C enabled computers viewed over a single DisplayPort monitor. It supports up to 4K 60Hz (4:4:4) resolutions with 6x USB-A 480Mbps hub ports. This KVM is ideal for applications such as CAD/CAM, video editing, and content creation. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity. Analog and Digital Audio This USB-C DisplayPort KVM Switch supports 2-channel analog and digital audio output, as well as microphone input, through 3.5mm or USB ports. This provides the user with centralized audio control through the KVM switch. Audio profiles are selectable with hot key commands. Intuitive Control The front panel push button and hot key functions make it easy to switch between computers. Install host computers using a single USB-C cable to connect to the KVM. USB HID and USB Hub ports on the front and rear ensure convenient setup configuration and access to USB peripherals. The metal housing of the KVM Switch is suitable for many installation environments. This product is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance. The StarTech.com Advantage
Key Features
StarTech.com SV231DPUCA. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 5120 x 1440 pixels, Video bandwidth: 60 Hz. Product colour: Black, Mean time between failures (MTBF): 158000 h. Power source: AC, Input voltage: 100 - 240 V, Input current: 1.2 A. Width: 140 mm, Depth: 160 mm, Height: 40 mm
Technical Deployment Advisory
Target Personnel
NOC Managers
Infrastructure Fit
Edge Compute Deployments
"The STA-SV231DPUCA is built for the professional requirements of Edge Compute Deployments. It supports management features essential for NOC Managers overseeing enterprise fabrics."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com SV231DPUCA KVM switch Black (STA-SV231DPUCA) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com SV231DPUCA KVM switch Black includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com SV231DPUCA KVM switch Black compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-SV231DPUCA.
