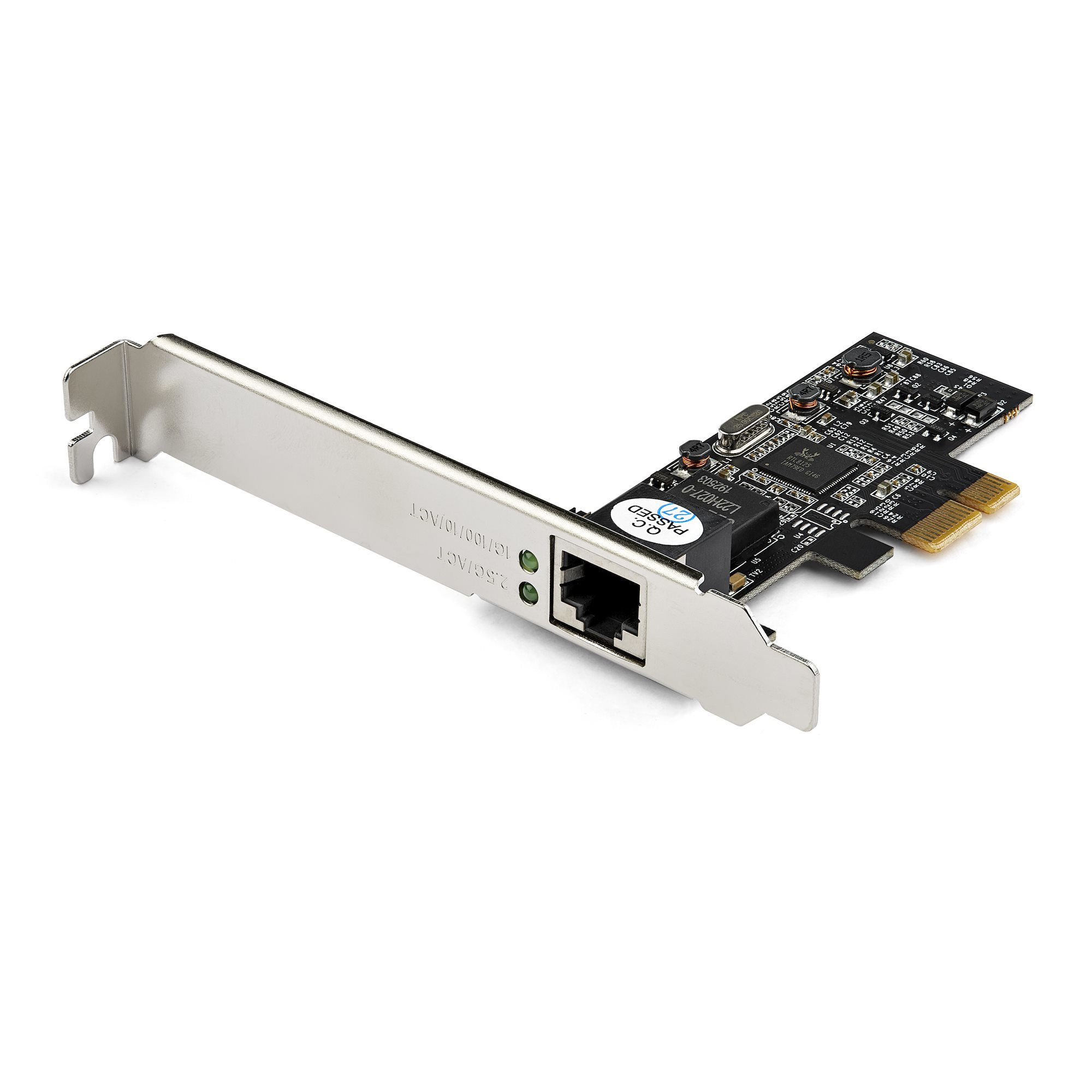

StarTech.com 2.5Gbps 2.5GBASE-T PCIe Network Card
Brand: StarTech.com · SKU: STA-ST2GPEX · MPN: 2.5Gbps 2.5GBASE-T PCIe Network Card · Category: Components
StarTech.com 2.5Gbps 2.5GBASE-T PCIe Network Card, Internal, Wired, PCI Express, Ethernet, 2500 Mbit/s, Black
Specifications
| Depth | 80 mm |
|---|---|
| Width | 120 mm |
| Height | 20 mm |
| Weight | 138 g |
| Chipset | Realtek RTL8125 |
| Internal | Yes |
| Interface | Ethernet |
| Full duplex | Yes |
| Ethernet LAN | Yes |
| Certification | CE, FCC, REACH |
| Component for | PC |
| Package depth | 142 mm |
| Package width | 170 mm |
| Auto MDIX IEEE | Yes |
| Host interface | PCI Express |
| LED indicators | Yes |
| Package height | 30 mm |
| Product colour | Black |
| Quick start guide | Yes |
| Low-profile bracket | Yes |
| Networking standards | IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Compliance certificates | RoHS |
| Connectivity technology | Wired |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Warranty | 3-Year Warranty |
| Weight | 138 g |
| Dimensions | 120 mm x 80 mm x 20 mm |
Product Description
PCI Express LAN Card | Windows ®, MacOS & Linux | Realtek RTL8125| x4 PCIe This single-port 2.5Gbps PCIe network card offers a versatile and low-cost way to deploy 2.5GbE network connectivity. It adds one copper Ethernet port to your server or desktop computer and provides Multi-Gigabit Ethernet access to your network at four speeds: 2.5 Gbps, 1G, 100Mbps, 10Mbps. Cost-Effective Multi-Gigabit Ethernet Solution The 2.5GBASE-T NIC provides additional bandwidth using your existing Ethernet infrastructure to help reduce the cost of cabling upgrades. The card enables you to connect to 2.5GBASE-T and NBASE-T equipment at network speeds of 10Mbps, 100Mbps, 1Gbps, 2.5Gbps over your CAT5e cabling (up to 100 m depending on the network configuration). Optimal Technology for Optimal Performance The network adapter card adds one Ethernet port to your workstation through a x4 PCIe slot. It features 2.5GBASE-T technology, supporting advanced Multi-Gigabit systems, including Cisco campus switches and Aruba Networks access points. The network card also supports NBASE-T and additional features including 16K Jumbo Frames, Auto-MDIX and Wake-on-LAN (WoL). Efficient Ethernet The Realtek RTL8125 chipset, compliant with IEEE 802.3az and IEEE802.3u supports the PCIe 2.0 interface for PC embedded applications. It provides up to a 250% increase in data rate over Gigabit Ethernet and requires no changes to existing cable infrastructure. The ST2GPEX is backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage - Multi-Gigabit Ethernet connectivity with four network speeds: 2.5G, 1G, 100Mbps, 10Mbps - Compatible with both 2.5GBASE-T and NBASE-T specifications - Supports 2.5Gbps network speeds on CAT5e cabling and CAT6a
Key Features
StarTech.com 2.5Gbps 2.5GBASE-T PCIe Network Card. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2500 Mbit/s. Product colour: Black
Technical Deployment Advisory
Target Personnel
Network Fabric Engineers
Infrastructure Fit
Secure Campus Backbones
"The STA-ST2GPEX is built for the professional requirements of Secure Campus Backbones. It supports management features essential for Network Fabric Engineers overseeing enterprise fabrics."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 2.5Gbps 2.5GBASE-T PCIe Network Card (STA-ST2GPEX) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 2.5Gbps 2.5GBASE-T PCIe Network Card includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 2.5Gbps 2.5GBASE-T PCIe Network Card compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-ST2GPEX.
