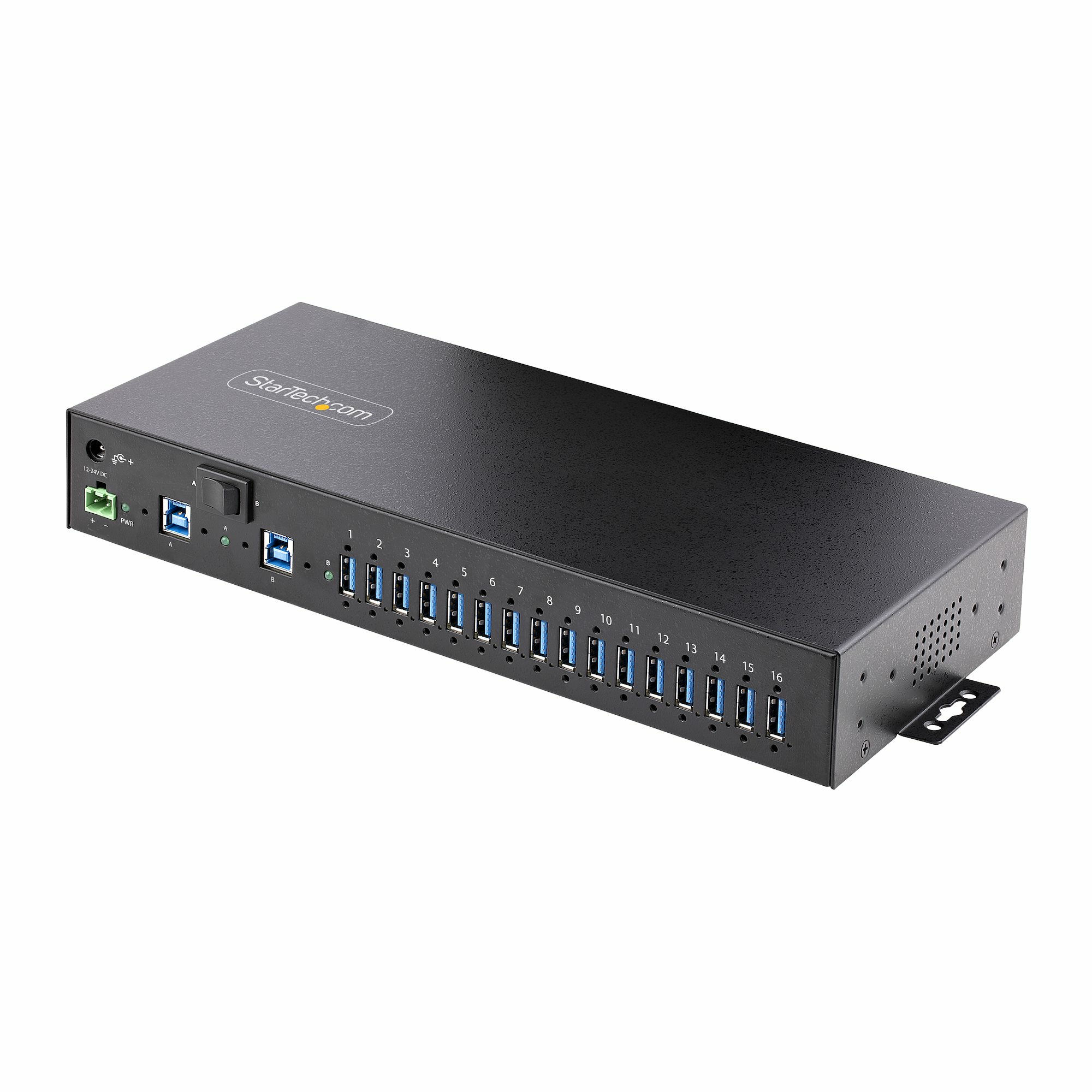

StarTech.com 16-Port Industrial USB 5Gbps Hub with Power Adapter, Metal Enclosure, Mountable, ESD Protection, Terminal Block Power, USB Charging, Dual-Host Switch - TAA
Brand: StarTech.com · SKU: STA-S5G16AINDS-USB-A-HUB · MPN: 16-Port Industrial USB 5Gbps Hub with Power Adapter, Metal Enclosure, Mountable, ESD Protection, Terminal Block Power, USB Charging, Dual-Host Switch - TAA · Category: Networking
StarTech.com 16-Port Industrial USB 5Gbps Hub with Power Adapter, Metal Enclosure, Mountable, ESD Protection, Terminal Block Power, USB Charging, Dual-Host Switch - TAA, 2 x USB 3.2 Gen 1 (3.1 Gen 1) Type-B, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, 5000 Mbit/s, Black, Steel, 15 kV
Specifications
| Weight | 1.1 kg |
|---|---|
| Chipset | Genesys Logic - GL3523 |
| DC-in jack | Yes |
| Input current | 3.5 A |
| Input voltage | 100 - 240 V |
| Package depth | 368 mm |
| Package width | 273 mm |
| Plug and Play | Yes |
| Rack mounting | Yes |
| Host interface | 2 x USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| LED indicators | Power, Status |
| Output current | 6.6 A |
| Output voltage | 24 V |
| Package height | 98 mm |
| Package weight | 1.8 kg |
| Ports quantity | 16 |
| Product colour | Black |
| Cables included | USB Type-A to USB Type-B |
| Housing material | Steel |
| Quick start guide | Yes |
| Data transfer rate | 5000 Mbit/s |
| AC adapter included | Yes |
| Terminal block port | Yes |
| Warranty | 3-Year Warranty |
| Weight | 1.1 kg |
Product Description
Add 16x USB 3.2 Gen 1 (5 Gbps) ports to two host computers, using this DIN-rail/Surface/Rack-mountable industrial hub The 16-Port Industrial USB 5Gbps Hub with Power Adapter features 16 downstream USB-A ports. The rugged all-metal construction is suitable for use in industrial rackmount applications. Level-4 Electrostatic Discharge (ESD) protection safeguards against 15kV Air / 8kV Contact discharges. The hub features a 2-port host switch, enabling users to switch between two host devices. Engineered for Use in Industrial Environments This USB hub is built to withstand harsh industrial environments. It features a rugged steel housing that protects against physical hazards such as drops and impacts. It is equipped with Level-4 ESD protection, with 15kV air and 8kV contact discharge ratings, to safeguard against damage caused by static electricity. Three Mounting Options The 16-Port USB hub can be attached to a surface (e.g., atop/underneath a desk or wall mounted), rack mounted, or DIN-rail mounted. The 19" rackmount rails are compliant with EIA-310-D standards, ensuring compatibility with standard racks. These rails can be used to install the USB hub into 1U of rack space for applications in data centers and server rooms. Mount industrial automation and control equipment in an electrical enclosure or cabinet, using the standard DIN-rail (Top Hat/TH) mounting hardware. Power Adapter Included This USB hub includes a 160W power adapter that connects to the 2-wire terminal block connector. When connected to the power adapter, the USB hub supports USB Battery Charging Specification 1.2 (BC 1.2) with 120W shared across all ports. Ports are grouped in 8 pairs (1&2, 3&4, 5&6, 7&8, 9&10, 11&12, 13&14, 15&16) and each pair supports a maximum of 3.0A/15W combined (1.5A/7.5W per port), or max 2.0A/10W per port when only one of both ports is used. For optional power redundancy, the USB hub features a secondary power input where a barrel-power adapter (not included) can be connected. The barrel-power input supports a 12-to-24-volt input range, and can be ideal for mission critical applications. Dual-Host Switch The USB Hub connects to two desktop or laptop computers, and features a dual-host switch enables easy toggling between the host devices. Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that is compatible with a wide variety of IT connectivity accessories. This product utilizes the USB Event Monitoring utility. Use this utility to track and log connected USB devices. For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools The StarTech.com Advantage
Key Features
StarTech.com 16-Port Industrial USB 5Gbps Hub with Power Adapter, Metal Enclosure, Mountable, ESD Protection, Terminal Block Power, USB Charging, Dual-Host Switch - TAA. Host interface: 2 x USB 3.2 Gen 1 (3.1 Gen 1) Type-B, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Data transfer rate: 5000 Mbit/s, Product colour: Black, Housing material: Steel. Power consumption (max): 158.4 W, Input voltage: 100 - 240 V, Input current: 3.5 A. Weight: 1.1 kg. Package width: 273 mm, Package depth: 368 mm, Package height: 98 mm
