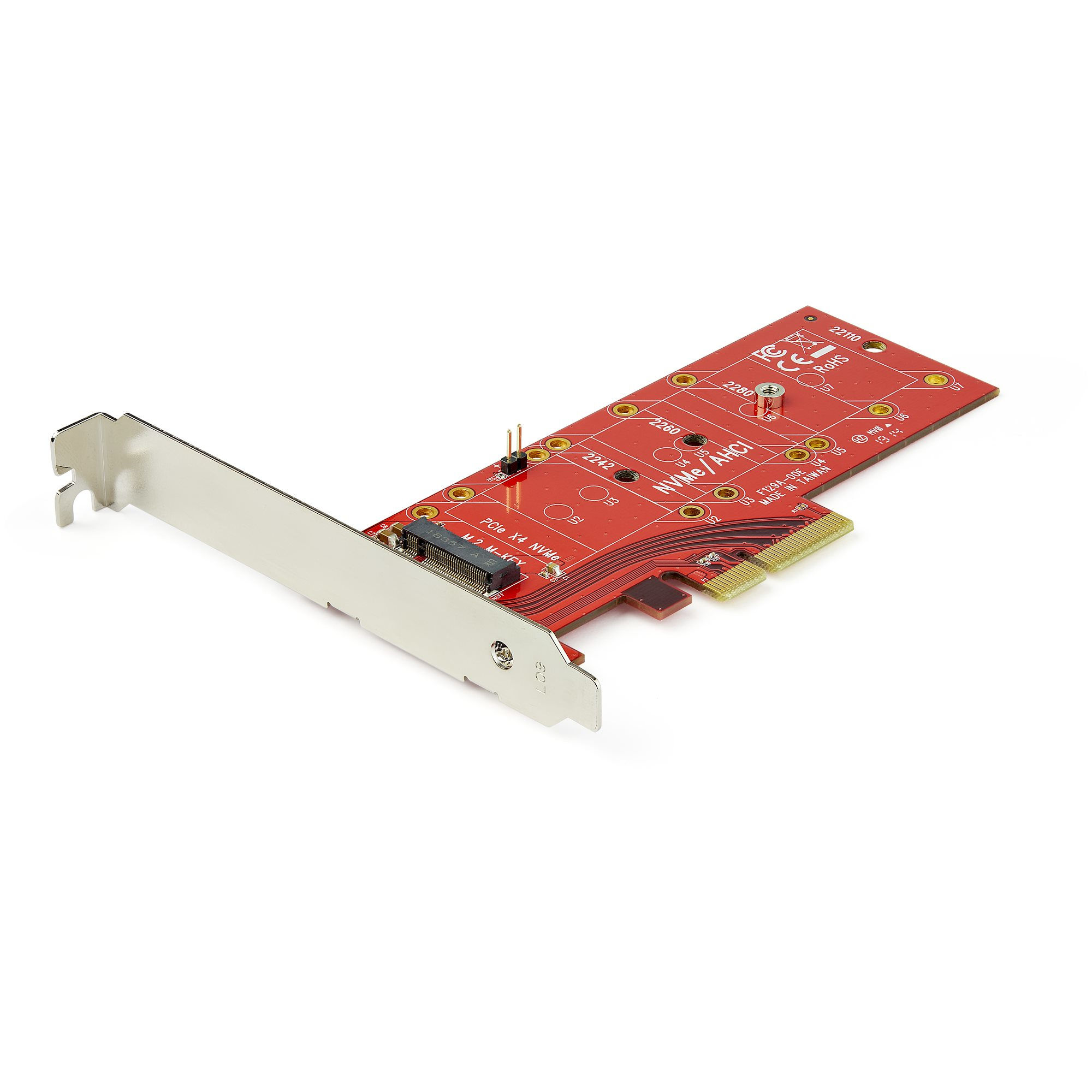

StarTech.com x4 PCI Express 3.0 to M.2 PCIe NVMe SSD Adapter
Brand: StarTech.com · SKU: STA-PEX4M2E1 · MPN: x4 PCI Express 3.0 to M.2 PCIe NVMe SSD Adapter · Category: Storage
StarTech.com x4 PCI Express 3.0 to M.2 PCIe NVMe SSD Adapter, PCIe, M.2, Full-height / Low-profile, PCI 3.0, Red, 8 Gbit/s
Specifications
| Depth | 179 mm |
|---|---|
| Width | 121 mm |
| Height | 184 mm |
| Weight | 47 g |
| Hot-swap | No |
| Internal | Yes |
| Package depth | 159 mm |
| Package width | 219 mm |
| Plug and Play | Yes |
| Host interface | PCIe |
| LED indicators | Yes |
| Package height | 46 mm |
| Package weight | 151 g |
| Product colour | Red |
| Output interface | M.2 |
| Compliance certificates | CE, RoHS |
| Expansion card standard | PCI 3.0 |
| Data transfer rate (max) | 8 Gbit/s |
| Quick installation guide | Yes |
| Master (outer) case width | 380 mm |
| Storage temperature (T-T) | -25 - 70 °C |
| Expansion card form factor | Full-height / Low-profile |
| Master (outer) case height | 310 mm |
| Master (outer) case length | 500 mm |
| Warranty | 3-Year Warranty |
| Weight | 47 g |
| Dimensions | 121 mm x 179 mm x 184 mm |
Product Description
Connect a PCIe M.2 SSD (NVMe or AHCI) to your computer through PCI Express for ultra-fast data access Get ultra-fast data access by adding a PCIe M.2 SSD to your existing computer. This adapter lets you add a high-speed, 4-lane M.2 SSD (PCIe-based), such as a Samsung 950 Pro or Samsung SM 951, to a PC with an available x4 PCI Express expansion slot. You can mount the PCIe M.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage. Boost your system speed and performance The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an M.2 PCIe-based SSD (NVMe or AHCI) through ultra-fast x4 PCIe. The adapter is compatible with PCIe 3.0 motherboards and is also backward compatible with PCIe 2.0 and PCIe 1.0. With the M.2 PCIe based drive in place, the adapter gives your computer a significant speed boost. Supports PCIe M.2 SSDs The adapter supports PCIe 3.0 x4 NVMe (M Key) and PCIe-AHCI M.2 SSDs including 2242, 2260, 2280, and 22110 drives. The expansion slot adapter supports the most common drive sizes including 110 mm, 80 mm, 60 mm and 42 mm. Easy to install The expansion card is equipped with a full-profile bracket and includes a half-height/low-profile bracket, for installation in small form-factor computers. The PEX4M2E1 is backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage
Key Features
StarTech.com x4 PCI Express 3.0 to M.2 PCIe NVMe SSD Adapter. Host interface: PCIe, Output interface: M.2, Expansion card form factor: Full-height / Low-profile. Product colour: Red. Data transfer rate (max): 8 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High.... Width: 121 mm, Depth: 179 mm, Height: 184 mm
Technical Deployment Advisory
Target Personnel
SAN/NAS Specialists
Infrastructure Fit
Big Data Ingestion Clusters
"Engineered for high-throughput data paths or critical backup cycles, the STA-PEX4M2E1 provides the data integrity required for Big Data Ingestion Clusters. SAN/NAS Specialists will benefit from its performance consistency."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com x4 PCI Express 3.0 to M.2 PCIe NVMe SSD Adapter (STA-PEX4M2E1) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com x4 PCI Express 3.0 to M.2 PCIe NVMe SSD Adapter includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com x4 PCI Express 3.0 to M.2 PCIe NVMe SSD Adapter compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-PEX4M2E1.
