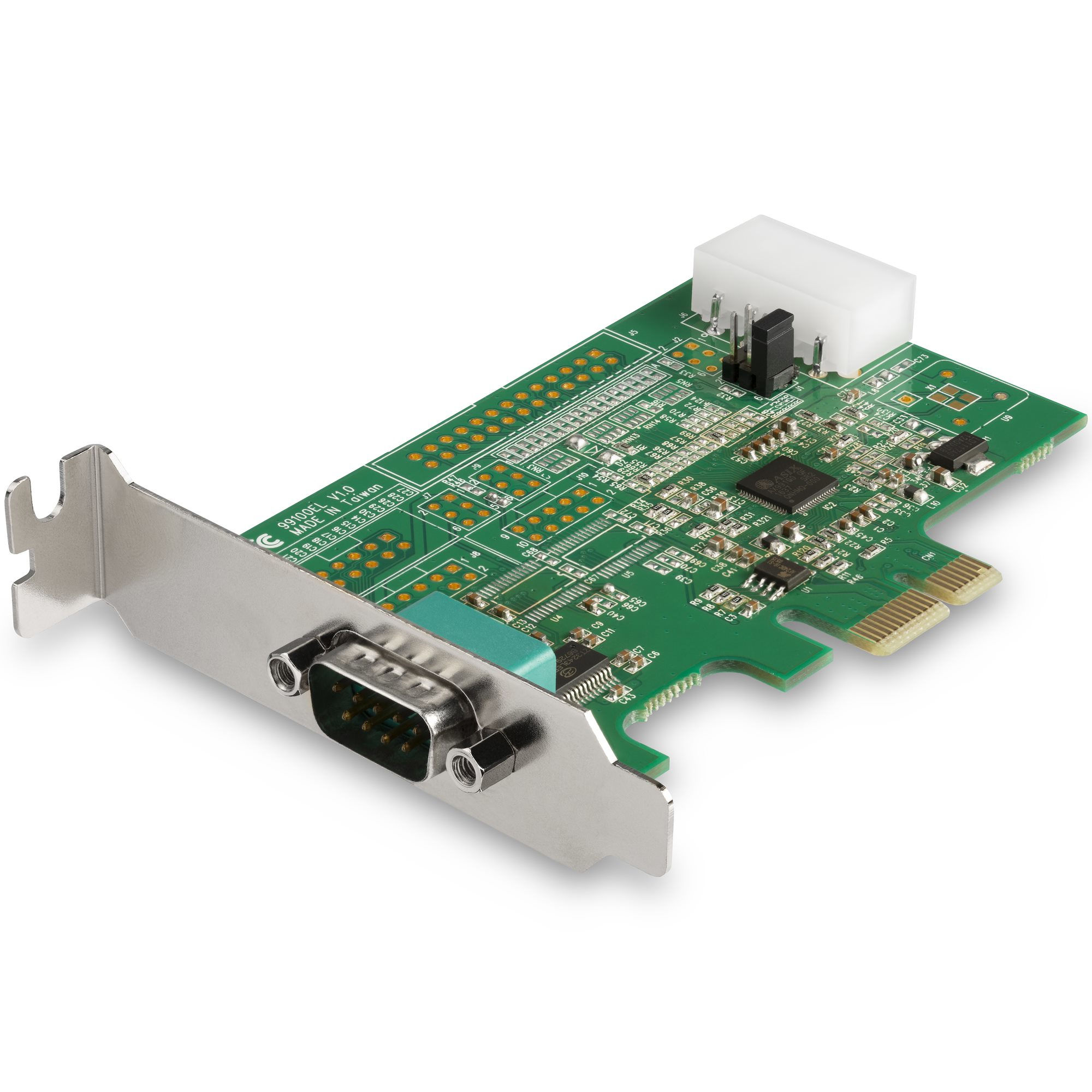

StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux
Brand: StarTech.com · SKU: STA-PEX1S953LP · MPN: 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux · Category: Components
StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux, PCIe, Serial, PCIe 1.1, RS-232, Green, 277385 h
Specifications
| Depth | 98 mm |
|---|---|
| Width | 67 mm |
| Height | 150 mm |
| Manual | Yes |
| Weight | 44 g |
| Chipset | Asix AX99100 |
| Internal | Yes |
| Quantity | 1 |
| Baud rate | 921.4 Kbit/s |
| Data bits | 5, 6, 7, 8, 9 |
| Stop bits | 1, 1.5, 2 |
| Parity bit | Even, Mark, No, Odd, Space |
| Package depth | 170 mm |
| Package width | 142 mm |
| Host interface | PCIe |
| Package height | 30 mm |
| Package weight | 112 g |
| Product colour | Green |
| Output interface | Serial |
| Flow Control type | No, RTS/CTS, XON/XOFF |
| Flow control support | Yes |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Compliance certificates | CE, RoHS |
| Warranty | 3-Year Warranty |
| Weight | 44 g |
| Dimensions | 67 mm x 98 mm x 150 mm |
Product Description
PCI Express to Serial Adapter | 921.4Kbps | Windows® and Linux® Compatible This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps. Maximum Compatibility With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor. Experience Optimal Technology This PCIe to serial adapter supports the following features: • Compatible with industry standard 16950 UART • Supports max baud rate of up-to 921.4Kbps • Provides 5/12V power output on Pin 9 when external power is connected • 128-byte depth FIFO per transmitter and receiver • Supports 9, 8, 7, 6, 5 data bits • Asix AX99100 chipset • PCI Express 1.1 compliant PEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support. The StarTech.com Advantage
Key Features
StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux. Host interface: PCIe, Output interface: Serial, Expansion card standard: PCIe 1.1. Product colour: Green, Mean time between failures (MTBF): 277385 h. Chipset: Asix AX99100, Baud rate: 921.4 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 67 mm, Depth: 98 mm, Height: 150 mm
Technical Deployment Advisory
Target Personnel
Systems Maintenance Techs
Infrastructure Fit
Mid-Lifecycle Capacity Expansion
"The STA-PEX1S953LP is the primary choice for Systems Maintenance Techs performing critical Mid-Lifecycle Capacity Expansion tasks. It meets all OEM performance specifications for StarTech.com systems."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux (STA-PEX1S953LP) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-PEX1S953LP.
