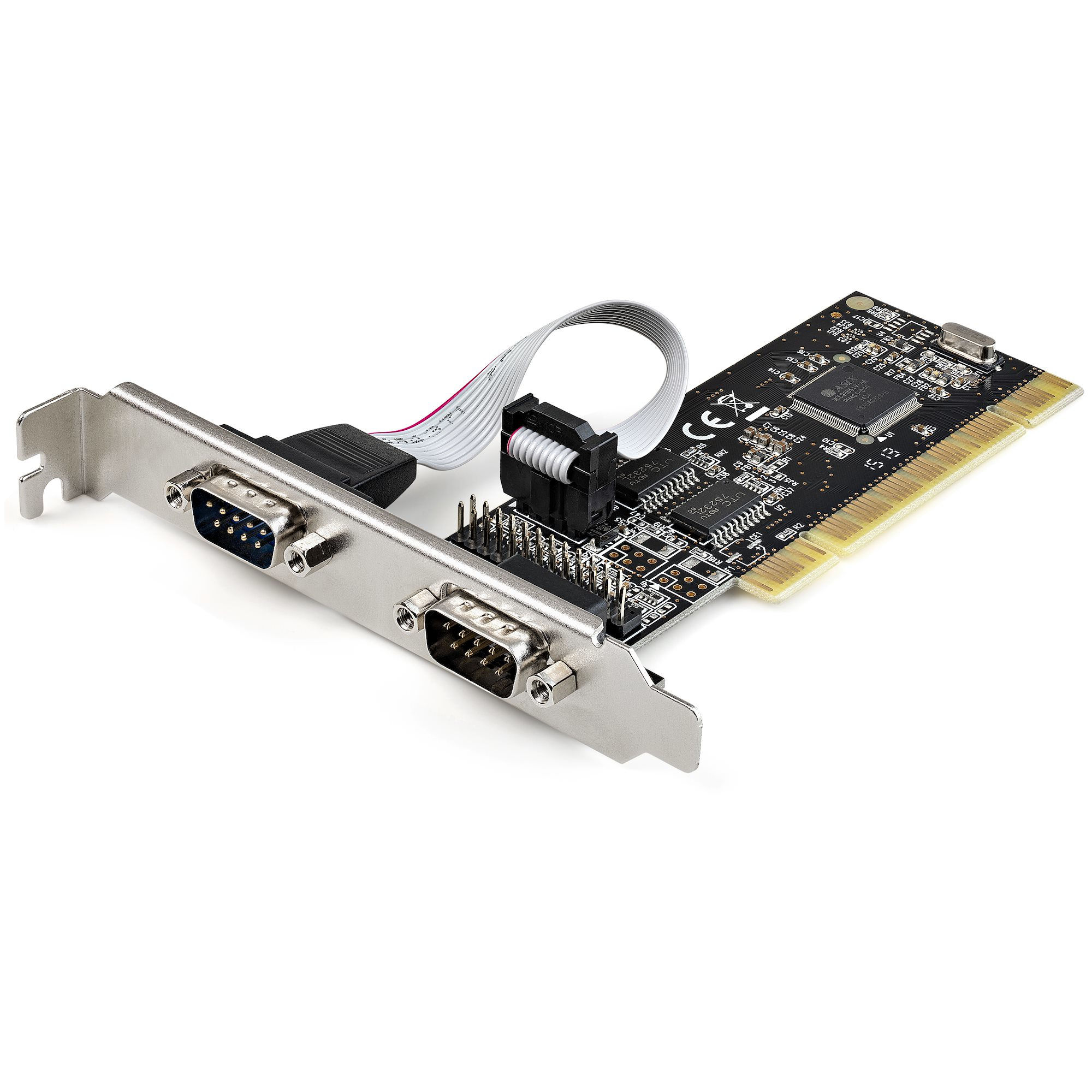

StarTech.com PCI Serial Parallel Combo Card with Dual Serial RS232 Ports (DB9) & 1x Parallel LPT Port (DB25) - PCI Combo Adapter Card - PCI Expansion Card Controller - PCI to Printer Card
Brand: StarTech.com · SKU: STA-PCI2S1P2 · MPN: PCI Serial Parallel Combo Card with Dual Serial RS232 Ports (DB9) & 1x Parallel LPT Port (DB25) - PCI Combo Adapter Card - PCI Expansion Card Controller - PCI to Printer Card · Category: Components
StarTech.com PCI Serial Parallel Combo Card with Dual Serial RS232 Ports (DB9) & 1x Parallel LPT Port (DB25) - PCI Combo Adapter Card - PCI Expansion Card Controller - PCI to Printer Card, PCI/PCI-X, Serial, Full-height / Low-profile, RS-232, Black, Asix - MCS9865
Specifications
| Depth | 134 mm |
|---|---|
| Width | 21.6 mm |
| Height | 120 mm |
| Weight | 141 g |
| Chipset | Asix - MCS9865 |
| Internal | Yes |
| Baud rate | 115.2 Kbit/s |
| Data bits | 5, 6, 7, 8, 9 |
| Stop bits | 1, 1.5, 2 |
| Parity bit | Even, Mark, No, Odd, Space |
| User guide | Yes |
| Package depth | 170 mm |
| Package width | 142 mm |
| Host interface | PCI/PCI-X |
| Package height | 30 mm |
| Package weight | 190 g |
| Product colour | Black |
| Output interface | Serial |
| Flow Control type | No, RTS/CTS, XON/XOFF |
| Serial interface type | RS-232 |
| Serial ports quantity | 2 |
| Compliance certificates | CE, RoHS |
| Data transfer rate (max) | 0.0015 Gbit/s |
| Master (outer) case width | 360 mm |
| Warranty | 3-Year Warranty |
| Weight | 141 g |
| Dimensions | 21.6 mm x 134 mm x 120 mm |
Product Description
PCI | RS-232 Serial | IEEE 1284 Parallel | Lifetime Warranty This PCI 1x Parallel and 2x Serial Combo Card installs into a single PCI slot in your computer (occupying 2 to 3 expansion slots, depending on profile), and adds a DB25 IEEE 1284 parallel port and two DB9 RS 232 serial ports to your system. Adds an LPT Parallel Port The controller card features an Asix MCS9865 chip and enables you to connect a DB25 parallel device to your desktop computer. The parallel port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes. The parallel (LPT) port supports SPP/Byte/Nibble/ECP/EPP modes and IEEE 1284 for speeds up to 1.5Mbps. Adds a COM Serial Port The Asix MCS9865 chip also enables you to connect two DB9 devices using the same controller card, compatible with industry standard 16C550 UART. The serial ports are ideal for connecting point of sale terminals, serial printers, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners and oscilloscopes. The serial (COM) ports support bi-directional RS232 speeds up to 115.2Kbps per port, available 256 byte FIFO buffer & 9th data bit. Wide Installation Compatibility With broad OS support, including for Windows (7 and up), and Linux (2.6.x to 5.x LTS versions only), this PCI serial/parallel card is easy to integrate into mixed environments. The card comes pre-configured with 2x full-profile brackets, and includes optional 3x low-profile brackets, so installation is easy regardless of the case form factor. PCI2S1P2 is backed by a StarTech.com lifetime warranty with free 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years. The StarTech.com Advantage
Key Features
StarTech.com PCI Serial Parallel Combo Card with Dual Serial RS232 Ports (DB9) & 1x Parallel LPT Port (DB25) - PCI Combo Adapter Card - PCI Expansion Card Controller - PCI to Printer Card. Host interface: PCI/PCI-X, Output interface: Serial, Expansion card form factor: Full-height / Low-profile. Product colour: Black. Chipset: Asix - MCS9865, Data transfer rate (max): 0.0015 Gbit/s, Baud rate: 115.2 Kbit/s. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows.... Width: 21.6 mm, Depth: 134 mm, Height: 120 mm
Technical Deployment Advisory
Target Personnel
IT Procurement Officers
Infrastructure Fit
Mission-Critical Parts Replacement
"For Mission-Critical Parts Replacement, using verified parts like the STA-PCI2S1P2 prevents downtime and maintains the service integrity expected by IT Procurement Officers."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com PCI Serial Parallel Combo Card with Dual Serial RS232 Ports (DB9) & 1x Parallel LPT Port (DB25) - PCI Combo Adapter Card - PCI Expansion Card Controller - PCI to Printer Card (STA-PCI2S1P2) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com PCI Serial Parallel Combo Card with Dual Serial RS232 Ports (DB9) & 1x Parallel LPT Port (DB25) - PCI Combo Adapter Card - PCI Expansion Card Controller - PCI to Printer Card includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com PCI Serial Parallel Combo Card with Dual Serial RS232 Ports (DB9) & 1x Parallel LPT Port (DB25) - PCI Combo Adapter Card - PCI Expansion Card Controller - PCI to Printer Card compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-PCI2S1P2.
