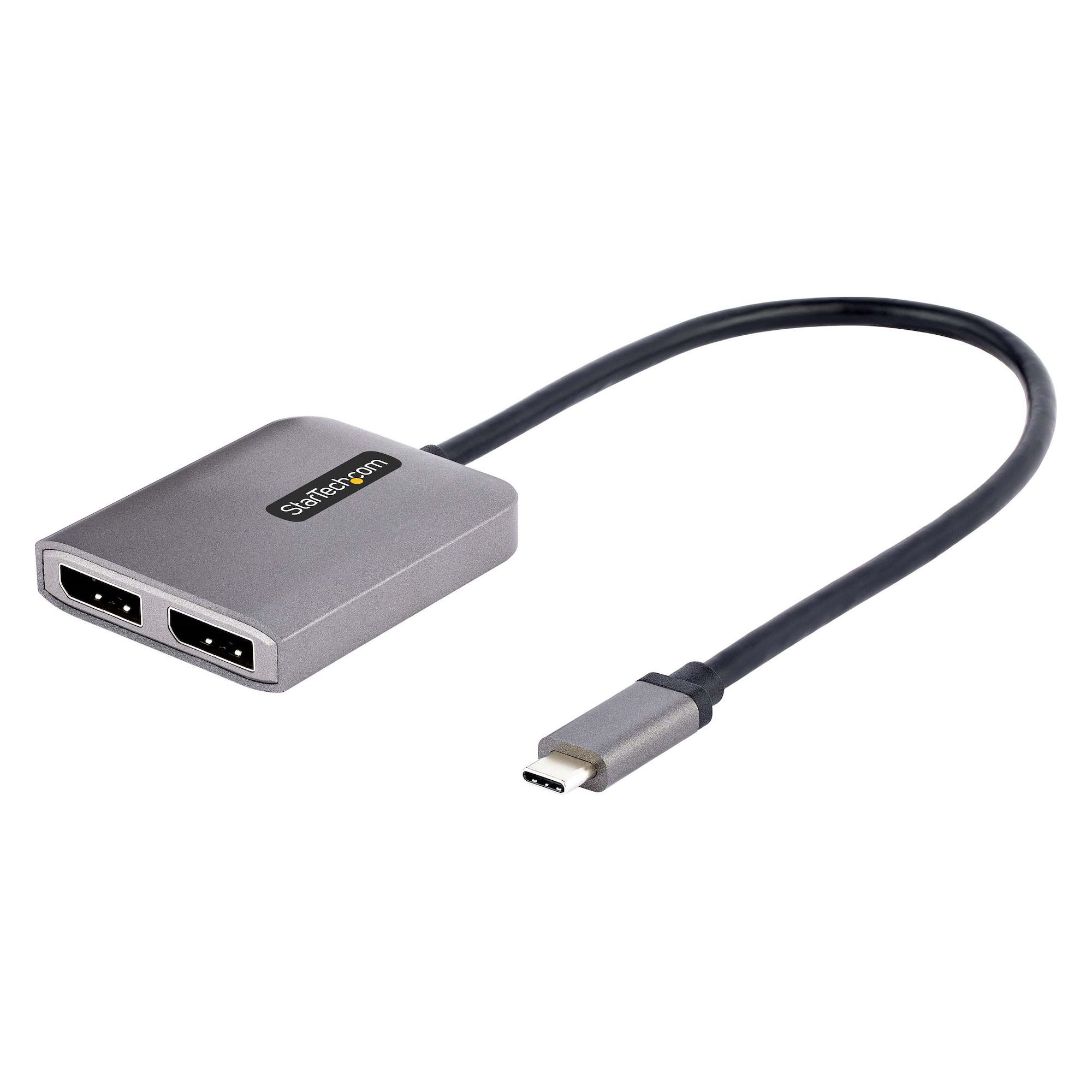

StarTech.com USB-C to Dual Displayport 1.4 Adapter, USB Type-C Multi-Monitor MST Hub, Dual 5K 60Hz DP Laptop Display Extender / Splitter, HDR, Extra-Long Built-In Cable - Windows Only
Brand: StarTech.com · SKU: STA-MST14CD122DP · MPN: USB-C to Dual Displayport 1.4 Adapter, USB Type-C Multi-Monitor MST Hub, Dual 5K 60Hz DP Laptop Display Extender / Splitter, HDR, Extra-Long Built-In Cable - Windows Only · Category: Components
StarTech.com USB-C to Dual Displayport 1.4 Adapter, USB Type-C Multi-Monitor MST Hub, Dual 5K 60Hz DP Laptop Display Extender / Splitter, HDR, Extra-Long Built-In Cable - Windows Only, USB Type-C, DisplayPort output, 4096 x 2160 pixels
Specifications
| HDCP | Yes |
|---|---|
| Chipset | Synaptics - VMM5220, VIA/VLI - VL103 |
| DVI output | No |
| HDMI output | No |
| HDCP version | 2.2 |
| Package depth | 170 mm |
| Package width | 142 mm |
| Package height | 30 mm |
| Package weight | 108.8 g |
| Product colour | Grey |
| Housing material | Plastic |
| USB cable length | 0.3 m |
| DisplayPort output | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| USB connector type | USB Type-C |
| DisplayPort version | 1.4 |
| USB connector gender | Male |
| Audio output channels | 2.0 channels |
| DisplayPorts quantity | 2 |
| Compliance certificates | CE, RoHS |
| Master (outer) case width | 473 mm |
| Storage temperature (T-T) | -40 - 70 °C |
| Sustainability compliance | Yes |
| USB connector form factor | Straight |
| Warranty | 3-Year Warranty |
Product Description
Create a high-performance dual-display workstation by connecting a USB Type-C™ device to two independent DisplayPort™ monitors This USB-C to DisplayPort MST Hub enables a connection to two DisplayPort monitors, using a DisplayPort Alternate Mode (DP Alt Mode) capable USB-C host device. 4K at 60Hz with HDR Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into two independent signals, one for each DisplayPort-enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and luminosity. Host Connection Maximum Resolution Output 1 Maximum Resolution Output 2 Example Host Processor/Graphics DisplayPort 1.4 with DSC 5K 60Hz 5K 60Hz *Intel 11th Gen with DSC Intel 12th Gen Processors & Later Discrete AMD & Nvidia GPU's that support DSC DisplayPort 1.4 4K 60Hz 4K 60Hz Intel 10th Gen (Ice Lake Only) Intel 11th Gen Processors & Later Discrete AMD and Nvidia GPU's that support DP 1.4 DisplayPort 1.2 4K 30Hz 4K 30Hz Intel 8th - 10th Gen Processors & Later Multitasking Made Easy Configure the dual-DP displays in extended or mirrored mode. Create a high-performance workstation by adding two independent 4K 60Hz displays. This empowers increased multi-tasking across your organization, resulting in increased productivity. Hassle-Free Setup Windows devices supporting DP Alt Mode over USB-C feature native support for MST. This USB-C to DP hub is compatible Thunderbolt 3/4 and USB4-enabled Windows devices with 11th generation (and later) processors. Plug-and-play installation, with no drivers or software required. The 12in (30cm) built-on cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is bus-powered, requiring no external power source. This product is backed for 3 years, including free lifetime 24/5 multilingual technical assistance. The StarTech.com Advantage
Key Features
StarTech.com USB-C to Dual Displayport 1.4 Adapter, USB Type-C Multi-Monitor MST Hub, Dual 5K 60Hz DP Laptop Display Extender / Splitter, HDR, Extra-Long Built-In Cable - Windows Only. USB connector type: USB Type-C, USB connector gender: Male, USB connector form factor: Straight. Product colour: Grey, Housing material: Plastic. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10.... USB cable length: 0.3 m. Package width: 142 mm, Package depth: 170 mm, Package height: 30 mm
Technical Deployment Advisory
Target Personnel
Field Engineers
Infrastructure Fit
Server Fleet Uniformity
"For Server Fleet Uniformity, using verified parts like the STA-MST14CD122DP prevents downtime and maintains the service integrity expected by Field Engineers."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com USB-C to Dual Displayport 1.4 Adapter, USB Type-C Multi-Monitor MST Hub, Dual 5K 60Hz DP Laptop Display Extender / Splitter, HDR, Extra-Long Built-In Cable - Windows Only (STA-MST14CD122DP) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com USB-C to Dual Displayport 1.4 Adapter, USB Type-C Multi-Monitor MST Hub, Dual 5K 60Hz DP Laptop Display Extender / Splitter, HDR, Extra-Long Built-In Cable - Windows Only includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com USB-C to Dual Displayport 1.4 Adapter, USB Type-C Multi-Monitor MST Hub, Dual 5K 60Hz DP Laptop Display Extender / Splitter, HDR, Extra-Long Built-In Cable - Windows Only compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-MST14CD122DP.
