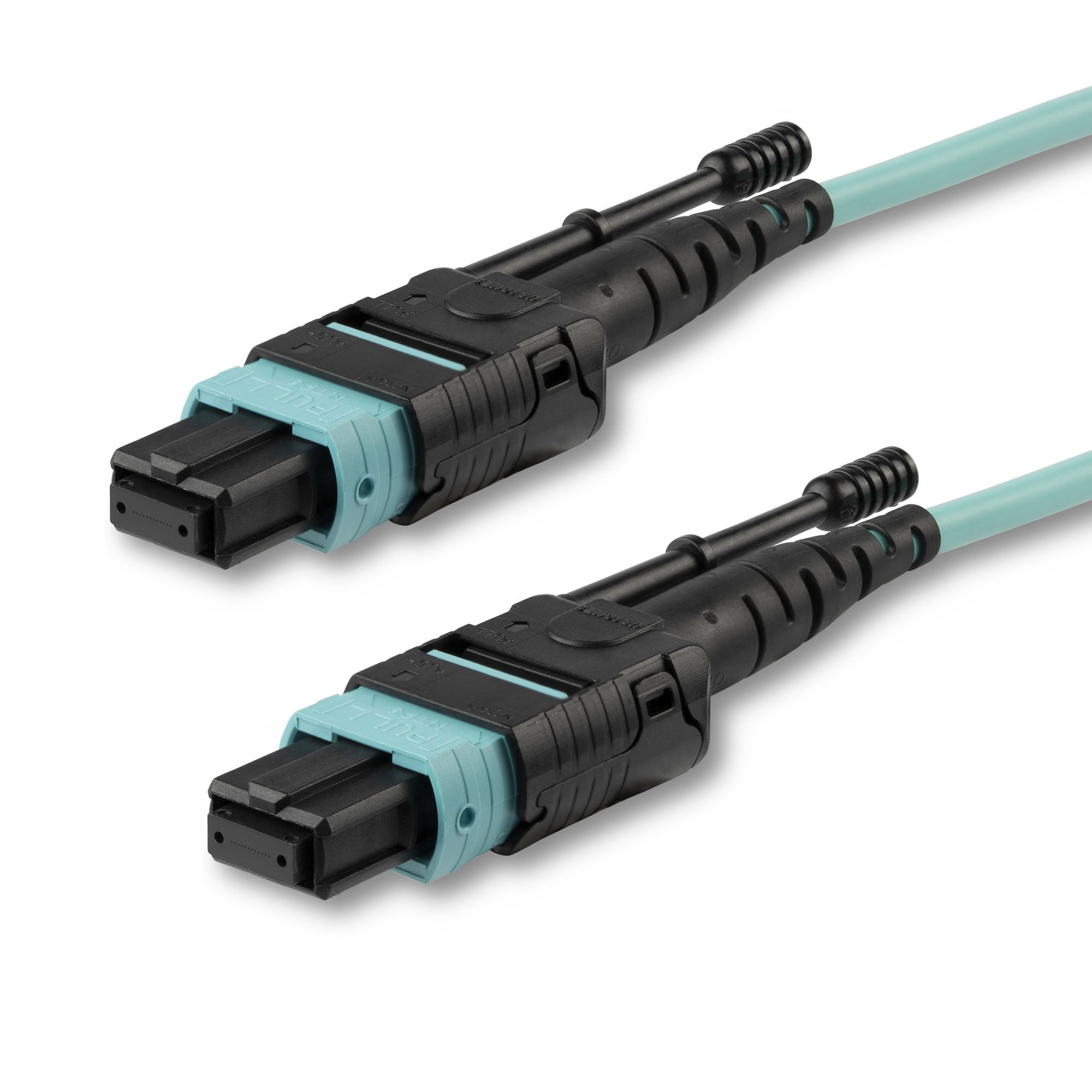

StarTech.com 10m (30ft) MTP(F)/PC OM3 Multimode Fiber Optic Cable, 12F Type-A, OFNP Plenum, 50/125µm LOMMF, 40G Networks, Low Insertion Loss, MPO Fiber Jumper Cord
Brand: StarTech.com · SKU: STA-MPO12PL10M · MPN: 10m (30ft) MTP(F)/PC OM3 Multimode Fiber Optic Cable, 12F Type-A, OFNP Plenum, 50/125µm LOMMF, 40G Networks, Low Insertion Loss, MPO Fiber Jumper Cord · Category: Networking
StarTech.com 10m (30ft) MTP(F)/PC OM3 Multimode Fiber Optic Cable, 12F Type-A, OFNP Plenum, 50/125µm LOMMF, 40G Networks, Low Insertion Loss, MPO Fiber Jumper Cord, 10 m, OM3, MPO/MTP, MPO/MTP
Specifications
| Weight | 86 g |
|---|---|
| Connector 1 | MPO/MTP |
| Connector 2 | MPO/MTP |
| Cable length | 10 m |
| Core diameter | 50 µm |
| Package depth | 215 mm |
| Package width | 200 mm |
| Package height | 19 mm |
| Package weight | 96 g |
| Product colour | Aqua colour |
| Fibre optic type | OM3 |
| Cladding diameter | 125 µm |
| Quantity per pack | 1 pc(s) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Data transfer rate | 40 Gbit/s |
| Fiber mode structure | Multi-mode |
| Compliance certificates | CE, RoHS |
| Sustainability compliance | Yes |
| Harmonized System (HS) code | 85447000 |
| Warranty | 3-Year Warranty |
| Weight | 86 g |
Product Description
Plenum Rated | OFNP Fiber | Ideal for SANs, data servers, QSFP+ This MPO/MTP fiber optic cable houses 12 fibers and lets you interface between different networking devices of varying speeds. For example, you can set up a one-to-one connection between two 40Gbps switches or servers. Alternatively, you can connect a 40Gbps switch and break out the 40Gbps into six duplex 10Gbps LC connections on a patch panel or network cassette, which then fans out to individual 10Gbps devices. The MTP connector provides twelve times the density of an SC connector and saves circuit card and rack space. Plus, the push-and-pull tabs optimize accessibility by letting you install or remove the connectors with one hand without using additional tools. The MTP to MTP cable is housed in a plenum-rated jacket and is ideal for in-wall installations, or anywhere CMP fire rating is required. Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag. The MPO12PL10M from StarTech.com is backed by a lifetime warranty. The StarTech.com Advantage
Key Features
StarTech.com 10m (30ft) MTP(F)/PC OM3 Multimode Fiber Optic Cable, 12F Type-A, OFNP Plenum, 50/125µm LOMMF, 40G Networks, Low Insertion Loss, MPO Fiber Jumper Cord. Cable length: 10 m, Fibre optic type: OM3, Connector 1: MPO/MTP, Connector 2: MPO/MTP, Core diameter: 50 µm
Technical Deployment Advisory
Target Personnel
Spine-Leaf Architects
Infrastructure Fit
Core Aggregation Layer
"Spine-Leaf Architects should consider the STA-MPO12PL10M for Core Aggregation Layer where consistent throughput and robust connectivity are mandatory."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 10m (30ft) MTP(F)/PC OM3 Multimode Fiber Optic Cable, 12F Type-A, OFNP Plenum, 50/125µm LOMMF, 40G Networks, Low Insertion Loss, MPO Fiber Jumper Cord (STA-MPO12PL10M) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 10m (30ft) MTP(F)/PC OM3 Multimode Fiber Optic Cable, 12F Type-A, OFNP Plenum, 50/125µm LOMMF, 40G Networks, Low Insertion Loss, MPO Fiber Jumper Cord includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 10m (30ft) MTP(F)/PC OM3 Multimode Fiber Optic Cable, 12F Type-A, OFNP Plenum, 50/125µm LOMMF, 40G Networks, Low Insertion Loss, MPO Fiber Jumper Cord compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-MPO12PL10M.
