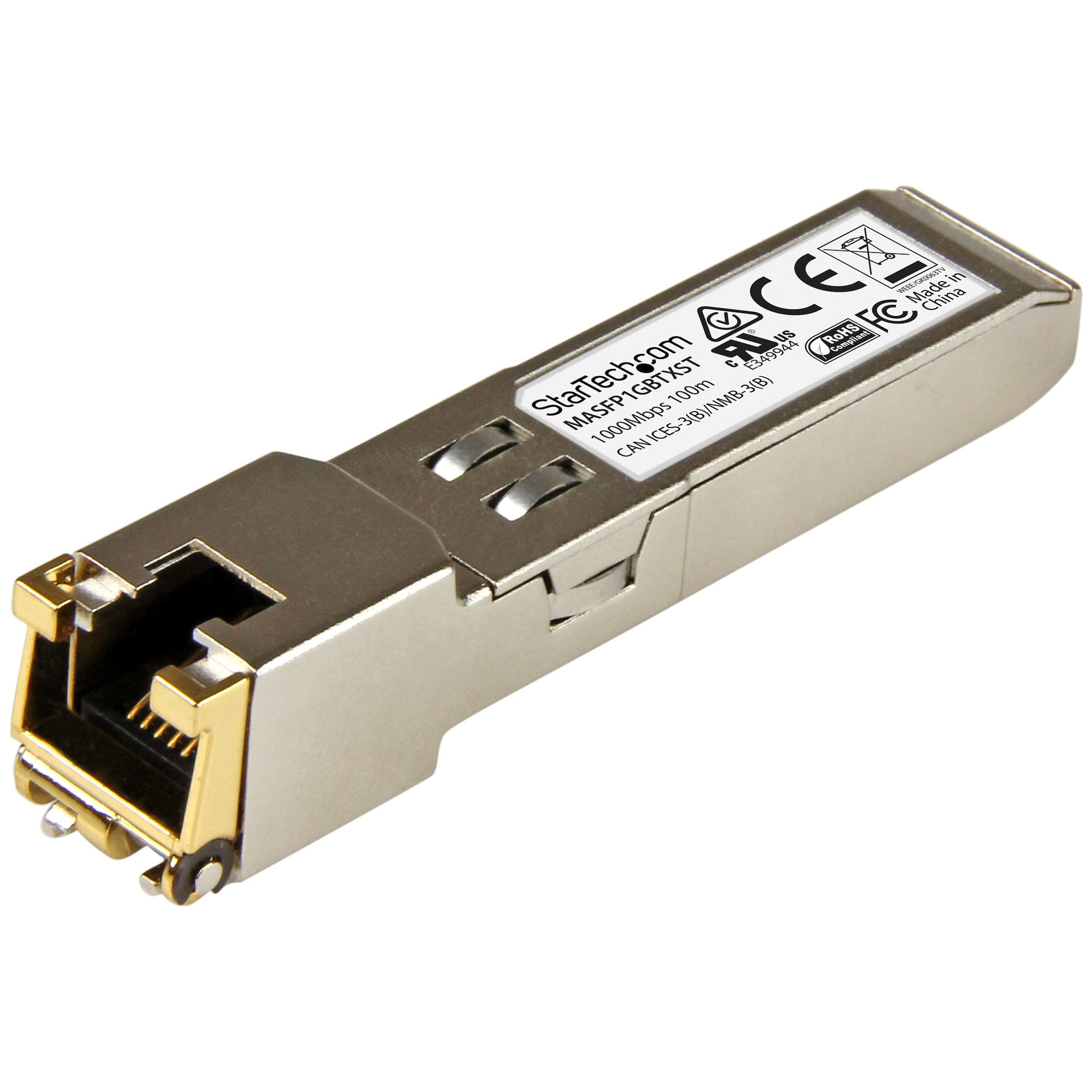

StarTech.com Cisco Meraki MA-SFP-1GB-TX Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 10/100/1000 Mbps - RJ-45 100m - Cisco Meraki MS225, MX400, MS250

Brand: StarTech.com · SKU: STA-MASFP1GBTXST · MPN: Cisco Meraki MA-SFP-1GB-TX Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 10/100/1000 Mbps - RJ-45 100m - Cisco Meraki MS225, MX400, MS250 · Category: Networking

StarTech.com Cisco Meraki MA-SFP-1GB-TX Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 10/100/1000 Mbps - RJ-45 100m - Cisco Meraki MS225, MX400, MS250
$89.98
In Stock • 10 units

StarTech.com Cisco Meraki MA-SFP-1GB-TX Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 10/100/1000 Mbps - RJ-45 100m - Cisco Meraki MS225, MX400, MS250, Copper, 1000 Mbit/s, SFP, TX, 100 m, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u

View Networking Products

Specifications

Depth68 mm
Width18 mm
Height13.8 mm
Weight21 g
Ethernet LANYes
Duplex systemFull
Package depth93 mm
Package width118 mm
Auto MDI/MDI-XYes
Interface typeSFP
Package height35 mm
Package weight51 g
Product colourSilver
Auto-negotiationYes
Hot-Plug supportYes
Housing materialAluminium
Country of originChina
Quantity per pack1 pc(s)
Networking standardsIEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
SFP transceiver typeCopper
Compliance certificatesCE, RoHS
SFP transceiver standardTX
Master (outer) case width260 mm
Maximum transfer distance100 m
Warranty3-Year Warranty
Weight21 g
Dimensions18 mm x 68 mm x 13.8 mm

Product Description

10/100/1000 Mbps | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible copper transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over copper cable, for 10BASE-T, 1000BASE-T and 100BASE-TX compliant networks, with a maximum distance of up to 100 m (328 ft). Technical Specifications: • Maximum Data Transfer Rate: 1000 Mbps • Type: Copper • Connection Type: RJ45 Connector • Maximum Transfer Distance: 100 m (328 ft) • MTBF: 4,655,371 hours • Power Consumption: Less than 1.3 Watts • Digital Diagnostics Monitoring (DDM): No This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance. The StarTech.com Advantage

Key Features

StarTech.com Cisco Meraki MA-SFP-1GB-TX Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 10/100/1000 Mbps - RJ-45 100m - Cisco Meraki MS225, MX400, MS250. SFP transceiver type: Copper, Maximum data transfer rate: 1000 Mbit/s, Interface type: SFP. Product colour: Silver, Housing material: Aluminium, Mean time between failures (MTBF): 4655371 h. Power consumption (typical): 1.3 W. Compliance certificates: CE, RoHS. Width: 18 mm, Depth: 68 mm, Height: 13.8 mm

Technical Deployment Advisory

Target Personnel

Network Security Admins

Infrastructure Fit

Leaf-Spine Data Center Fabrics

"Network Security Admins should consider the STA-MASFP1GBTXST for Leaf-Spine Data Center Fabrics where consistent throughput and robust connectivity are mandatory."

Frequently Asked Questions

Is this product genuine OEM?

Yes, this StarTech.com Cisco Meraki MA-SFP-1GB-TX Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 10/100/1000 Mbps - RJ-45 100m - Cisco Meraki MS225, MX400, MS250 (STA-MASFP1GBTXST) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This StarTech.com Cisco Meraki MA-SFP-1GB-TX Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 10/100/1000 Mbps - RJ-45 100m - Cisco Meraki MS225, MX400, MS250 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the StarTech.com Cisco Meraki MA-SFP-1GB-TX Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 10/100/1000 Mbps - RJ-45 100m - Cisco Meraki MS225, MX400, MS250 compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-MASFP1GBTXST.
