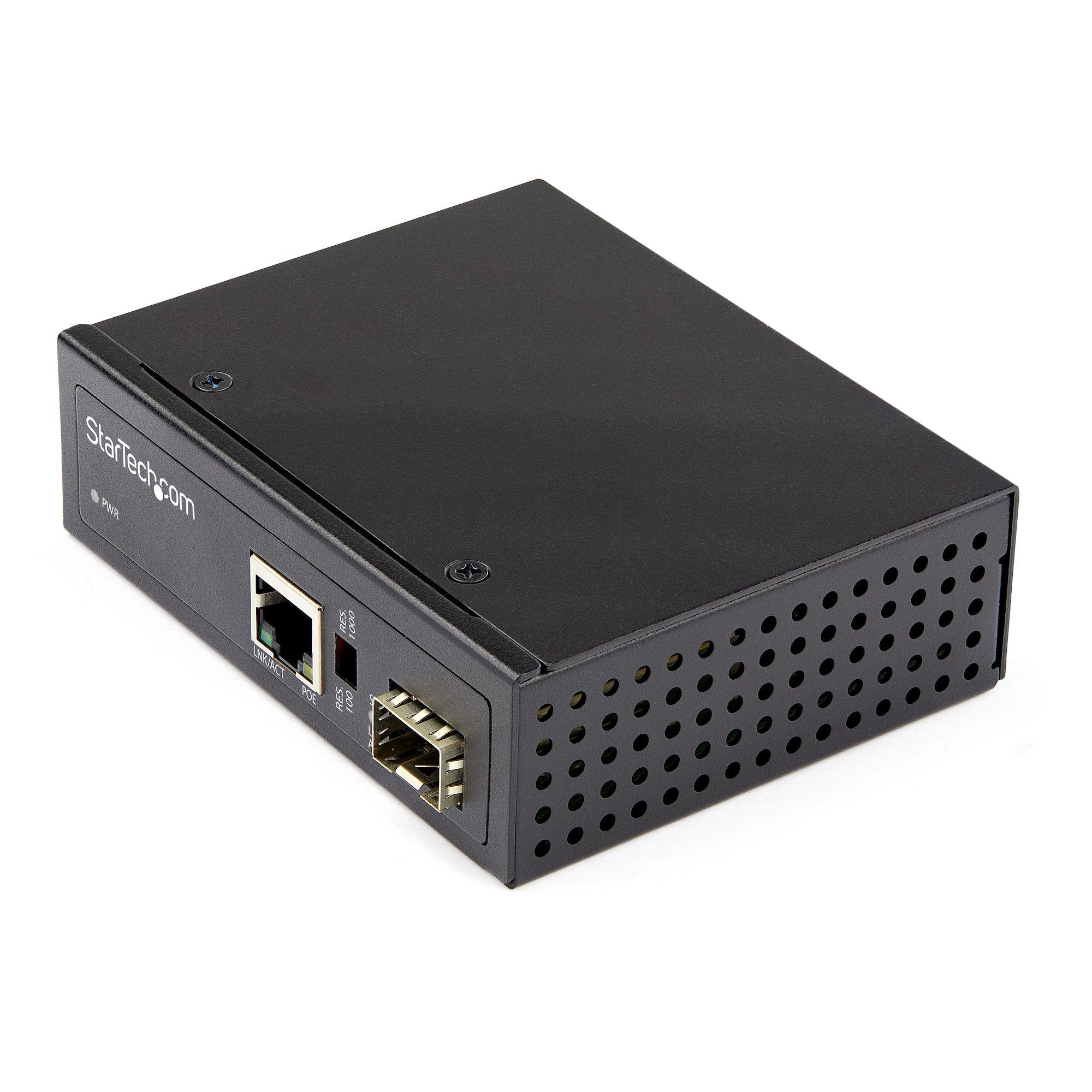

StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 60W - SFP to RJ45 - Singlemode/Multimode Fiber to Copper Gigabit Ethernet - Compact Size - IP-30/ -40 to +75C
Brand: StarTech.com · SKU: STA-IMC1GSFP60W · MPN: PoE+ Industrial Fiber to Ethernet Media Converter 60W - SFP to RJ45 - Singlemode/Multimode Fiber to Copper Gigabit Ethernet - Compact Size - IP-30/ -40 to +75C · Category: Networking
StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 60W - SFP to RJ45 - Singlemode/Multimode Fiber to Copper Gigabit Ethernet - Compact Size - IP-30/ -40 to +75C, 1000 Mbit/s, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, Full, 100 m, Multi-mode, Single-mode, 512 KB
Specifications
| Depth | 104 mm |
|---|---|
| Width | 81.5 mm |
| Height | 32 mm |
| Weight | 153 g |
| Internal | No |
| Buffer size | 512 KB |
| Full duplex | Yes |
| Jumbo frames | 16000 |
| Duplex system | Full |
| Input voltage | 48 - 56 V |
| Package depth | 162 mm |
| Package width | 211 mm |
| Auto MDI/MDI-X | Yes |
| Package height | 64 mm |
| Package volume | 395 cm³ |
| Product colour | Black |
| Power plug type | Type N |
| Housing material | Aluminium |
| DIN rail mounting | Yes |
| Fiber mode structure | Multi-mode, Single-mode |
| Fiber ports quantity | 1 |
| Flow control support | Yes |
| Jumbo frames support | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z |
| Warranty | 3-Year Warranty |
| Weight | 153 g |
| Dimensions | 81.5 mm x 104 mm x 32 mm |
Product Description
Industrial PoE Media Converter | 10/100/1000 Mbps | 60 Watts | Open SFP | DIN Rail Mountable This open SFP PoE fiber media converter offers an easy, inexpensive way to extend the reach of your data and power devices at remote locations using your network over fiber, using the SFP of your choice. It combines the data connectivity of a media converter with the flexible power supply capabilities of a PoE injector It converts a fiber network link to a PoE-enabled copper RJ45 Ethernet connection to provide data and power to remote PoE devices like security cameras, sensors, wireless, lighting, and more. The converter provides a powerful networking solution for campuses, warehouses, factories or any applications that require PoE and connectivity over long distances. Designed for Harsh Environments This 60W media converter can be installed almost anywhere you need it as it has been engineered to work in environments with large temperature changes. The converter also includes a set of DIN mounting rails for additional installation options. OPERATING TEMPERATURE STORAGE TEMPERATURE -40°C to 75°C -40°C to 85°C -40°F to 167°F -40°F to 185°F Up to 60 Watts of Power for Connected Devices 60 watts of available support a wide range of PD devices such as: Pan-and-Tilt Cameras Lighting Cameras Sensors WiFi Access Points Open SFP Slot to Leverage Your Current Infrastructure The Gigabit fiber media converter provides a cost-efficient way to connect high powered devices over a fiber link. It features an open SFP slot that lets you choose the MSA compliant Gigabit SFP that best suits your fiber connection mode (single/multimode) and distance requirements. Dual Power Inputs Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. The IMC1GSFP60W is backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage - EXTEND, CONVERT, POWER: Fiber to Ethernet media converter with PoE extends & converts fiber to RJ-45 copper; Provides up to 60W of PSE power to PoE/PoE+/PoE++ PD devices like cameras and sensors - TECH SPECS: 1 Gbps - 1 x Open SFP (MSA Compliant)
Key Features
StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 60W - SFP to RJ45 - Singlemode/Multimode Fiber to Copper Gigabit Ethernet - Compact Size - IP-30/ -40 to +75C. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, Duplex system: Full. Maximum transfer distance: 100 m, Fiber mode structure: Multi-mode, Single-mode, Buffer size: 512 KB. Product colour: Black, Housing material: Aluminium, International Protection (IP) code: IP30. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 48 - 56 V, Total Power over Ethernet (PoE) budget: 60 W, Power plug type: Type N
Technical Deployment Advisory
Target Personnel
Network Fabric Engineers
Infrastructure Fit
Secure Campus Backbones
"Network Fabric Engineers should consider the STA-IMC1GSFP60W for Secure Campus Backbones where consistent throughput and robust connectivity are mandatory."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 60W - SFP to RJ45 - Singlemode/Multimode Fiber to Copper Gigabit Ethernet - Compact Size - IP-30/ -40 to +75C (STA-IMC1GSFP60W) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 60W - SFP to RJ45 - Singlemode/Multimode Fiber to Copper Gigabit Ethernet - Compact Size - IP-30/ -40 to +75C includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 60W - SFP to RJ45 - Singlemode/Multimode Fiber to Copper Gigabit Ethernet - Compact Size - IP-30/ -40 to +75C compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-IMC1GSFP60W.
