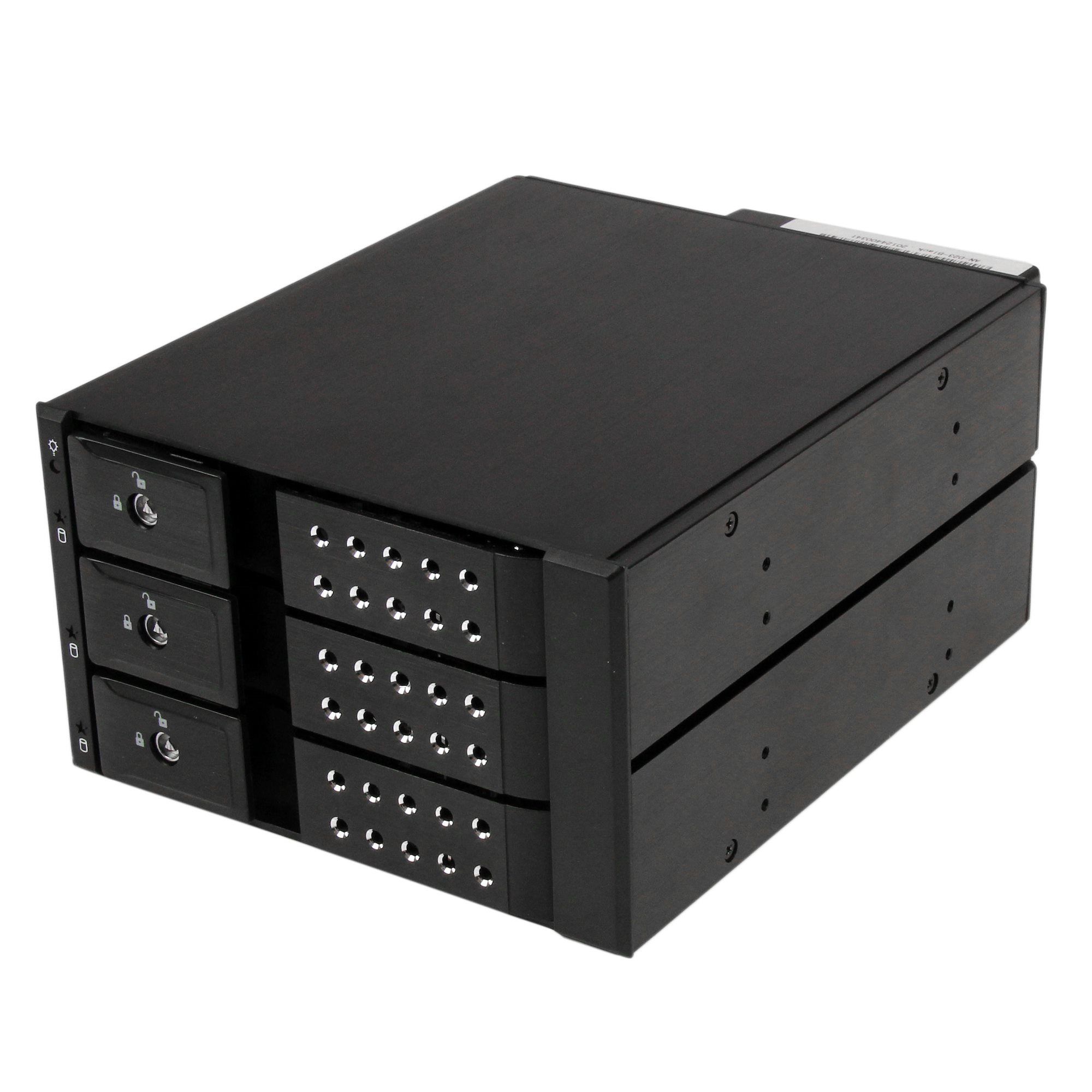

StarTech.com 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD
Brand: StarTech.com · SKU: STA-HSB3SATSASBA · MPN: 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD · Category: Storage
StarTech.com 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD, 0 TB, Serial ATA, Serial ATA II, Serial ATA III, 3.5", 1.2 kg, Black
Specifications
| Depth | 194.1 mm |
|---|---|
| Width | 145 mm |
| Height | 110 mm |
| Weight | 1.2 kg |
| Internal | No |
| Host ports | 3 |
| Package depth | 253 mm |
| Package width | 179 mm |
| LED indicators | Activity, Power |
| Number of fans | 1 fan(s) |
| Package height | 123 mm |
| Package weight | 1.2 kg |
| Product colour | Black |
| SATA host port | Yes |
| Cables included | SATA |
| Backplanes support | Yes |
| Data transfer rate | 6 Gbit/s |
| Storage drive size | 3.5" |
| Hot-swap drive bays | Yes |
| Compliance certificates | RoHS |
| Storage drive interface | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drives installed | No |
| Master (outer) case width | 386 mm |
| SATA power connector type | SATA 15-pin |
| Warranty | 3-Year Warranty |
| Weight | 1.2 kg |
| Dimensions | 145 mm x 194.1 mm x 110 mm |
Product Description
Easily connect and hot swap up to three 3.5” SATA/SAS hard drives from two 5.25” bays The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5” SATA or SAS hard drives (HDD). For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications. For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure. The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage
Key Features
StarTech.com 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD. Total installed storage capacity: 0 TB, Storage drive interface: Serial ATA, Serial ATA II, Serial ATA III, Storage drive size: 3.5", Number of storage drives supported: 3, Supported storage drive types: HDD. Width: 145 mm, Depth: 194.1 mm, Height: 110 mm, Weight: 1.2 kg. Product colour: Black
Technical Deployment Advisory
Target Personnel
Storage Fabric Architects
Infrastructure Fit
Database Backends (SQL/Oracle)
"Engineered for high-throughput data paths or critical backup cycles, the STA-HSB3SATSASBA provides the data integrity required for Database Backends (SQL/Oracle). Storage Fabric Architects will benefit from its performance consistency."
