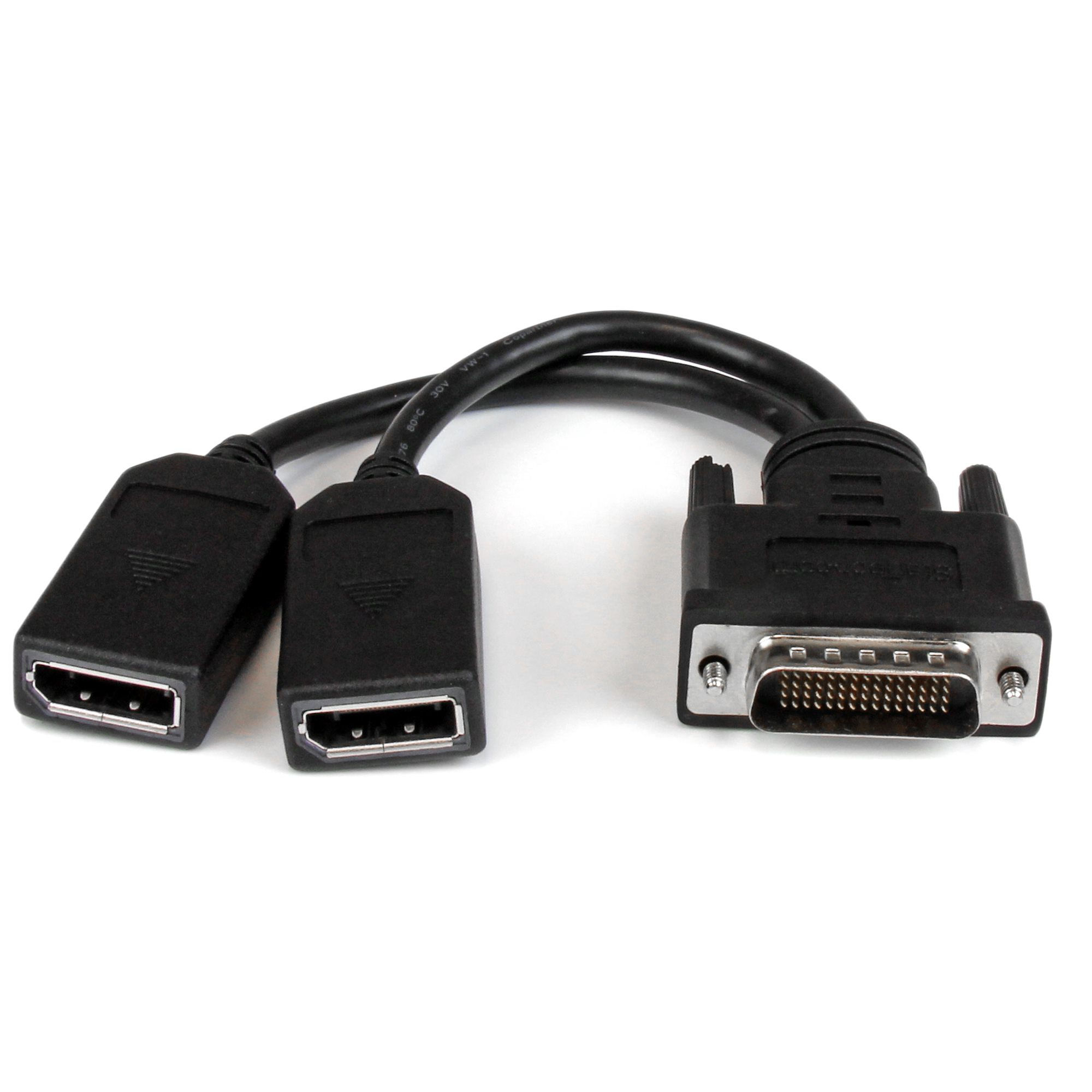

StarTech.com 8" (20 cm) DMS-59 to Dual DisplayPort Adapter Cable - 4K x 2K Video - LFH DMS 59 pin (M) to 2x DisplayPort 1.2 (F) Splitter Y Cable - LFH Graphics Card to Dual DP Monitors
Brand: StarTech.com · SKU: STA-DMSDPDP1 · MPN: 8" (20 cm) DMS-59 to Dual DisplayPort Adapter Cable - 4K x 2K Video - LFH DMS 59 pin (M) to 2x DisplayPort 1.2 (F) Splitter Y Cable - LFH Graphics Card to Dual DP Monitors · Category: Components
StarTech.com 8" (20 cm) DMS-59 to Dual DisplayPort Adapter Cable - 4K x 2K Video - LFH DMS 59 pin (M) to 2x DisplayPort 1.2 (F) Splitter Y Cable - LFH Graphics Card to Dual DP Monitors, 2x DisplayPort, 3840 x 2160 pixels, Black, 4K Ultra HD, 0.203 m, Nickel
Specifications
| Depth | 203.2 mm |
|---|---|
| Width | 41 mm |
| Height | 15 mm |
| Weight | 79 g |
| HD type | 4K Ultra HD |
| Video out | 2x DisplayPort |
| Cable length | 0.203 m |
| Package depth | 290 mm |
| Package width | 145 mm |
| Package height | 17 mm |
| Package weight | 86 g |
| Product colour | Black |
| Maximum resolution | 3840 x 2160 pixels |
| Video ports quantity | 2 |
| Compliance certificates | CE, RoHS |
| Master (outer) case width | 344 mm |
| Sustainability compliance | Yes |
| Connector contacts plating | Nickel |
| Master (outer) case height | 268 mm |
| Master (outer) case length | 395 mm |
| Harmonized System (HS) code | 85176990 |
| Products per master (outer) case | 144 pc(s) |
| Warranty | 3-Year Warranty |
| Weight | 79 g |
| Dimensions | 41 mm x 203.2 mm x 15 mm |
Product Description
Connect two DisplayPort monitors to your DMS / LFH-equipped graphics card The DMSDPDP1 DMS-59 to Dual DisplayPort Cable allows you to split the video from a single LHF graphics card on to two DisplayPort (DP) monitors. The DMS to DP Y cable supports high resolutions of up to 4k x 2k (3840 x 2160) with a maximum HBR2 bandwidth of 21.6 Gbps and is compatible with DMS / LFH 59 or DMS / LFH 60 graphics cards such as Matrox, NVIDIA®; PNY, ATI and HP. Backed by our Lifetime Warranty, the DMSDPDP1 is designed and constructed for maximum durability – making it a reliable and cost-effective replacement for damaged or misplaced DMS to 2x DisplayPort cables. The StarTech.com Advantage
Key Features
StarTech.com 8" (20 cm) DMS-59 to Dual DisplayPort Adapter Cable - 4K x 2K Video - LFH DMS 59 pin (M) to 2x DisplayPort 1.2 (F) Splitter Y Cable - LFH Graphics Card to Dual DP Monitors. Video out: 2x DisplayPort. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, HD type: 4K Ultra HD. Width: 41 mm, Depth: 203.2 mm, Height: 15 mm. Package width: 145 mm, Package depth: 290 mm, Package height: 17 mm. Master (outer) case width: 344 mm, Master (outer) case length: 395 mm, Master (outer) case height: 268 mm
Technical Deployment Advisory
Target Personnel
Field Engineers
Infrastructure Fit
Server Fleet Uniformity
"For Server Fleet Uniformity, using verified parts like the STA-DMSDPDP1 prevents downtime and maintains the service integrity expected by Field Engineers."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 8" (20 cm) DMS-59 to Dual DisplayPort Adapter Cable - 4K x 2K Video - LFH DMS 59 pin (M) to 2x DisplayPort 1.2 (F) Splitter Y Cable - LFH Graphics Card to Dual DP Monitors (STA-DMSDPDP1) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 8" (20 cm) DMS-59 to Dual DisplayPort Adapter Cable - 4K x 2K Video - LFH DMS 59 pin (M) to 2x DisplayPort 1.2 (F) Splitter Y Cable - LFH Graphics Card to Dual DP Monitors includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 8" (20 cm) DMS-59 to Dual DisplayPort Adapter Cable - 4K x 2K Video - LFH DMS 59 pin (M) to 2x DisplayPort 1.2 (F) Splitter Y Cable - LFH Graphics Card to Dual DP Monitors compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-DMSDPDP1.
