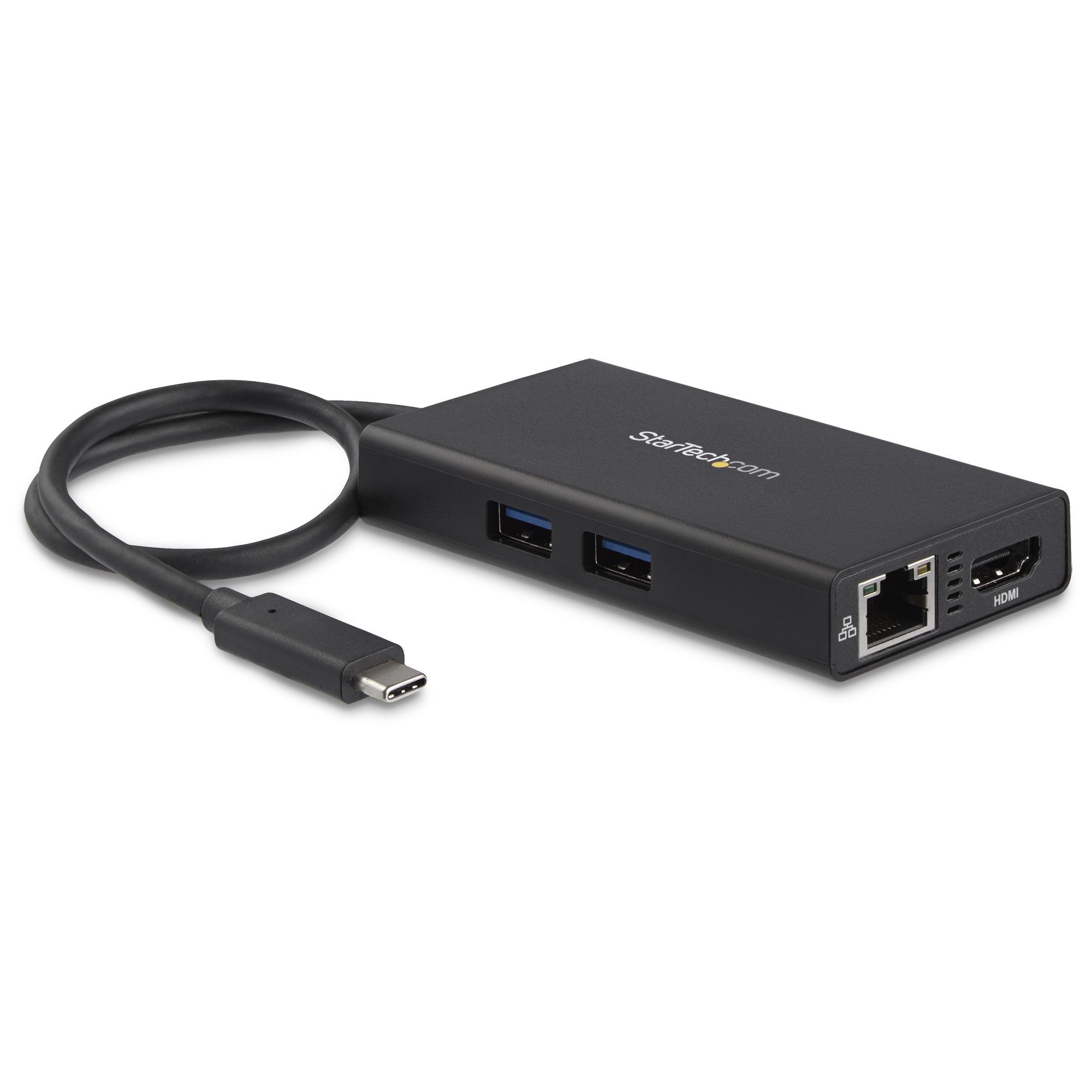

StarTech.com USB-C Multiport Adapter - USB-C Travel Docking Station with 4K HDMI - 60W Power Delivery Pass-Through, GbE, 2pt USB-A 3.0 Hub - Portable Mini USB Type-C Dock for Laptop
Brand: StarTech.com · SKU: STA-DKT30CHPD · MPN: USB-C Multiport Adapter - USB-C Travel Docking Station with 4K HDMI - 60W Power Delivery Pass-Through, GbE, 2pt USB-A 3.0 Hub - Portable Mini USB Type-C Dock for Laptop · Category: Components
StarTech.com USB-C Multiport Adapter - USB-C Travel Docking Station with 4K HDMI - 60W Power Delivery Pass-Through, GbE, 2pt USB-A 3.0 Hub - Portable Mini USB Type-C Dock for Laptop, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 60 W, USB Type-C, 10,100,1000 Mbit/s, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Specifications
| Depth | 96 mm |
|---|---|
| Width | 51 mm |
| Height | 18 mm |
| Weight | 64 g |
| Chipset | VIA/VLI - VL813, VIA/VLI - VL100, Chrontel - CH7525A, ASIX - AX88179 |
| DC-in jack | Yes |
| Cable length | 0.348 m |
| Ethernet LAN | Yes |
| UASP support | Yes |
| Certification | CE, FCC, TAA, REACH |
| Microphone in | No |
| Package depth | 212 mm |
| Package width | 146 mm |
| Auto MDI/MDI-X | Yes |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Package height | 41 mm |
| Package weight | 198 g |
| Product colour | Black |
| Housing material | Plastic |
| Mac compatibility | Yes |
| Power source type | DC, USB |
| Quick start guide | Yes |
| Wake-on-LAN ready | Yes |
| Data transfer rate | 5 Gbit/s |
| Warranty | 3-Year Warranty |
| Weight | 64 g |
| Dimensions | 51 mm x 96 mm x 18 mm |
Product Description
Portable Docking Station | Mac & Windows® | GbE | Thunderbolt™ 3 Compatible This sleek USB-C Multiport Adapter with HDMI combines the capability of three single-function adapters into a portable docking station for your laptop. You get the convenience of a USB-C to USB adapter, USB-C to Ethernet adapter, and USB-C 4K HDMI adapter all in one portable solution. And, with support for 60W USB Power Delivery 2.0, you can power both the adapter and charge your laptop at the same time. Create a Powerful Workstation The versatile USB-C adapter lets you create a dual-monitor workstation virtually anywhere, providing 4K Ultra HD (3840 x 2160p) HDMI output with 30 Hz refresh rate and audio, two USB 3.0 ports, and a Gigabit Ethernet port, with support for USB Power Delivery 2.0. The Gigabit Ethernet port with support for Wake-on-LAN (WOL), jumbo frames, VLAN tagging, and Energy-Efficient Ethernet, delivers a reliable wired network connection, ideal for areas with limited Wi-Fi access. Plus, with two additional USB 3.0 ports (USB Type-A) you can connect productivity devices like your mouse and/or flash drive. Designed for Easy Portability Ideal for mobile use, the compact multiport adapter supports USB Power Delivery 2.0 (PD 2.0), so you can use your laptop's USB-C power adapter to power both your laptop and the adapter. The adapter also features an integrated extended-length USB-C cable, for added flexibility in connecting to your laptop, which means one less cable to carry with you. The StarTech.com Advantage for Docking Stations Maximum compatibility - StarTech.com has a docking station to fit every operating system, laptop brand, and connectivity need Get more done faster - More ports and more displays maximize end-user connectivity and productivity Quick installation - eliminate deployment headaches that waste time and frustrate end users IT Grade quality - trusted by IT pros around the world for our rigorous in-house product testing, robust compliance, and lifetime multilingual technical support The DKT30CHPD is backed by a StarTech.com 3-year warranty and free lifetime technical support. Note: To ensure full adapter functionality, your laptop's USB-C port must support USB Power Delivery and DP alt mode. The StarTech.com Advantage
Key Features
StarTech.com USB-C Multiport Adapter - USB-C Travel Docking Station with 4K HDMI - 60W Power Delivery Pass-Through, GbE, 2pt USB-A 3.0 Hub - Portable Mini USB Type-C Dock for Laptop. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 60 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Black, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 4096 x 2160 pixels. Power source type: DC, USB. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Other operating systems supported: ChromeOS
Technical Deployment Advisory
Target Personnel
Lifecycle Management Leads
Infrastructure Fit
Hardware Maintenance & Repairs
"The STA-DKT30CHPD is the primary choice for Lifecycle Management Leads performing critical Hardware Maintenance & Repairs tasks. It meets all OEM performance specifications for StarTech.com systems."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com USB-C Multiport Adapter - USB-C Travel Docking Station with 4K HDMI - 60W Power Delivery Pass-Through, GbE, 2pt USB-A 3.0 Hub - Portable Mini USB Type-C Dock for Laptop (STA-DKT30CHPD) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com USB-C Multiport Adapter - USB-C Travel Docking Station with 4K HDMI - 60W Power Delivery Pass-Through, GbE, 2pt USB-A 3.0 Hub - Portable Mini USB Type-C Dock for Laptop includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com USB-C Multiport Adapter - USB-C Travel Docking Station with 4K HDMI - 60W Power Delivery Pass-Through, GbE, 2pt USB-A 3.0 Hub - Portable Mini USB Type-C Dock for Laptop compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-DKT30CHPD.
