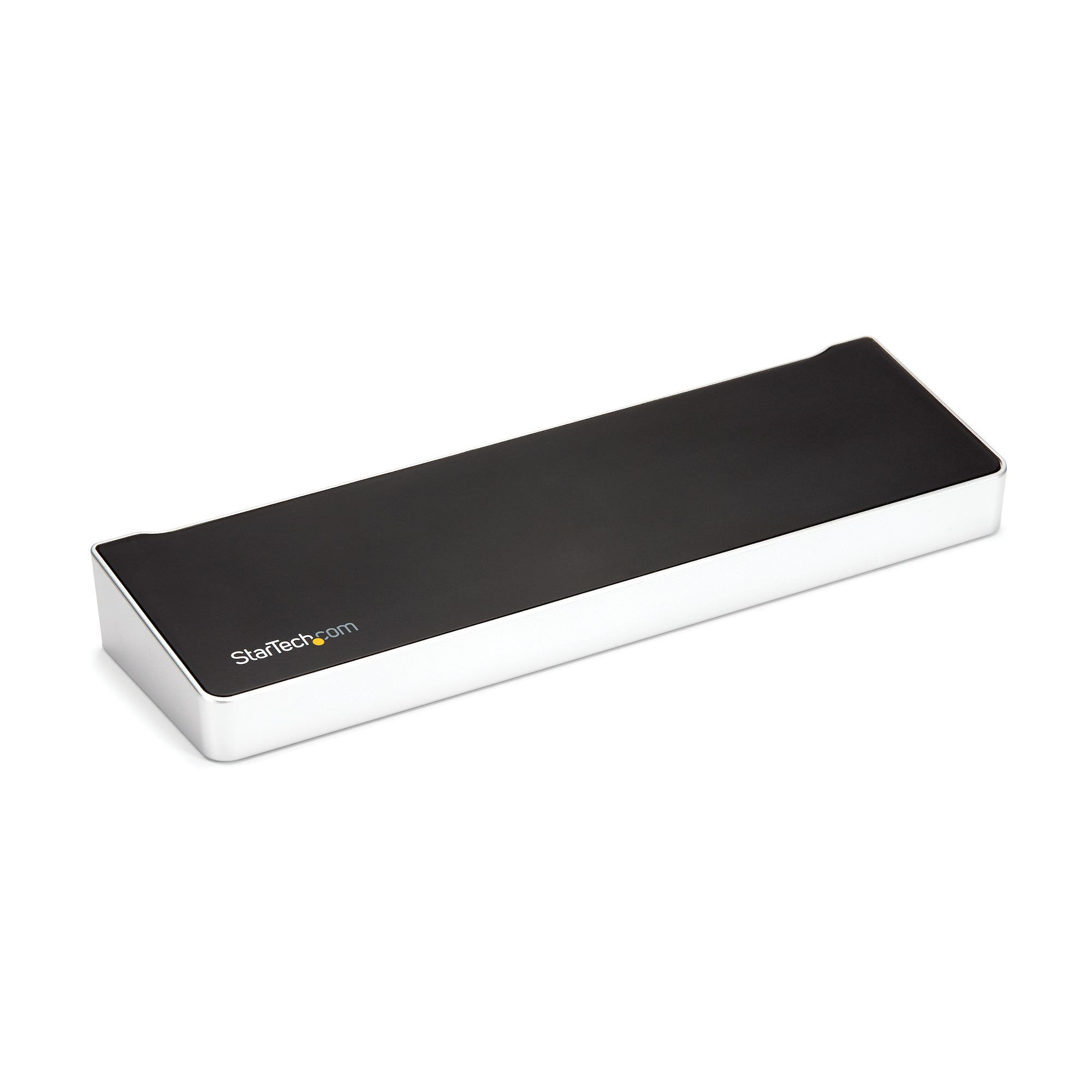

StarTech.com 4K USB-C Dock, Triple UHD 4K Monitor Docking Station, Mac & Windows, USB C to HDMI & DisplayPort, 100W Power Delivery, 5x USB 5Gbps Hub - TAA
Brand: StarTech.com · SKU: STA-DK30CH2DEP · MPN: 4K USB-C Dock, Triple UHD 4K Monitor Docking Station, Mac & Windows, USB C to HDMI & DisplayPort, 100W Power Delivery, 5x USB 5Gbps Hub - TAA · Category: Components
StarTech.com 4K USB-C Dock, Triple UHD 4K Monitor Docking Station, Mac & Windows, USB C to HDMI & DisplayPort, 100W Power Delivery, 5x USB 5Gbps Hub - TAA, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 3.5 mm, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Black, Silver, 5 Gbit/s
Specifications
| Depth | 270 mm |
|---|---|
| Width | 82 mm |
| Height | 34 mm |
| Manual | Yes |
| Weight | 382 g |
| Chipset | DisplayLink - DL-6950, Genesys Logic - GL3523, Genesys Logic - GL3523S, Texas Instruments - TPS65982, Parade Technologies - PS176 |
| DC-in jack | Yes |
| Full duplex | Yes |
| Ethernet LAN | Yes |
| Power supply | 100 W |
| UASP support | Yes |
| Certification | FCC, TAA, CE, REACH |
| Input current | 2.5 A |
| Microphone in | Yes |
| On/off switch | Yes |
| Package depth | 320 mm |
| Package width | 160 mm |
| Anti-slip pads | Yes |
| Auto MDI/MDI-X | Yes |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Output current | 7.5 A |
| Output voltage | 20 V |
| Package height | 80 mm |
| Package weight | 1.65 kg |
| Warranty | 3-Year Warranty |
| Weight | 382 g |
| Dimensions | 82 mm x 270 mm x 34 mm |
Product Description
Laptop Docking Station | Mac, Windows® & Chrome OS™ | 2x 4K 60Hz DP + HDMI This triple-4K dock for Mac, Windows and Chrome USB-C laptops helps you take productivity to a whole new level. With three 4K video connections, 100W Power Delivery, and 5x USB 3.0 ports, the USB-C dock is perfect for your MacBook, Dell XPS, Chromebook or other USB-C laptop requiring additional ports. You can also connect the dock to your USB 3.0 laptop through a USB-A port, using a USB-C to A cable, such as the USB315AC1M(sold separately). Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported. Enhance Productivity The 4K USB-C docking station lets you create a three-monitor Ultra HD workstation. Connect: • 2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz and • 1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz For high-resolution applications, you can connect the dock to a 5K display at 60Hz, using the two DisplayPort ports. 100W Power Delivery Using a single cable, the USB-C dock will power and charge power-hungry laptops, with up to 100W Power Delivery, and power your peripherals with its 150W power adapter. Powerful Connections This triple-monitor docking station lets you transform your laptop into a full-sized workstation. It gives you five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl. 1x Fast-Charge port), a Gigabit Ethernet port, headset jack, and separate 3.5 mm audio and microphone ports. Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes: • Advanced Windows Layout Utility : To setup and save custom windows layouts. • Mac Address Pass-Through Utility : To improve network security. • USB Event Monitoring Utility : To track and log connected USB devices • Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN. For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools The TAA compliant DK30CH2DEP is backed by a StarTech.com 3-year warranty and free lifetime technical support. The StarTech.com Advantage
Key Features
StarTech.com 4K USB-C Dock, Triple UHD 4K Monitor Docking Station, Mac & Windows, USB C to HDMI & DisplayPort, 100W Power Delivery, 5x USB 5Gbps Hub - TAA. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, Headphone connectivity: 3.5 mm. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Black, Silver, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 5120 x 2880 pixels. AC input voltage: 100 - 240 V, Input current: 2.5 A, Power supply: 100 W. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave,..., Other operating systems supported: ChromeOS
Technical Deployment Advisory
Target Personnel
Systems Maintenance Techs
Infrastructure Fit
Mid-Lifecycle Capacity Expansion
"The STA-DK30CH2DEP is the primary choice for Systems Maintenance Techs performing critical Mid-Lifecycle Capacity Expansion tasks. It meets all OEM performance specifications for StarTech.com systems."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 4K USB-C Dock, Triple UHD 4K Monitor Docking Station, Mac & Windows, USB C to HDMI & DisplayPort, 100W Power Delivery, 5x USB 5Gbps Hub - TAA (STA-DK30CH2DEP) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 4K USB-C Dock, Triple UHD 4K Monitor Docking Station, Mac & Windows, USB C to HDMI & DisplayPort, 100W Power Delivery, 5x USB 5Gbps Hub - TAA includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 4K USB-C Dock, Triple UHD 4K Monitor Docking Station, Mac & Windows, USB C to HDMI & DisplayPort, 100W Power Delivery, 5x USB 5Gbps Hub - TAA compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-DK30CH2DEP.
