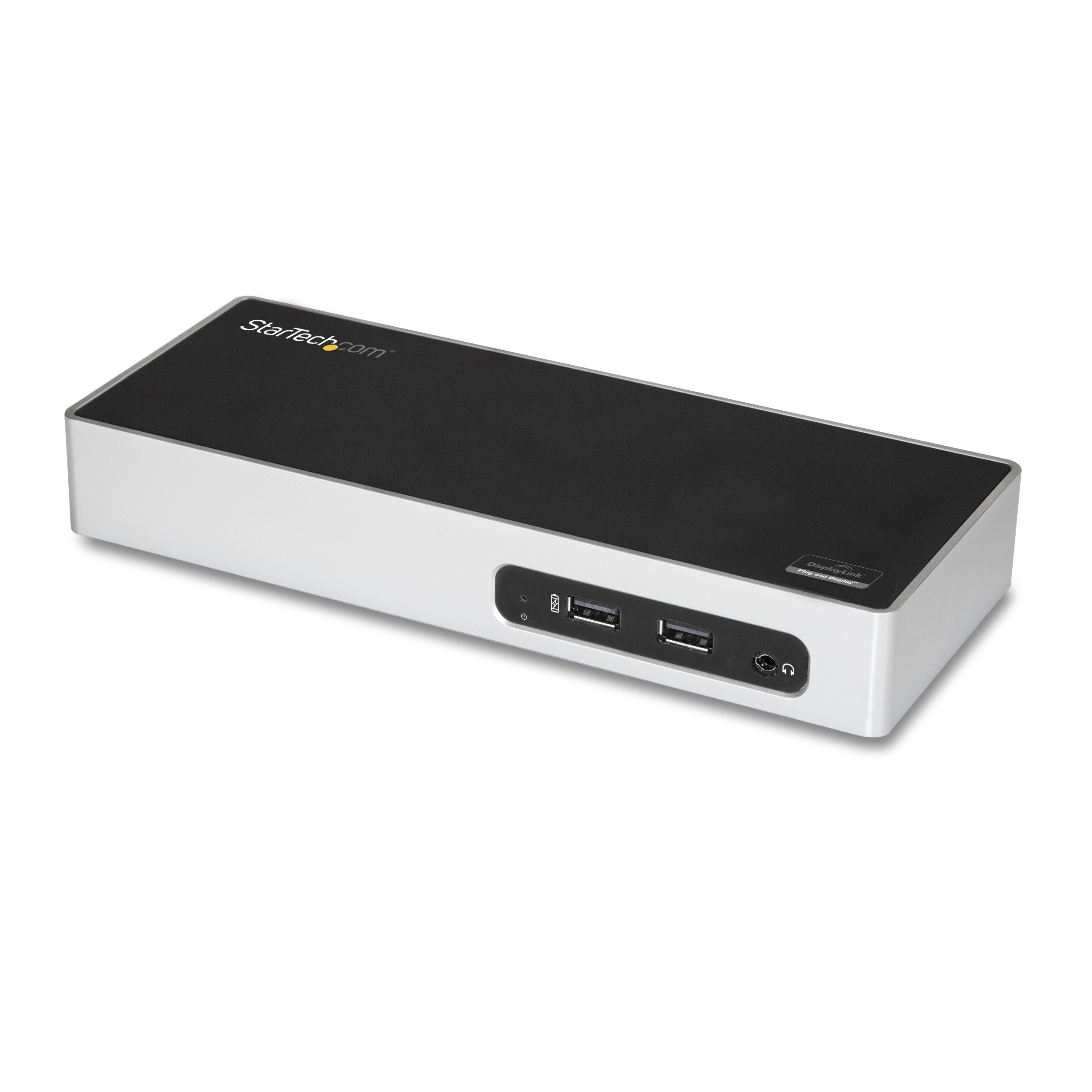

StarTech.com USB 3.0 Docking Station - Dual Monitor Laptop Docking Station with HDMI & DVI/VGA Video - 6-port USB 3.1 Gen 1 5Gbps Hub, GbE, Audio - Universal Type-A Dock - Windows & Mac
Brand: StarTech.com · SKU: STA-DK30ADD · MPN: USB 3.0 Docking Station - Dual Monitor Laptop Docking Station with HDMI & DVI/VGA Video - 6-port USB 3.1 Gen 1 5Gbps Hub, GbE, Audio - Universal Type-A Dock - Windows & Mac · Category: Components
StarTech.com USB 3.0 Docking Station - Dual Monitor Laptop Docking Station with HDMI & DVI/VGA Video - 6-port USB 3.1 Gen 1 5Gbps Hub, GbE, Audio - Universal Type-A Dock - Windows & Mac, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-B, 3.5 mm, 10,100,1000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Black, Silver
Specifications
| Depth | 216 mm |
|---|---|
| Width | 86.2 mm |
| Height | 31 mm |
| Weight | 291 g |
| Chipset | DisplayLink - DL-3900, VIA/VLI - VL813 |
| DC-in jack | Yes |
| Full duplex | Yes |
| Cable length | 1 m |
| Ethernet LAN | Yes |
| UASP support | Yes |
| Certification | CE, FCC, DisplayLink, REACH |
| Input current | 1 A |
| On/off switch | Yes |
| Package depth | 307 mm |
| Package width | 140 mm |
| Auto MDI/MDI-X | Yes |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| LED indicators | Power |
| Output current | 2 A |
| Output voltage | 20 V |
| Package height | 60 mm |
| Package weight | 800 g |
| Product colour | Black, Silver |
| Cables included | USB |
| Warranty | 3-Year Warranty |
| Weight | 291 g |
| Dimensions | 86.2 mm x 216 mm x 31 mm |
Product Description
Laptop Docking Station | Mac & Windows® | HDMI & DVI | DVI to VGA Adapter This USB 3.0 docking station for Mac and Windows™ laptops gives you display flexibility and the ports you need to maximize workstation performance. The cost-effective dual-monitor docking station provides many video output options including HDMI®, DVI and VGA (with adapter), and gives you six USB ports for peripherals, including two fast-charge USB ports. Enhance Productivity with Dual Video The USB 3.0 dock expands the display capabilities of your Mac or Windows laptop. Set up dual displays by connecting to one HDMI and one DVI monitor. Plus, the laptop docking station includes a DVI to VGA adapter, so you can connect to a legacy VGA monitor. With the dual-monitor dock, you can connect: • 1x HDMI display + 1x DVI display at 2048 x 1152 resolution @ 60Hz • 1x HDMI display at 2048 x 1152 resolution + 1x VGA display at 1920 x 1200 resolution @ 60Hz All the Connections You Need Transform your laptop into a fully capable workstation. This USB 3.0 dock provides six USB 3.0 (Type-A) ports so you can easily connect your keyboard, external drives and other peripherals, from the single USB 3.0 host connection. Two of the USB 3.0 ports are always-on fast-charge ports, adding charge-and-sync flexibility for up to two mobile devices. The docking station also provides a Gigabit Ethernet port plus a 3.5 mm audio headphone port. DK30ADD is backed by a StarTech.com 3-year warranty and free lifetime technical support. The StarTech.com Advantage
Key Features
StarTech.com USB 3.0 Docking Station - Dual Monitor Laptop Docking Station with HDMI & DVI/VGA Video - 6-port USB 3.1 Gen 1 5Gbps Hub, GbE, Audio - Universal Type-A Dock - Windows & Mac. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B, Headphone connectivity: 3.5 mm. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Black, Silver, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 2048 x 1152 pixels. Power source type: AC, AC input voltage: 100 - 240 V, Input current: 1 A. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave,...
Technical Deployment Advisory
Target Personnel
Field Engineers
Infrastructure Fit
Server Fleet Uniformity
"For Server Fleet Uniformity, using verified parts like the STA-DK30ADD prevents downtime and maintains the service integrity expected by Field Engineers."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com USB 3.0 Docking Station - Dual Monitor Laptop Docking Station with HDMI & DVI/VGA Video - 6-port USB 3.1 Gen 1 5Gbps Hub, GbE, Audio - Universal Type-A Dock - Windows & Mac (STA-DK30ADD) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com USB 3.0 Docking Station - Dual Monitor Laptop Docking Station with HDMI & DVI/VGA Video - 6-port USB 3.1 Gen 1 5Gbps Hub, GbE, Audio - Universal Type-A Dock - Windows & Mac includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com USB 3.0 Docking Station - Dual Monitor Laptop Docking Station with HDMI & DVI/VGA Video - 6-port USB 3.1 Gen 1 5Gbps Hub, GbE, Audio - Universal Type-A Dock - Windows & Mac compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-DK30ADD.
