StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm Cable Used for Calibrating Projectors, Digital Signage, TVs via Audio Jack
Brand: StarTech.com · SKU: STA-9M351M-RS232-CABLE · MPN: 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm Cable Used for Calibrating Projectors, Digital Signage, TVs via Audio Jack · Category: Components
StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm Cable Used for Calibrating Projectors, Digital Signage, TVs via Audio Jack, DB-9, 3.5mm, 1 m, Black
Specifications
| Connector 1 | DB-9 |
|---|---|
| Connector 2 | 3.5mm |
| Cable length | 1 m |
| AWG wire size | 28 |
| Package depth | 220 mm |
| Package width | 128 mm |
| Cable diameter | 3.5 mm |
| Package height | 10 mm |
| Package weight | 23 g |
| Product colour | Black |
| Relative humidity | 30 - 75% |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Compliance certificates | RoHS |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Master (outer) case width | 388 mm |
| Storage temperature (T-T) | -20 - 60 °C |
| Sustainability compliance | Yes |
| Master (outer) case height | 310 mm |
| Master (outer) case length | 340 mm |
| Operating temperature (T-T) | -20 - 60 °C |
| Products per master (outer) case | 200 pc(s) |
| Warranty | 3-Year Warranty |
Product Description

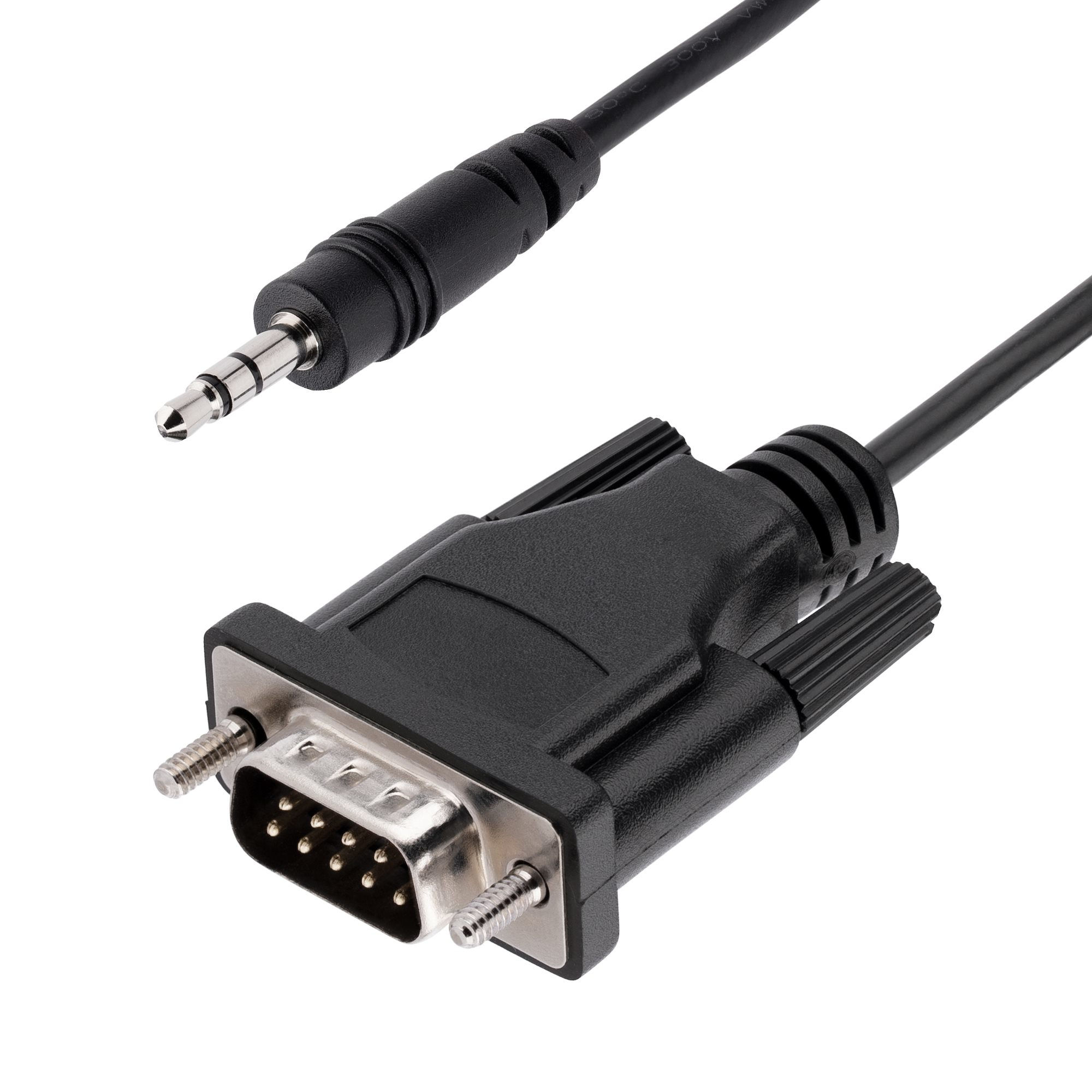

Connect a DB9 enabled control unit to a 3.5mm enabled device for RS-232 based control This serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs, projectors, and digital signage devices that feature a 3.5mm audio jack. High Quality Construction The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion. Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption. DB9 Serial to 3.5mm Pinout DB9 Pin 3 to 3.5mm Tip DB9 Pin 2 to 3.5mm Ring DB9 Pin 5 to 3.5mm Sleeve This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance. The StarTech.com Advantage
Key Features
StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm Cable Used for Calibrating Projectors, Digital Signage, TVs via Audio Jack. Connector 1: DB-9, Connector 2: 3.5mm, Cable length: 1 m. Product colour: Black
Technical Deployment Advisory
Target Personnel
Lifecycle Management Leads
Infrastructure Fit
Hardware Maintenance & Repairs
"The STA-9M351M-RS232-CABLE is the primary choice for Lifecycle Management Leads performing critical Hardware Maintenance & Repairs tasks. It meets all OEM performance specifications for StarTech.com systems."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm Cable Used for Calibrating Projectors, Digital Signage, TVs via Audio Jack (STA-9M351M-RS232-CABLE) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm Cable Used for Calibrating Projectors, Digital Signage, TVs via Audio Jack includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm Cable Used for Calibrating Projectors, Digital Signage, TVs via Audio Jack compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-9M351M-RS232-CABLE.
