StarTech.com 8 Port SATA PCIe Card - PCI Express 6Gbps SATA Expansion Adapter Card with 4 Host Controllers - SATA PCIe Controller Card - PCI-e x4 Gen 2 to SATA III - SATA HDD/SSD
Brand: StarTech.com · SKU: STA-8P6G-PCIE-SATA-CARD · MPN: 8 Port SATA PCIe Card - PCI Express 6Gbps SATA Expansion Adapter Card with 4 Host Controllers - SATA PCIe Controller Card - PCI-e x4 Gen 2 to SATA III - SATA HDD/SSD · Category: Storage
StarTech.com 8 Port SATA PCIe Card - PCI Express 6Gbps SATA Expansion Adapter Card with 4 Host Controllers - SATA PCIe Controller Card - PCI-e x4 Gen 2 to SATA III - SATA HDD/SSD, PCIe, Mini-SAS, PCI 2.0, Black, Pericom - PI7C9X2G608GP, ASMedia - ASM1061, 6 Gbit/s
Specifications
| Depth | 150 mm |
|---|---|
| Width | 68.6 mm |
| Height | 14.6 mm |
| Weight | 75 g |
| Chipset | Pericom - PI7C9X2G608GP, ASMedia - ASM1061 |
| Internal | Yes |
| TRIM support | Yes |
| Package depth | 155 mm |
| Package width | 230 mm |
| SATA revision | 3.0 |
| Host interface | PCIe |
| Package height | 55 mm |
| Package weight | 81 g |
| Product colour | Black |
| Cables included | SATA |
| Port multiplier | Yes |
| Output interface | Mini-SAS |
| S.M.A.R.T. support | Yes |
| Compliance certificates | RoHS |
| Expansion card standard | PCI 2.0 |
| External mini-SAS ports | 2 |
| Data transfer rate (max) | 6 Gbit/s |
| Quick installation guide | Yes |
| Master (outer) case width | 610 mm |
| Warranty | 3-Year Warranty |
| Weight | 75 g |
| Dimensions | 68.6 mm x 150 mm x 14.6 mm |
Product Description

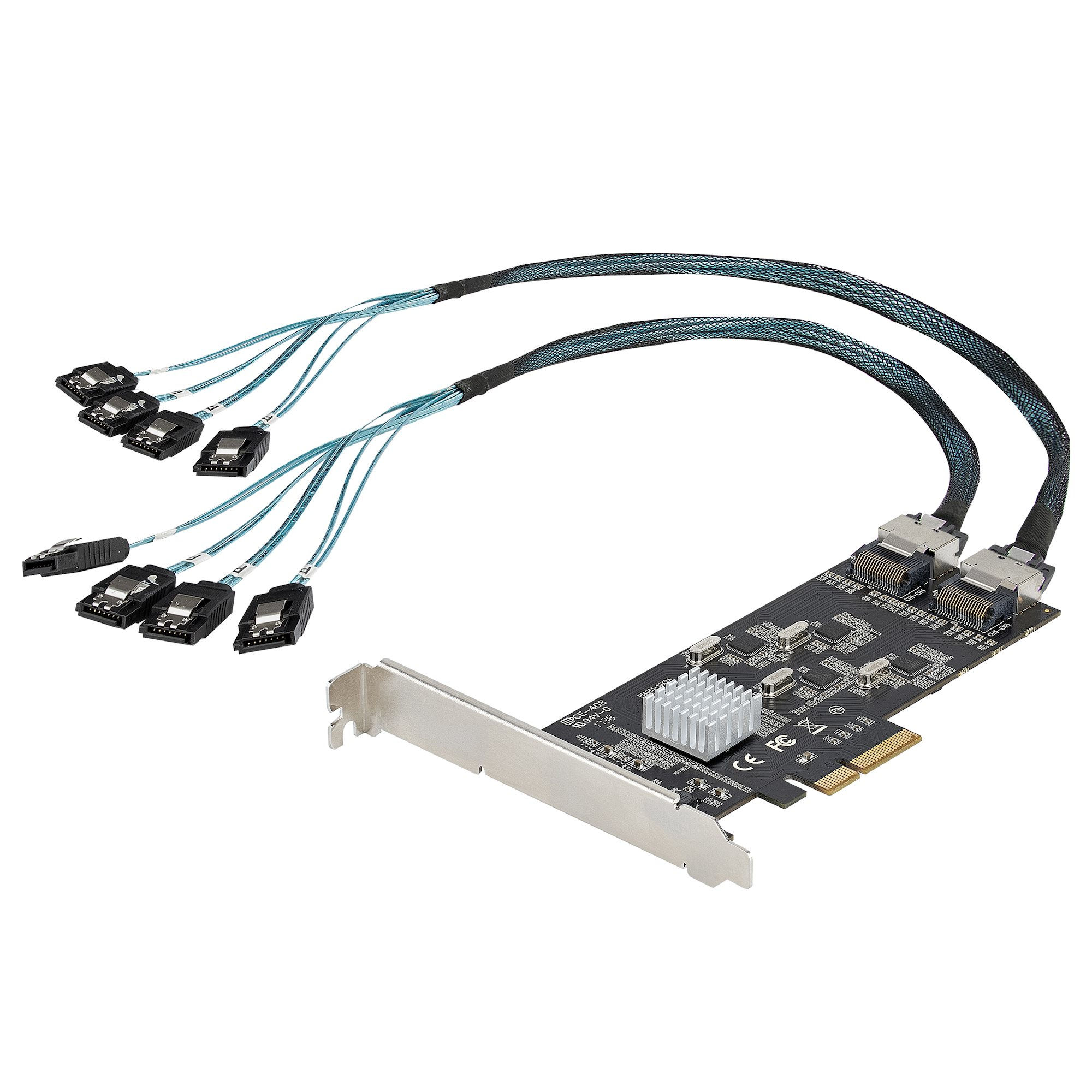

SATA III (6Gbps) | PCI Express Gen 2 | PCIe x4 Slot | 2x Mini-SAS Connectors | 2x Mini-SAS to 4x-SATA Cables Included This 8-port SATA III (6Gbps) controller enables you to add eight SATA 6Gbps hard drives (HDDs) or solid State Drives (SSDs) to your computer system or server via an available PCIe x4 card slot. The card supports SATA III and PCI-Express Gen 2 Specifications and four SATA controllers to deliver a high-performance data storage solution. Quad Controllers to Deliver 8-Port SATA 6Gbps Performance Featuring four 2-Port SATA 6Gbps controllers and a PCIe-x4 MUX, this SATA card enables the connection of eight high-performance SATA 6Gbps drives with a combined total throughput of up to 16Gbps. The SATA drives are connected via two Mini-SAS ports with two included Mini-SAS to 4x-SATA adapter cables. To ensure a secure connection, each SATA port on the included cables features a locking connector, that will prevent the drive from accidental disconnection when working inside your computer case. Wide Compatibility The PCIe MUX that's built into this controller card manages the downstream controllers, which improves motherboard compatibility by ensuring the card will work with motherboards that support bifurcation and motherboards that do not. To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with supports for PCIe Gen 2 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe Gen 1) at lower performance. The controller card is widely supported across all popular operating system platforms including Windows (XP and above), macOS (10.6.8 and above) and Linux (2.6.32 and above LTS kernels only). Hassle-Free Installation The SATA controller card features plug-and-play installation and can be installed in full-profile and low-profile computer systems with a full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft) , RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.
Key Features
StarTech.com 8 Port SATA PCIe Card - PCI Express 6Gbps SATA Expansion Adapter Card with 4 Host Controllers - SATA PCIe Controller Card - PCI-e x4 Gen 2 to SATA III - SATA HDD/SSD. Host interface: PCIe, Output interface: Mini-SAS, Expansion card standard: PCI 2.0. Product colour: Black. Chipset: Pericom - PI7C9X2G608GP, ASMedia - ASM1061, Data transfer rate (max): 6 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 68.6 mm, Depth: 150 mm, Height: 14.6 mm
Technical Deployment Advisory
Target Personnel
Storage Fabric Architects
Infrastructure Fit
Database Backends (SQL/Oracle)
"Engineered for high-throughput data paths or critical backup cycles, the STA-8P6G-PCIE-SATA-CARD provides the data integrity required for Database Backends (SQL/Oracle). Storage Fabric Architects will benefit from its performance consistency."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 8 Port SATA PCIe Card - PCI Express 6Gbps SATA Expansion Adapter Card with 4 Host Controllers - SATA PCIe Controller Card - PCI-e x4 Gen 2 to SATA III - SATA HDD/SSD (STA-8P6G-PCIE-SATA-CARD) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 8 Port SATA PCIe Card - PCI Express 6Gbps SATA Expansion Adapter Card with 4 Host Controllers - SATA PCIe Controller Card - PCI-e x4 Gen 2 to SATA III - SATA HDD/SSD includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 8 Port SATA PCIe Card - PCI Express 6Gbps SATA Expansion Adapter Card with 4 Host Controllers - SATA PCIe Controller Card - PCI-e x4 Gen 2 to SATA III - SATA HDD/SSD compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-8P6G-PCIE-SATA-CARD.
