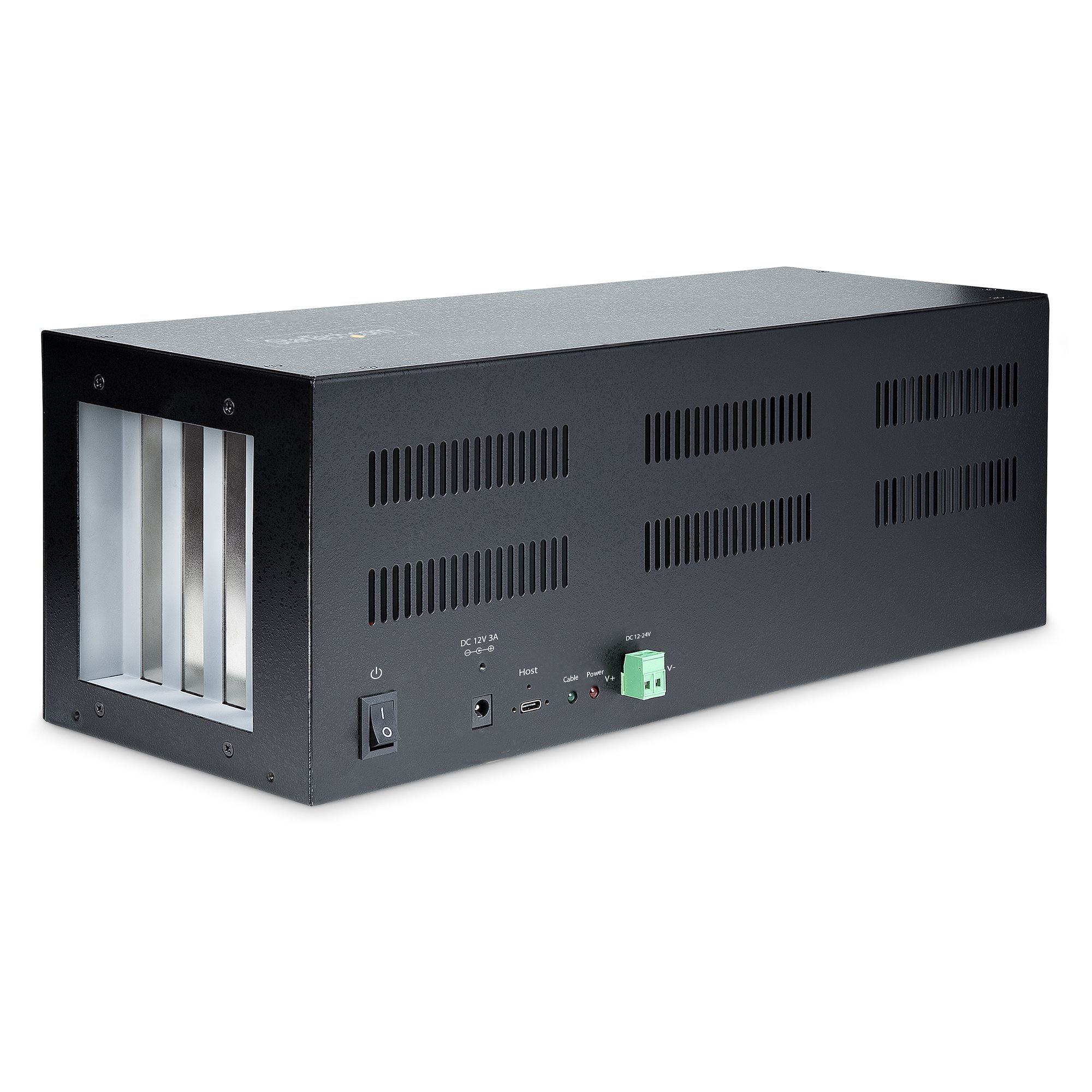

StarTech.com 4-Slot PCIe Expansion Chassis with PCIe x2 Host Card, PCIe 2.0 - 10Gbps, External PCIe Slots for Desktops/Servers, PCI Express Expansion Box/Adapter, 4 PCIe x1 Slots
Brand: StarTech.com · SKU: STA-4PCIE-PCIE-ENCLOSURE · MPN: 4-Slot PCIe Expansion Chassis with PCIe x2 Host Card, PCIe 2.0 - 10Gbps, External PCIe Slots for Desktops/Servers, PCI Express Expansion Box/Adapter, 4 PCIe x1 Slots · Category: Servers
StarTech.com 4-Slot PCIe Expansion Chassis with PCIe x2 Host Card, PCIe 2.0 - 10Gbps, External PCIe Slots for Desktops/Servers, PCI Express Expansion Box/Adapter, 4 PCIe x1 Slots, USB Type-C, PCIe, Terminal, Female, PCIe 2.0, Black, PC
Specifications
| Chipset | ASMedia - ASM1806 |
|---|---|
| Purpose | PC |
| Internal | No |
| Material | Steel |
| DC-in jack | Yes |
| User guide | Yes |
| Package depth | 200 mm |
| Package width | 420 mm |
| Host interface | USB Type-C |
| Output current | 3 A |
| Output voltage | 12 V |
| Package height | 240 mm |
| Package weight | 6 kg |
| Product colour | Black |
| Cables included | USB Type-C to USB Type-C |
| Output interface | PCIe, Terminal |
| Host interface gender | Female |
| Power supply included | Yes |
| External power adapter | Yes |
| Expansion card standard | PCIe 2.0 |
| Data transfer rate (max) | 10 Gbit/s |
| Master (outer) case width | 520 mm |
| Storage temperature (T-T) | -20 - 75 °C |
| Master (outer) case height | 270 mm |
| Warranty | 3-Year Warranty |
Product Description
Steel Housing | Mounting Brackets | Screw-lock USB-C Cable The robust expansion chassis supports 4 PCIe x1 add-on cards and features up to 10Gbps of total bandwidth. The expansion chassis connects to the host using a proprietary USB-C PCIe x2 adapter card and a locking USB Type-C cable. Take advantage of features such as Wake-on-LAN (WoL), support for PCI Express Advanced Error Reporting (AER), backwards compatibility, and multiple power capabilities. External PCIe Expansion Box The chassis communicates with the desktop computer or server using a host card (PCIe 2.0 x2) in combination with the 5.9ft (1.8m) USB Type-C (USB-C) cable with screw-locks. The included low-profile bracket widens the compatibility as you can install the host card in small form factor (SFF) systems. Features support for PCI-E Advanced Error Reporting (AER) and EndPoint Cyclic Redundancy Check (ECRC). Both of these PCIe features to aid in establishing and maintaining PCIe connections between devices. The PCI Express expansion box does not require drivers to be installed. It is operating system independent and compatible with Windows, Linux, or macOS. Note: the expansion cards installed in the chassis may require drivers. Robust Construction The expansion chassis is built with SECC galvanized steel, enabling it to operate in harsh environments. It features an operating temperature range of 32° to 140°F (0° to 60°C). The vented design of the chassis allows for passive cooling and quiet operation. Secure the enclosure to the desired location using the mounting brackets and included hardware. Power Options Power the expansion chassis via the PCIe Host Adapter Card with 5 or 12VDC delivered through the USB Type-C cable, the DC power adapter 12V 3A, or the terminal block port that supports 12 to 24VDC and 3A. Applications There are multiple application scenarios: • Upgrade or swap cards with ease. • Test hardware between multiple computers, operating systems, or with different devices/peripherals. • Maximize the I/O capabilities of the host system by installing Ethernet or fiber, USB, serial, or parallel PCIe cards. Avoid costly computer/server upgrades when more expansion slots are unavailable. The external PCIe slots for desktop is backed for two years, including free lifetime 24/5 multi-lingual technical assistance. The StarTech.com Advantage
Key Features
StarTech.com 4-Slot PCIe Expansion Chassis with PCIe x2 Host Card, PCIe 2.0 - 10Gbps, External PCIe Slots for Desktops/Servers, PCI Express Expansion Box/Adapter, 4 PCIe x1 Slots. Host interface: USB Type-C, Output interface: PCIe, Terminal, Host interface gender: Female. Product colour: Black, Purpose: PC. Chipset: ASMedia - ASM1806, Data transfer rate (max): 10 Gbit/s. Power consumption (typical): 36 W, Output voltage: 12 V, Output current: 3 A. Cables included: USB Type-C to USB Type-C, Package width: 420 mm, Package depth: 200 mm
Technical Deployment Advisory
Target Personnel
Virtualization Engineers
Infrastructure Fit
Private Cloud Infrastructure
"The StarTech.com STA-4PCIE-PCIE-ENCLOSURE is architected for high-density compute environments requiring 24/7 reliability. It is a robust choice for Private Cloud Infrastructure where performance and hardware stability are non-negotiable."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 4-Slot PCIe Expansion Chassis with PCIe x2 Host Card, PCIe 2.0 - 10Gbps, External PCIe Slots for Desktops/Servers, PCI Express Expansion Box/Adapter, 4 PCIe x1 Slots (STA-4PCIE-PCIE-ENCLOSURE) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 4-Slot PCIe Expansion Chassis with PCIe x2 Host Card, PCIe 2.0 - 10Gbps, External PCIe Slots for Desktops/Servers, PCI Express Expansion Box/Adapter, 4 PCIe x1 Slots includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 4-Slot PCIe Expansion Chassis with PCIe x2 Host Card, PCIe 2.0 - 10Gbps, External PCIe Slots for Desktops/Servers, PCI Express Expansion Box/Adapter, 4 PCIe x1 Slots compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-4PCIE-PCIE-ENCLOSURE.
