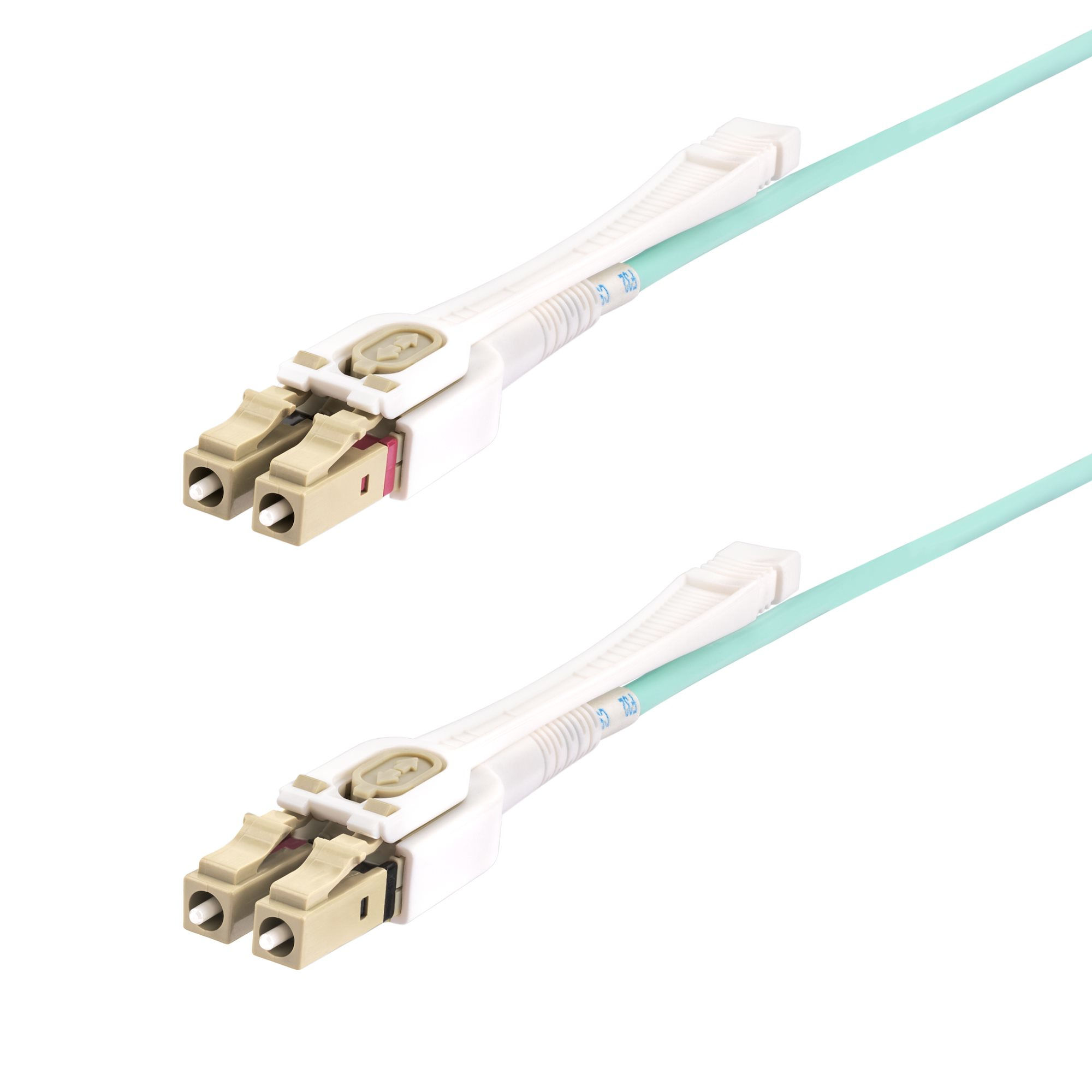

StarTech.com 3m (9.8ft) LC to LC (UPC) OM4 Multimode Fiber Optic Cable w/Push Pull Tabs, 50/125µm, 100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord

Brand: StarTech.com · SKU: STA-450FBLCLC3PP · MPN: 3m (9.8ft) LC to LC (UPC) OM4 Multimode Fiber Optic Cable w/Push Pull Tabs, 50/125µm, 100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord · Category: Networking

StarTech.com 3m (9.8ft) LC to LC (UPC) OM4 Multimode Fiber Optic Cable w/Push Pull Tabs, 50/125µm, 100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord
$78.72
In Stock • 10 units

StarTech.com 3m (9.8ft) LC to LC (UPC) OM4 Multimode Fiber Optic Cable w/Push Pull Tabs, 50/125µm, 100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord, 3 m, LOMM, OM4, LC, LC

View Networking Products

Specifications

Cable typeLOMM
Connector 1LC
Connector 2LC
Full duplexYes
Cable length3 m
Core diameter50 µm
Package depth200 mm
Package width220 mm
Bending radius6 cm
Cable diameter2.9 mm
Package height15 mm
Product colourAqua colour
Jacket materialLow smoke zero halogen (LSZH)
Fibre optic typeOM4
Cladding diameter125 µm
Quantity per pack1 pc(s)
Connector 1 genderMale
Connector 2 genderMale
Data transfer rate100 Gbit/s
Fiber mode structureMulti-mode
Wavelengths supported850,1300 nm
Compliance certificatesCE, RoHS
Master (outer) case width410 mm
Storage temperature (T-T)-20 - 60 °C
Warranty3-Year Warranty

Product Description

Optimize fiber patch cabling in high-density patching applications where cables are prone to bending LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable enables 40/100G network connections. The push-pull tabs on each connector ensure quick connection and removal, facilitating accurate installation in high connection density environments. The bend-insensitive fiber and molded strain reliefs support cable runs requiring micro/macro bends while maintaining low attenuation. The retractable strain-relief housings enable toolless in-field polarity swapping. Color-coded LC-Duplex connectors ensure error-free polarity configuration. Engineered for Optimal Performance Precision-manufactured ceramic ferrules ensure accurate fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications, the LC to LC UPC polished fiber ends greatly improves return loss characteristics. The Laser-Optimized Multi-Mode Fiber (LOMMF) OM4 fiber patch cable is ideal for 850nm and 1300nm Vertical-Cavity Surface-Emitting Laser (VCSEL) and LED sources. Compatibility This multimode 50/125µm fiber optic patch cord is backward compatible with OM3 and 1/10/40G networks, ensuring a reliable connection in legacy fiber environments. LSZH Cable Jacket Housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, this OM4 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered. Each OM4 fiber cable is also individually tested for insertion loss performance that meets or exceeds the TIA/EIA-568 industry standard, for guaranteed compatibility and 100% reliability. The StarTech.com Advantage

Key Features

StarTech.com 3m (9.8ft) LC to LC (UPC) OM4 Multimode Fiber Optic Cable w/Push Pull Tabs, 50/125µm, 100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord. Cable length: 3 m, Cable type: LOMM, Fibre optic type: OM4, Connector 1: LC, Connector 2: LC, Core diameter: 50 µm, Full duplex

Technical Deployment Advisory

Target Personnel

NOC Managers

Infrastructure Fit

Edge Compute Deployments

"NOC Managers should consider the STA-450FBLCLC3PP for Edge Compute Deployments where consistent throughput and robust connectivity are mandatory."

Frequently Asked Questions

Is this product genuine OEM?

Yes, this StarTech.com 3m (9.8ft) LC to LC (UPC) OM4 Multimode Fiber Optic Cable w/Push Pull Tabs, 50/125µm, 100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord (STA-450FBLCLC3PP) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This StarTech.com 3m (9.8ft) LC to LC (UPC) OM4 Multimode Fiber Optic Cable w/Push Pull Tabs, 50/125µm, 100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the StarTech.com 3m (9.8ft) LC to LC (UPC) OM4 Multimode Fiber Optic Cable w/Push Pull Tabs, 50/125µm, 100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-450FBLCLC3PP.
