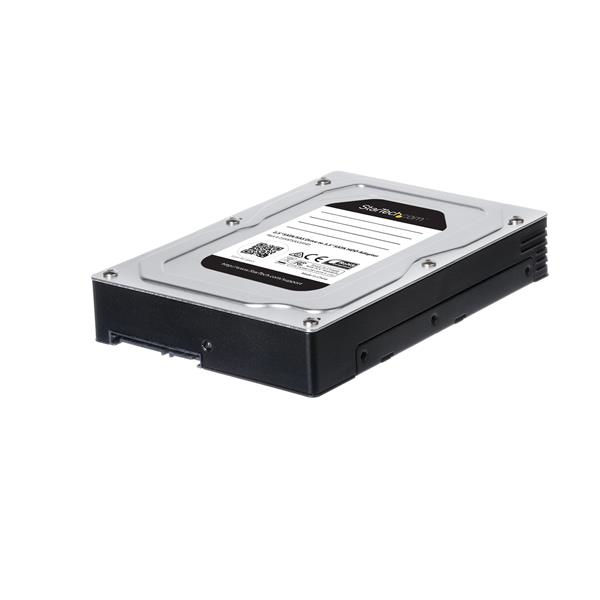

StarTech.com 2.5" to 3.5" Hard Drive Adapter - For SATA and SAS SSDs/HDDs
Brand: StarTech.com · SKU: STA-25SATSAS35HD · MPN: 2.5" to 3.5" Hard Drive Adapter - For SATA and SAS SSDs/HDDs · Category: Storage
StarTech.com 2.5" to 3.5" Hard Drive Adapter - For SATA and SAS SSDs/HDDs, 8.89 cm (3.5"), Carrier panel, Black, Silver, 2.5", Serial ATA, Serial Attached SCSI (SAS), Aluminium, Plastic
Specifications
| Type | Carrier panel |
|---|---|
| Depth | 146 mm |
| Width | 101 mm |
| Height | 26 mm |
| Manual | Yes |
| Weight | 252 g |
| HDD size | 2.5" |
| Hot-swap | Yes |
| Key lock | No |
| Material | Aluminium, Plastic |
| Certification | CE, FCC |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| Number of fans | 0 fan(s) |
| Package weight | 252 g |
| Product colour | Black, Silver |
| Size (imperial) | 8.89 cm (3.5") |
| Data transfer rate | 6 Gbit/s |
| S.M.A.R.T. support | Yes |
| Compliance certificates | RoHS |
| Number of HDDs supported | 1 |
| Storage temperature (T-T) | 0 - 55 °C |
| Package dimensions (WxDxH) | 112 x 160 x 35 mm |
| Harmonized System (HS) code | 84733080 |
| Operating temperature (T-T) | -20 - 55 °C |
| Warranty | 3-Year Warranty |
| Weight | 252 g |
| Dimensions | 101 mm x 146 mm x 26 mm |
Product Description
Turn almost any 2.5" SATA/SAS drive into a 3.5" drive This 2.5" to 3.5" hard drive adapter lets you install a 2.5" SATA or SAS hard drive (HDD) or solid-state drive (SSD) into an internal or external 3.5" drive bay, using standard drive-mounting holes. Convert a 2.5" drive into a 3.5" drive The 2.5" to 3.5" hard drive bay adapter lets you install a newer, higher performance drive such as an SSD into a legacy system that may only support a 3.5" hard drive. It provides a cost-efficient way to enhance storage performance and reliability without expensive upgrades to core IT systems. It's also ideal for system administrators who want to build a system that takes advantage of the increased performance of a 2.5" HDD/SSD. To utilize the full speed potential of your SATA/SAS drive, the adapter supports transfer speeds up to 6Gbps. Easy and flexible installation You can install the adapter into a desktop, server, storage-array, hot-swap bay, and drive drawer. It offers permanent installation in a 3.5" drive bay with standard mounting holes. When the adapter is installed, you simply slide a 2.5" HDD/SSD into the adapter enclosure, with no tools required. The adapter is suitable for drives with a height of up to 15 mm. Virtually any 2.5" SATA/SAS drive can be made to look and function like a 3.5" drive. Identify and track your drives The adapter includes a label you can use to track and record information about the installed drive. The 25SATSAS35HD is backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage - Supports 2.5" form factor drives up to 15 mm in height - Installs into an internal or external 3.5" drive bay; uses standard mounting holes for internal installs - Tool-less 2.5" drive installation
Key Features
StarTech.com 2.5" to 3.5" Hard Drive Adapter - For SATA and SAS SSDs/HDDs. Size (imperial): 8.89 cm (3.5"), Type: Carrier panel, Product colour: Black, Silver. Width: 101 mm, Depth: 146 mm, Height: 26 mm. Package dimensions (WxDxH): 112 x 160 x 35 mm, Package weight: 252 g
Technical Deployment Advisory
Target Personnel
Storage Fabric Architects
Infrastructure Fit
Database Backends (SQL/Oracle)
"Engineered for high-throughput data paths or critical backup cycles, the STA-25SATSAS35HD provides the data integrity required for Database Backends (SQL/Oracle). Storage Fabric Architects will benefit from its performance consistency."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 2.5" to 3.5" Hard Drive Adapter - For SATA and SAS SSDs/HDDs (STA-25SATSAS35HD) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 2.5" to 3.5" Hard Drive Adapter - For SATA and SAS SSDs/HDDs includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 2.5" to 3.5" Hard Drive Adapter - For SATA and SAS SSDs/HDDs compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-25SATSAS35HD.
