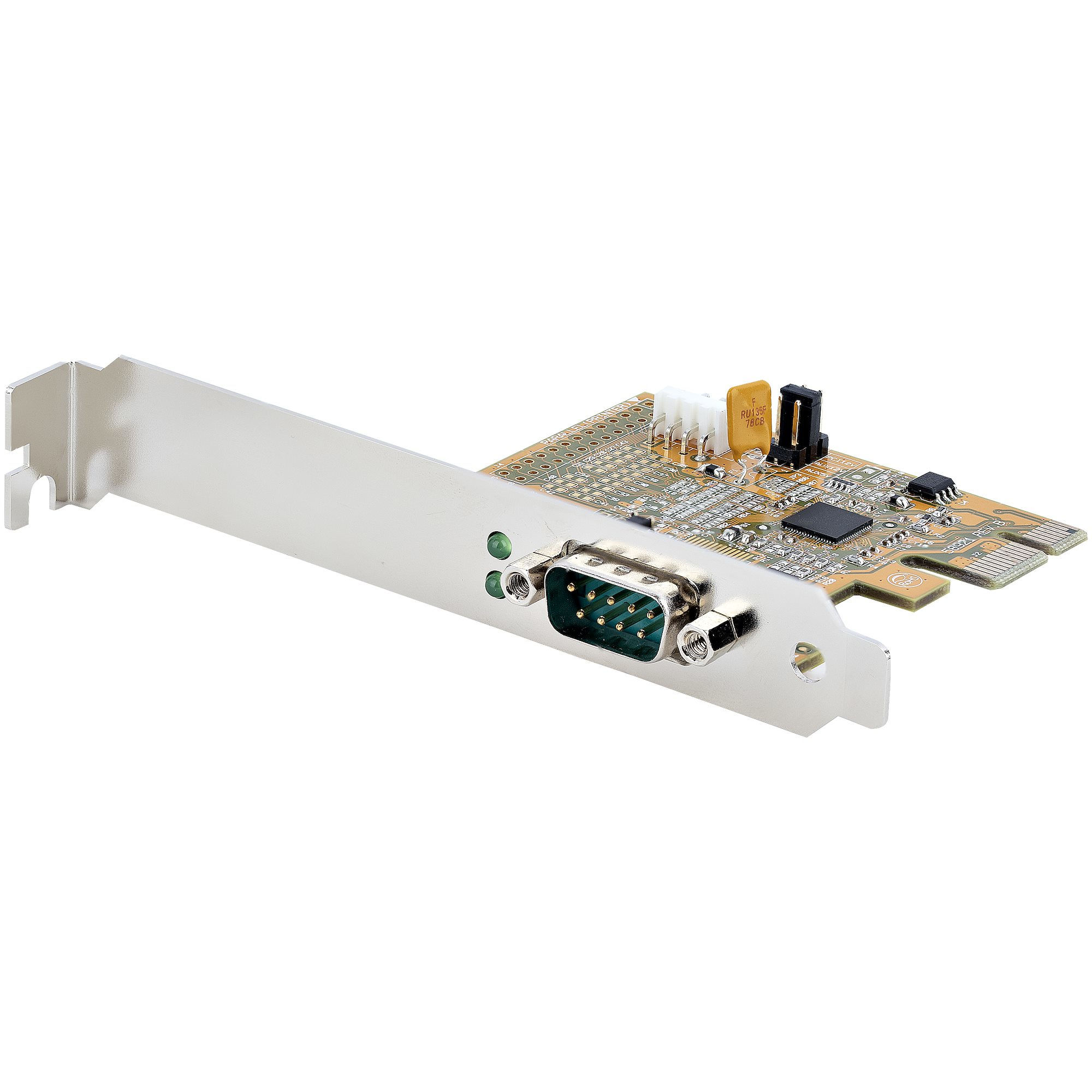

StarTech.com PCI Express Serial Card, PCIe to RS232 (DB9) Serial Interface Card, PC Serial Card w/ 16C1050 UART, Standard or Low Profile Brackets, COM Retention, Windows & Linux
Brand: StarTech.com · SKU: STA-11050-PC-SERIAL-CARD · MPN: PCI Express Serial Card, PCIe to RS232 (DB9) Serial Interface Card, PC Serial Card w/ 16C1050 UART, Standard or Low Profile Brackets, COM Retention, Windows & Linux · Category: Components
StarTech.com PCI Express Serial Card, PCIe to RS232 (DB9) Serial Interface Card, PC Serial Card w/ 16C1050 UART, Standard or Low Profile Brackets, COM Retention, Windows & Linux, PCIe, Serial, Full-height / Low-profile, PCIe 2.0, RS-232, Yellow
Specifications
| Depth | 67 mm |
|---|---|
| Width | 65 mm |
| Height | 18 mm |
| Weight | 42 g |
| Chipset | ASIX - AX99100, ASIX - ZT3243LFEY |
| Internal | Yes |
| Material | Steel |
| Baud rate | 921.6 Kbit/s |
| Data bits | 5, 6, 7, 8, 9 |
| Parity bit | Even, Mark, No, Odd, Space |
| Package depth | 144 mm |
| Package width | 207 mm |
| Host interface | PCIe |
| LED indicators | Activity |
| Package height | 38 mm |
| Package weight | 200 g |
| Product colour | Yellow |
| Output interface | Serial |
| Flow control support | Yes |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Compliance certificates | CE, RoHS |
| Expansion card standard | PCIe 2.0 |
| Quick installation guide | Yes |
| Warranty | 3-Year Warranty |
| Weight | 42 g |
| Dimensions | 65 mm x 67 mm x 18 mm |
Product Description
Baud Rate 921.6 Kbps per Port | 256-byte FIFO | PCIe 2.0 x1 Add serial communication support to your desktop computer or Small Form Factor (SFF) system, using this serial card. RS-232 (DB9) support enables control and communication with a serial peripheral device. Legacy Connectivity Install this card to enable the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The PCIe serial card is ideal for system upgrades in a wide range of applications for logistics, manufacturing, and freight sectors, and the IT industry, such as POS equipment, security systems, A/V installations, and more. Connect with Ease The 1-Port RS-232 card features 16C1050 UART support, 256-byte FIFO (transmit/receive), bi-directional speeds up to 921.6 Kbps, low-profile bracket is included for SFF systems, and serial port LED status lights. In addition, it supports Windows and Linux systems for maximum compatibility. 11050-PC-SERIAL-CARD is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance. The StarTech.com Advantage
Key Features
StarTech.com PCI Express Serial Card, PCIe to RS232 (DB9) Serial Interface Card, PC Serial Card w/ 16C1050 UART, Standard or Low Profile Brackets, COM Retention, Windows & Linux. Host interface: PCIe, Output interface: Serial, Expansion card form factor: Full-height / Low-profile. Product colour: Yellow, LED indicators: Activity. Chipset: ASIX - AX99100, ASIX - ZT3243LFEY, Baud rate: 921.6 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2016, Windows Server 2019. Width: 65 mm, Depth: 67 mm, Height: 18 mm
Technical Deployment Advisory
Target Personnel
Lifecycle Management Leads
Infrastructure Fit
Hardware Maintenance & Repairs
"For Hardware Maintenance & Repairs, using verified parts like the STA-11050-PC-SERIAL-CARD prevents downtime and maintains the service integrity expected by Lifecycle Management Leads."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com PCI Express Serial Card, PCIe to RS232 (DB9) Serial Interface Card, PC Serial Card w/ 16C1050 UART, Standard or Low Profile Brackets, COM Retention, Windows & Linux (STA-11050-PC-SERIAL-CARD) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com PCI Express Serial Card, PCIe to RS232 (DB9) Serial Interface Card, PC Serial Card w/ 16C1050 UART, Standard or Low Profile Brackets, COM Retention, Windows & Linux includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com PCI Express Serial Card, PCIe to RS232 (DB9) Serial Interface Card, PC Serial Card w/ 16C1050 UART, Standard or Low Profile Brackets, COM Retention, Windows & Linux compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-11050-PC-SERIAL-CARD.
