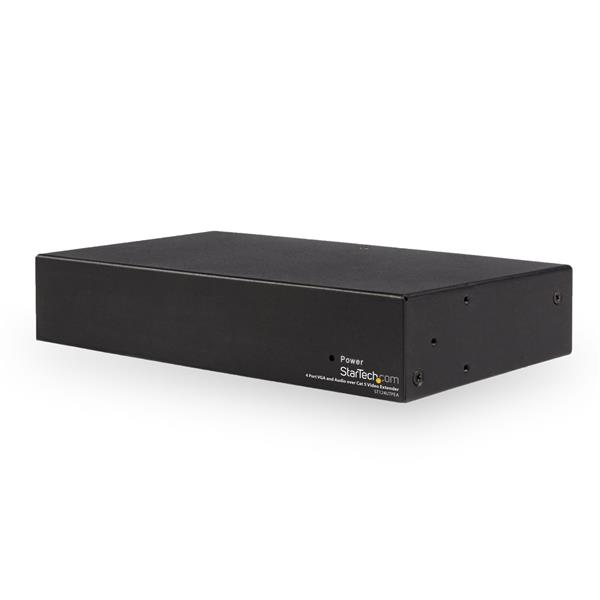

StarTech.com 4 Port VGA and Audio over Cat 5 Video Extender
Brand: StarTech.com · SKU: ST124UTPEA · MPN: 4 Port VGA and Audio over Cat 5 Video Extender · Category: Components
StarTech.com 4 Port VGA and Audio over Cat 5 Video Extender, 1920 x 1200 pixels, AV transmitter, 300 m, Black
Specifications
| Type | AV transmitter |
|---|---|
| Manual | Yes |
| Weight | 660 g |
| Material | Aluminium |
| DC-in jack | Yes |
| Audio input | 2 x 3.5 mm |
| Daisy chain | Yes |
| Audio system | stereo |
| Connector(s) | High Density 15 pin, 4x RJ45, 3.5mm |
| Audio support | Yes |
| Certification | CE, FCC |
| Output current | 0.6 A |
| Package weight | 1.8 kg |
| Product colour | Black |
| Cables included | Audio (3.5mm), VGA |
| Operating voltage | 12 V |
| DC-in requirements | 12V |
| Dimensions (WxDxH) | 119 x 220 x 41 mm |
| Maximum resolution | 1920 x 1200 pixels |
| RJ-45 output ports | 4 |
| Cable types supported | Cat5 |
| External power adapter | Yes |
| Compliance certificates | RoHS |
| VGA (D-Sub) input ports | 1 |
| Warranty | 3-Year Warranty |
| Weight | 660 g |
| Dimensions | 119 x 220 x 41 mm |
Product Description
The ST124UTPEA VGA Video Extender over Cat 5 with Audio simplifies the implementation of digital signage solutions by allowing a single VGA source and corresponding audio to be broadcast to multiple displays at up to 300m (950ft) away over standard Cat 5 or better UTP cabling. Consisting of the transmitter unit only, this product requires a single receiver unit per remote display that you are connecting. The VGA extender offers the option of using our STUTPEALR receiver unit. or the STUTPRXWLA wall-plate receiver. For even more versatility, you also have the option to expand the amount of remote displays in your setup by adding the STUTPEA4X VGA & Audio over Cat 5 Line Splitter to your setup multiplying the number of potential displays by four - allowing your VGA and accompanying audio signal to be broadcast to up to a total 16 displays. Backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage - Allows you to make use of existing Ethernet infrastructure to extend VGA displays and audio - The UTPEA transmitter / broadcaster units are compatible with the STUTPRXWLA wall-plate receiver for more professional and clean installations - Choice of using a four port line splitter to add more displays offering maximum flexibility for any situation
Key Features
StarTech.com 4 Port VGA and Audio over Cat 5 Video Extender. Type: AV transmitter, Maximum resolution: 1920 x 1200 pixels, Cable types supported: Cat5. Audio input: 2 x 3.5 mm. Operating voltage: 12 V, Output current: 0.6 A. Dimensions (WxDxH): 119 x 220 x 41 mm, Weight: 660 g. Package dimensions (WxDxH): 70 x 310 x 255 mm, Package weight: 1.8 kg
Technical Deployment Advisory
Target Personnel
IT Procurement Officers
Infrastructure Fit
Mission-Critical Parts Replacement
"For Mission-Critical Parts Replacement, using verified parts like the ST124UTPEA prevents downtime and maintains the service integrity expected by IT Procurement Officers."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 4 Port VGA and Audio over Cat 5 Video Extender (ST124UTPEA) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 4 Port VGA and Audio over Cat 5 Video Extender includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 4 Port VGA and Audio over Cat 5 Video Extender compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ST124UTPEA.
