Brand: Seagate · SKU: ST-225 · MPN: ST-225 · Category: Components

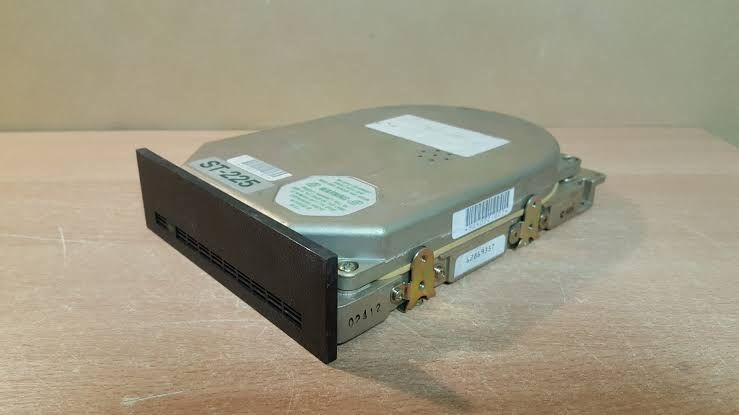

The Seagate ST-225 is a legendary 5.25-inch half-height hard disk drive, widely considered the most successful and best-selling hard drive of the 1980s. Offering 21.4 MB of unformatted and 20.4 MB of formatted capacity, it utilizes the Modified Frequency Modulation (MFM) encoding scheme via the industry-standard ST-412/ST-506 interface. Known affectionately as 'Old Reliable,' the ST-225 was a staple for IBM PC/XT and AT compatibles. It features a stepper motor actuator, four read/write heads, and two oxide-coated platters. Its rugged construction and 20,000-hour MTBF made it the standard for early desktop storage solutions.
| MTBF | 20,000 hours |
|---|---|
| Heads | 4 |
| Cylinders | 615 |
| Interface | MFM (ST-506 / ST-412) |
| Form Factor | 5.25-inch Half-Height |
| Rotational Speed | 3,600 RPM |
| Average Seek Time | 65 ms |
| Sectors per Track | 17 |
| Data Transfer Rate | 5.0 Mbits/sec |
| Capacity (Formatted) | 20.4 MB |
| Warranty | Vintage Hardware - Sold As-Is / No Manufacturer Warranty |
| Weight | 2.75 lbs (1.25 kg) |
| Dimensions | 1.63 x 5.75 x 8.00 inches (41.4 x 146 x 203.2 mm) |
The definitive 20MB MFM hard drive of the early computing era, providing reliable storage for vintage x86 systems.
