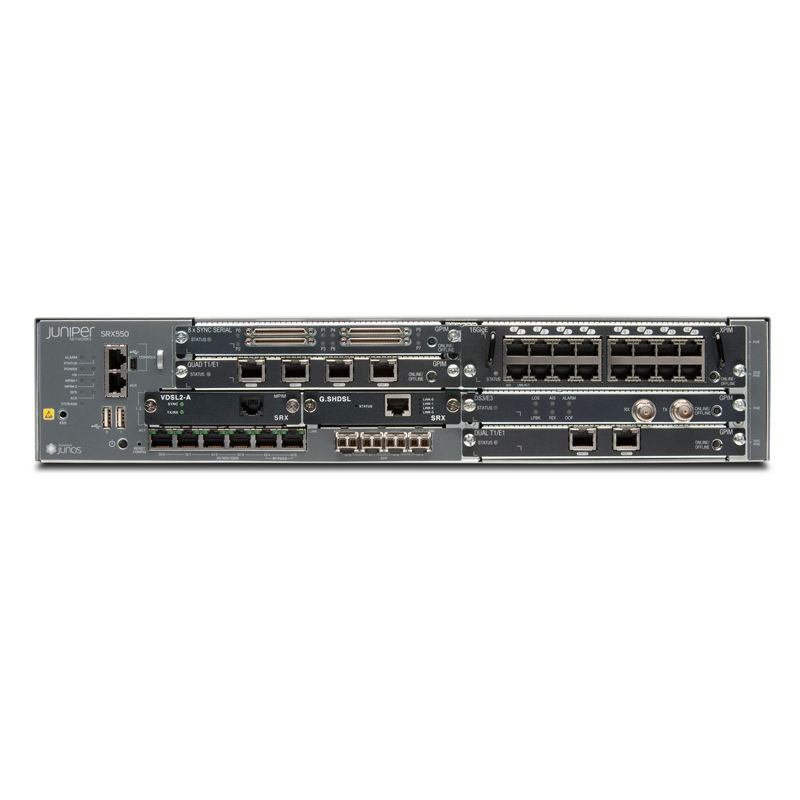

SRX550-645AP-M, Juniper SRX550 Services Gateway, 4G DRAM/8G CF/1 AC PSU
SKU: SRX550-645AP-M · MPN: SRX550-645AP-M · Category: Components
SRX550 Services Gateway with 4G DRAM, 8G CF and 1 AC PSU
Specifications
| USB | 2 |
|---|---|
| Fixed I/O | 6 x 10/100/1000 BASE-T + 4 SFP |
| I/O slots | 2 x SRX Series Mini-PIM, 6 x GPIM or multiple GPIM and XPIM combinations |
| Description | SRX550 Services Gateway with 4 GB DRAM and 8 GB CF, 2 RU height, 6 GPIM slots, 2 Mini-PIM slots, 6 10/100/1000BASE-T ports, 4GbE SFP ports, dual PS slots, fans; ships with one 645 watt AC power supply with 247 W PoE power (power cord and rack-mount kit included) |
| Flash memory | 2 GB/8 GB CF internal |
| Memory slots | 2 DIMM |
| Memory (DRAM) | 2 GB/4 GB |
| Rack-mountable | Yes, 2 RU |
| IPS performance | 800 Mbps |
| Maximum PoE power | 247 W redundant, or 494 W nonredundant |
| Power supply (AC) | 100–240 VAC, single 645 W or dual 645 W |
| Concurrent VPN tunnels | 2,000 |
| Dimensions (W x H x D) | 17.5 x 3.5 x 18.2 in (44.4 x 8.8 x 46.2 cm) |
| Operational temperature | 32° to 104° F (0° to 40°C) |
| Average heat dissipation | 238 BTU/hr |
| Average power consumption | 85 W |
| Maximum security policies | 7256 |
| Routing (Packet Mode) PPS | 1000 Kpps |
| Firewall performance (max) | 5.5 Gbps |
| Maximum concurrent sessions | 375,000 |
| USB port for external storage | Yes |
| Junos OS software version tested | Junos OS 12.1 |
| Services and Routing Engine slots | No |
| Redundant power supply (hot swappable) | Yes (up to maximum capacity of single PSU) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this SRX550-645AP-M, Juniper SRX550 Services Gateway, 4G DRAM/8G CF/1 AC PSU (SRX550-645AP-M) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This SRX550-645AP-M, Juniper SRX550 Services Gateway, 4G DRAM/8G CF/1 AC PSU includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the SRX550-645AP-M, Juniper SRX550 Services Gateway, 4G DRAM/8G CF/1 AC PSU compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the SRX550-645AP-M.
