Brand: Juniper Networks · SKU: SRX320-SYS-JE-P · MPN: SRX320-SYS-JE-P · Category: Components

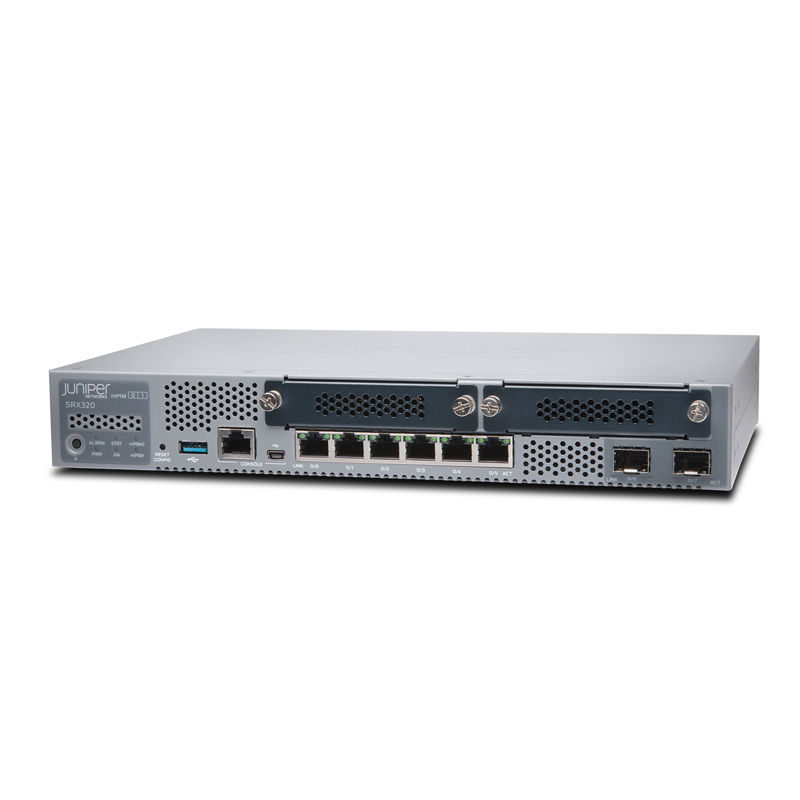

The Juniper SRX320-SYS-JE-P is a desktop-form-factor Services Gateway in the SRX300 line, designed for securely connecting small distributed enterprise branch offices. It consolidates security, routing, switching, and WAN connectivity into a single platform. This specific SKU includes hardware with Power over Ethernet (PoE+) capability and Junos Software Enhanced (JSE), which adds Application Security features to the base services (Firewall, NAT, IPSec, Routing, MPLS, Switching). The device features six 1GbE ports (of which 6 are PoE+ capable), two 1GbE SFP ports, two Mini-PIM slots for expansion, 4 GB of DRAM, and 8 GB of flash memory. It supports up to 1.9 Gbps firewall throughput and 336 Mbps IPsec VPN throughput.
| PoE Ports | 6x1GbE PoE+ |
|---|---|
| SFP Ports | 2x1GbE |
| Form Factor | Desktop |
| Mini PIM Slots | 2 |
| IPS Performance | 100 Mbps |
| Storage (Flash) | 8 GB |
| Max SSL VPN Users | 50 |
| Max Security Zones | 16 |
| New Sessions/Second | 5,000 |
| System Memory (RAM) | 4 GB |
| Total Onboard Ports | 8x1GbE |
| IPsec VPN Performance | 336 Mbps (1400B) / 250 Mbps (AES256+SHA-1 / 3DES+SHA-1) |
| Max Security Policies | 1,000 |
| Junos Software Included | Junos Software Enhanced (JSE) |
| Max Concurrent Sessions | 64,000 |
| Firewall Performance (Max) | 1 Gbps (or 1.9 Gbps for 1518B packets) |
| Warranty | Standard Juniper Warranty (Check seller/distributor for specifics) |
| Weight | 3.4 lb (1.55 kg) |
| Dimensions | 11.81 in. wide, 1.73 in. high, and 7.52 in. deep (29.99 x 4.39 x 19.10 cm) |
The SRX320 Services Gateway with PoE and JUNOS Enhanced (SRX320-SYS-JE-P) is a compact, high-performance security appliance built for small to mid-sized branch offices. It provides application security capabilities alongside standard routing, switching, and VPN functionality, ensuring secure, consolidated connectivity.
Yes, this Juniper SRX320 Services Gateway with PoE and JUNOS Enhanced (SRX320-SYS-JE-P) is 100% genuine Juniper Networks hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Juniper SRX320 Services Gateway with PoE and JUNOS Enhanced includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the SRX320-SYS-JE-P.
