Brand: Juniper Networks · SKU: SRX-MP-1T1E1-R · MPN: SRX-MP-1T1E1-R · Category: Components

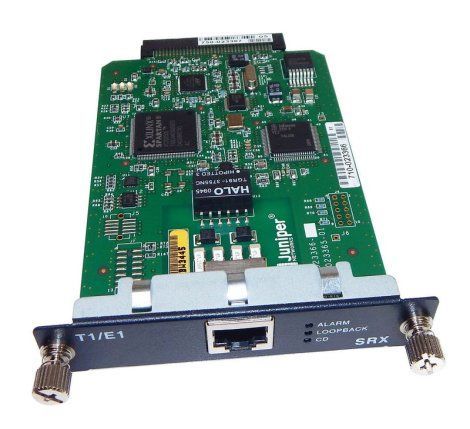

The SRX-MP-1T1E1-R is a modular interface card designed for the Juniper Networks SRX Series Services Gateways. It provides the physical connection to T1 or E1 network media types and also performs T1 or E1 framing and line-speed signaling, integrating these digital telecommunications interfaces into the gateway. It supports connectivity for both T1 (DS1) and E1 (ISDN PRI) interfaces and features an integrated CSU/DSU to eliminate the need for a separate external device. The card is hot-swappable.
| Features | Integrated CSU/DSU, Loopback, Extended Super Frame (ESF) Compliant Standards :G.703 |
|---|---|
| Form Factor | Plug-in module (Mini-PIM) |
| Data Link Protocol | Frame Relay, PPP, HDLC |
| Data Transfer Rate | 2048 MBps |
| Interface Provided | 1 x T1/E1 – RJ-48 |
| Line Coding Format | HDB3, AMI, B8ZS |
| Media Type Supported | Twisted Pair |
| Connectivity Technology | Wired |
| Humidity Range Operating | 5 – 90% (non-condensing) |
| Max Operating Temperature | 104 degree Fahrenheit |
| Min Operating Temperature | 32 degree Fahrenheit |
| Warranty | 1 Year (New) |
| Weight | 2.89 ounce |
| Dimensions | 3.7 inch (Width) x 5.7 inch (Depth) x 0.8 inch (Height) |
The 1-Port T1/E1 Mini-Physical Interface Module (Mini-PIM) provides the physical connection to T1 or E1 network media types and also performs T1 or E1 framing and line-speed signaling.
Yes, this Juniper Networks 1-Port T1/E1 Mini-Physical Interface Module (Mini-PIM) (SRX-MP-1T1E1-R) is 100% genuine Juniper Networks hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Juniper Networks 1-Port T1/E1 Mini-Physical Interface Module (Mini-PIM) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the SRX-MP-1T1E1-R.
