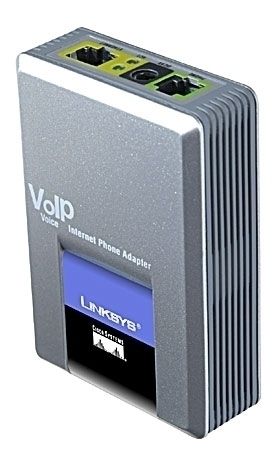

Linksys Phone Adapter + FXS Port gateway/controller
Brand: Linksys · SKU: SPA1001 · MPN: SPA1001 · Category: Components
Linksys Phone Adapter + FXS Port, G.711, G.723.1, G.726, HTTP, HTTPS, TFTP, IPv4, ARP, DHCP, ICMP, TCP, UDP, RTP, RTCP, SIPv2, 256-bit AES, 100-240, 50/60, 5 W. Linksys Phone Adapter + FXS Port gateway/controller (part number SPA1001) is an enterprise components product available from Server Tech Central. Key specifications include weight 76.5 g, i/o ports 1x Phone (FXS) 1x LAN 1x Power, voice codecs G.711, G.723.1, G.726, certification FCC Part 15 Class B, CE, A-Tick, C-Tick, dimensions (wxdxh) 94 x 63 x 28 mm, power requirements 100-240, 50/60, security algorithms 256-bit AES, management protocols HTTP, HTTPS, TFTP. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Weight | 76.5 g |
|---|---|
| I/O ports | 1x Phone (FXS) 1x LAN 1x Power |
| Voice codecs | G.711, G.723.1, G.726 |
| Certification | FCC Part 15 Class B, CE, A-Tick, C-Tick |
| Dimensions (WxDxH) | 94 x 63 x 28 mm |
| Power requirements | 100-240, 50/60 |
| Security algorithms | 256-bit AES |
| Management protocols | HTTP, HTTPS, TFTP |
| Logging and monitoring | SysLog |
| Storage temperature (T-T) | -25 - 85 °C |
| Operating temperature (T-T) | 5 - 45 °C |
| Power consumption (typical) | 5 W |
| Supported network protocols | IPv4, ARP, DHCP, ICMP, TCP, UDP, RTP, RTCP, SIPv2 |
| Operating relative humidity (H-H) | 10 - 90% |
| Warranty | 3-Year Warranty |
| Weight | 76.5 g |
Product Description
Inexpensive, easy to install and simple-to-use, the Linksys SPA-1001 connects a standard telephone or fax machine to IP-based data networks. IP telephony service providers and enterprise users can offer residential and business users traditional and enhanced communication services via the customer's broadband connection to the Internet or Local Area Network (LAN). The SPA1001 is very compact and ideal for home and office use. About the size of a deck of playing cards and weighing less than 80 grams (3 ounces), the SPA1001 comes with a full slate of advanced features. The SPA1001 features one RJ11 port for connection to an existing analog phone, fax machine, PBX or key system communication platform. The built-in RJ45 Ethernet interface connects the device to a home or office LAN. The SPA1001 can be configured via software controlled by the service provider and/or the end user. With the SPA1001, individuals and companies are able to protect and extend their past investments in telephones, conference speakerphones and fax machines as well as control their migration to IP with an extremely affordable, incremental investment. Installed by the end user and remotely provisioned, configured and maintained by the service provider, each SPA1001 converts voice traffic into data packets for transmission over an IP network. The SPA1001 can be used in consumer and business IP telephony service offerings including full-featured IP Centrex. The SPA1001 delivers clear sounding voice and reliable fax calling through its implementation of internationally recognized standards for voice and data networking. Toll Quality Voice and Carrier-Grade Feature Support The SPA1001 delivers clear, high-quality voice communication in a variety of network conditions. Excellent voice quality in challenging, changeable IP network environments is made possible via our advanced implementation of standard voice coding algorithms. The SPA1001 is interoperable with common telephony equipment like facsimile, voicemail, PBX/KTS and interactive voice response systems. Large-Scale Deployment and Management The SPA1001 offers all the key features and capabilities with which service providers can provide customized services to their subscribers. The SPA1001 can be remotely provisioned and supports dynamic, in-service software upgrades. A secure profile upload saves providers the time, expense and hassle of managing and pre-configuring or re-configuring customer premise equipment (CPE) for deployment. Ironclad Security The SPA1001 supports secure, encryption-based methods for communication, provisioning and servicing. Gateway features: - Dynamic Playload. - Adjustable Audio Frames per Packet. - Fax Tone Detection Pass-Through. - DTMF: In-band & Out-of-band (RFC 2833). - Flexible Dial Plan Support with Interdigit and IP Dialing. - Call Progress Tone Generation. - Jitter Buffer - Adaptive. - Full Duplex Audio. - Echo Cancellation - (G.165/G.168). - VAD - Voice Activity Detection with Silence Suppression. - Attenuation/Gain Adjustments. - Flash Hook Timer. - MWI - Message Waiting Indicator Tones. - VMWI - via FSK. - Polarity Control. - Music on Hold Client. - Streaming Audio Server - up to 10 Sessions.
Key Features
Linksys Phone Adapter + FXS Port. Voice codecs: G.711, G.723.1, G.726. Management protocols: HTTP, HTTPS, TFTP, Supported network protocols: IPv4, ARP, DHCP, ICMP, TCP, UDP, RTP, RTCP, SIPv2. Security algorithms: 256-bit AES. Power requirements: 100-240, 50/60, Power consumption (typical): 5 W. Weight: 76.5 g, Dimensions (WxDxH): 94 x 63 x 28 mm
